Burndy . YA1C-2N

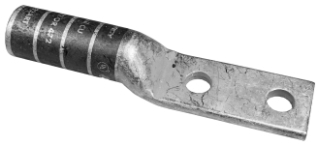

The Burndy YA1C2N is a Copper compression terminal with a long barrel design. It features two holes, a 1/2" stud hole size, and a 1-3/4" stud hole spacing. This terminal is suitable for conductors up to #1 AWG and has a 0.81" tongue width and 4.82" length. It is UL Listed and CSA certified for use up to 35 kV and 600 volts.
YA1C-2N In-Stock. Request a quote for the part number# YA1C-2N. Call 877-240-8595 to order. Same day shipping on in-stock parts.
Attributes
| Brand name, Manufacturer name, Manufacturer, Manufacturer Name, Brand Name | Burndy |
|---|---|
| UNSPSC | 39121405 |
| UPC | 78181050041 |
| Voltage | 600 Volt - 35 Kilo- |
| moq, multiple | 1 |
| MPN, Manufacturer Part Number | YA1C-2N |
| qtyInStock | 0 |
| SKU | 73787 |
| Country Of Origin | United States of America |
| Tongue Type | Straight, Standard |
| Voltage Rating | 600 Volt - 35 Kilo-Volt |
| Sub Brand | Hylug™ |
| Stud Size | 1/2 Inch |
| Standards | UL 486-A UL 486-B, CSA Certified, RoHS Compliant |
| Stud Hole Spacing | 1.75 |
| Energy Star Flag, Peep Hole, Insulation Material | No |
| GTIN | 00781810500415 |
| Tongue Size | 0.83 Inch Width x 0.12 Inch Thickness |
| RoHS Flag, Made In America | Yes |
| Color Code | Green |
| Strip Length | 1-7/16 Inch |
| Barrel Length | 1.38 |
| Barrel Type | Long, Chamfered, without Inspection Window |
| Conductor Size | 1 AWG |
| Die Code | 11/375 |
| Finish | Electro Tin Plated |
| Item Name | Compression Lug |
| Material | Copper |
| Number of Holes | 2.0000 |
| Overall Length | 4.82 |
| Temperature Rating | 194 deg F (90 deg C) |
