Parker

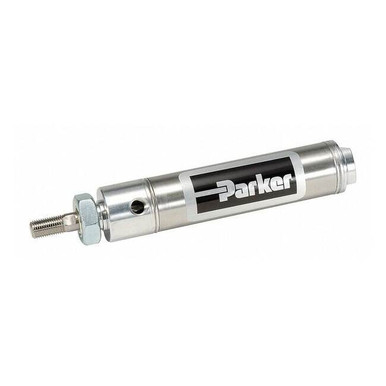

Round Air Cylinder 7/8 Inch Bore 2 Inch Stroke | 49J684 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.88DSR02.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J684
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.27
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width0.93
jsonUrlData924526ffbdad25e5923b
length5.44
moq, multiple, tierMinQty11
MPN0.88DSR02.00
qtyInStock16
qtyInStockOverride-2
SKUG6221302
tierPrice130.85
urlhttps://www.zoro.com/parker-air-cylinder-78-in-bore-2-in-stroke-round-body-double-acting-088dsr0200/i/G6221302/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingDouble Acting
Bore Dia, Air Cylinder Bore Dia7/8 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.25 in
Overall Length5.4 in
Rod Thread Length0.5 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke2 in
Mount, Air Cylinder MountNose
Port Size1/8 in FNPT
Air Cylinder TypeRound Body
FinishSilver
Rod Thread Size1/4-28 UNF
Dimension Kk1/4"-28 UNF
Dimension E0.62 in
Dimension B0.624 in
End Cap Material, Piston MaterialAluminum
Dimension J0.19 in
FeaturesNon-Switch Ready
Dimension A1/2 in
Temp Range-10 Degrees to 165 Degrees F
Dimension N1, Nose Mount Thread5/8"-18
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG622130211611 @ $30.85
Grainger49J68411
Raptor SuppliesAJ2EDM111 @ $62.45
sustainablesupply.comC16852471-211 @ $39.97
Radwell0.88DSR02.0011
simsupply.comZO-G62213021311 @ $49.75
