Miller Electric

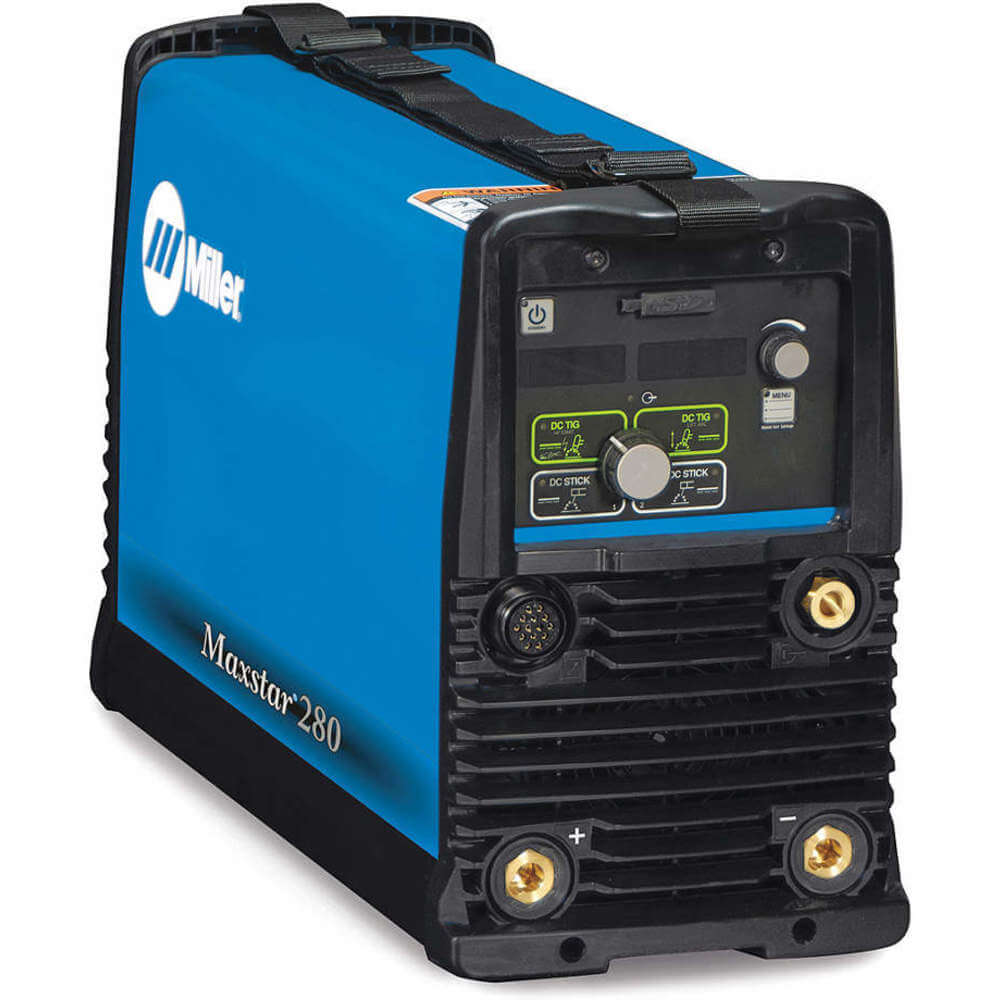

Tig Welder AC/DC 1 to 280A Maxstar | 35MC61 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Miller Electric . 907538

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMiller Electric
DimensionUnitinch
GraingerSku35MC61
UPC715959573085
UnitOfMeasureEA
Voltage, Input Voltage208 to 575V AC
Weight55.7
WeightUnitlbs
cali_prop65_cancercausechem, cali_prop65_reproharmcausechemLead
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario4
countryOfOriginUS
height17
jsonUrlData924526ffbdad25e5923b
length26.6
moq, multiple, qtyInStock, tierMinQty1, Welder Min Output Amps1
MPN, Model907538
qtyInStockOverride-2
SKUG9124175
tierPrice17827.41
urlhttps://www.zoro.com/miller-electric-tig-welder-maxstar-280-with-cps-series-208-to-575v-ac-280-max-output-amps-907538/i/G9124175/
width12.9
Promotion RestrictionNot eligible for promotion
ItemTIG Welder
Welder Industrial ClassMedium
Welding ProcessesPulsed TIG, Stick, TIG
Mild Steel - Material Thickness0.004 in to 3/8 in
Rated Output235A @ 19V
Welder Max Output Amps280
Welder Duty Cycle60 %
SeriesMaxstar 280
Power Source Weight47 lb
PolarityAC/DC
ApplicationAerospace, Boat / Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Input (Amps)28/26/15/13/10
Welder Input Phase1 or 3
Welded MaterialSteel
Overall Width8 5/8 in
Overall Height13 5/8 in
Includes(2) 50 mm Dinse style connectors, 8 ft (2.4 m) primary cord, Adjustable shoulder strap, Maxstar(R) 280
Welder Input Hz50/60
Overall Depth22 1/2 in
FeaturesBuilt-In Pulser, HF Arc Starting, Hot-Start(TM) for stick, Inverter-Based DC Power Source, Memory Card Expandable, Portable, Pro-Set(TM), Programmable HF Start Parameters, Stick-Stuck Detect
Plug TypeBare Leads
Max Input Current20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase)
Power Cord Length8 ft
Amperage Range1 to 280 A
For Maximum Material Thickness3/8 in (Steel)
TIG Welding Maximum Output Current, Stick Welding Maximum Output Current280 A
Open Circuit Voltage60V DC
Kit Includes, Welder Kit Type, Welder Type (Merch)Power Source Only
Welding ModeCC
TIG Welding Output @ Duty Cycle, Stick Welding Output @ Duty Cycle235 A @ 19 V, 60%
For Minimum Material Thickness0.004 in (Steel)
Max Amperage Range (TIG)150 A - 300 A
Input Voltage (Nominal)208V, 240V, 400V, 480V, 575V
Power Cord IncludedYes
Stick Welding Minimum Output Current, TIG Welding Minimum Output Current1 A
ColorBlue/Black
Rated Output at Duty Cycle (TIG)250 A @ 60%
Input Frequency50/60 Hz
For Material TypeSpecialty Metals, Stainless Steel, Steel
ProcessStick Welding (SMAW), TIG Welding (GTAW)
brand-mfr modelMILLER ELECTRIC - 907538
Process (Merch)GTAW, SMAW, CAC-A
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG91241751111 @ $7827.41
Grainger35MC6111
Raptor SuppliesAH4VDB111 @ $9227.28
gasandsupply.comMIL907538111 @ $6678.00
