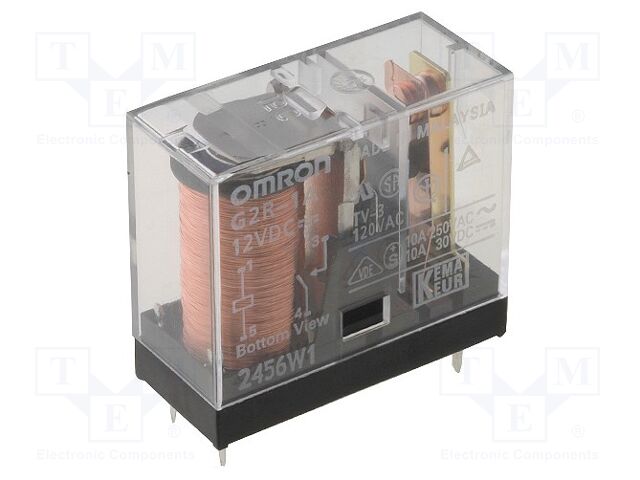

OMRON OCB G2R-1A 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A
OMRON OCB G2R-1A 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-1A 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 1af330ff5441a17ebada2985708c3a36. |
| jsonUrlData2 | 01ee781970a39e1f3847 |
| keywords | OMRON OCB, G2R-1A 12VDC, G2R-1A-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2R-1A 12VDC |
| qtyInStock | 0 |
| SKU | G2R-1A-12DC |
| snippet | OMRON OCB G2R-1A 12VDC | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 10 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.02 |
| tierPrice2 | 2.74 |
| tierPrice3 | 2.14 |
| tierPrice4 | 1.99 |
| tierPrice5 | 1.78 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 12V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil voltage min | 9.6V DC |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Mechanical durability | 20000000 cycles |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 30m? |
| Terminal pitch | 3.5mm |
| Coil current | 43.6mA |
| Enclosure description | standard seal |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1A-12DC | 1 | 1 | 1 @ $3.02, 5 @ $2.74, 25 @ $2.14, 100 @ $1.99, 500 @ $1.78 |
