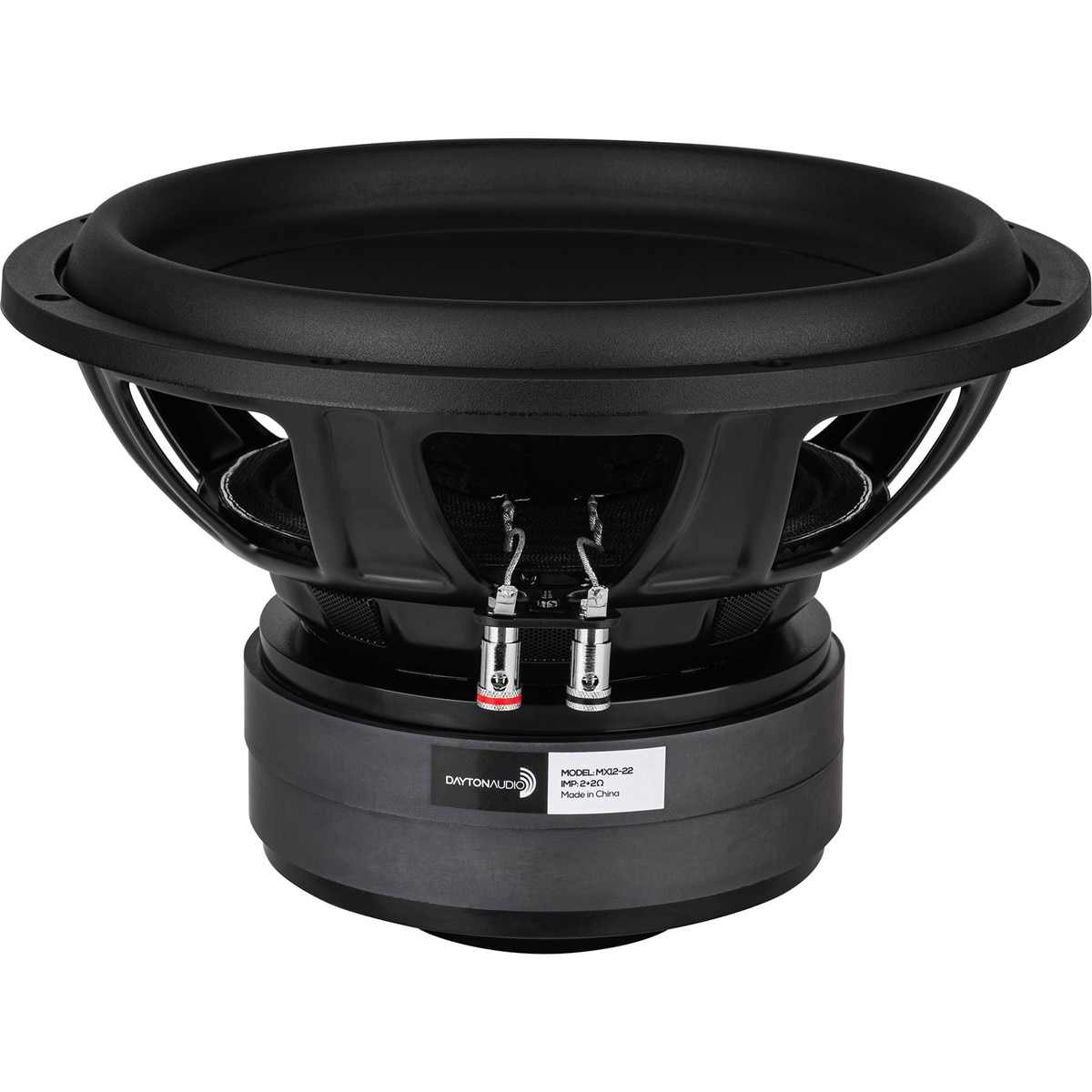

Dayton Audio MX12-22 12" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil

Dayton Audio MX12-22 12" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil. Part Number: 295-166 by Dayton Audio.

Dayton Audio . MX12-22

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio MX12-22 12" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil
UPC848791006425
Weight27.05
WeightUnitlbs
depth, length7.78
diameter, height, width12.43
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelMX12-22
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-166
snippetDayton Audio MX12-22 12" Max-X High Excursion DVC Subwoofer 2 Ohms Per Coil. Part Number: 295-166 by Dayton Audio.
tierMinQty24
tierMinQty310
tierMinQty450
tierPrice1149.98
tierPrice2145.18
tierPrice3140.53
tierPrice4137.51
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance4?
Frequency Response23 to 450Hz
Sensitivity89.4dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)28.8Hz
DC Resistance (Re)3.95?
Voice Coil Inductance (Le)5.09mH
Mechanical Q (Qms)3.25
Electromagnetic Q (Qes)0.39
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)1.61ft?
Mechanical Compliance of Suspension (Cms)0.12mm/N
BL Product (BL)21.5T?m
Diaphragm Mass Inc Airload (Mms)252g
Maximum Linear Excursion (Xmax)15.5mm
Surface Area of Cone (Sd)514.7cm?
Cone MaterialPaper / Glass Fiber
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.43"
Baffle Cutout Diameter11.18"
Depth7.78"
# Mounting Holes8
Sealed Volume1.9ft?
Sealed F366Hz
Vented Volume2.8ft?
Vented F327Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-1661-211 @ $149.98, 4 @ $145.18, 10 @ $140.53, 50 @ $137.51
