NX5032SD-13.225625M-STD-CSY-1 NDK America, Inc. | Crystals, Oscillators, Resonators | DigiKey

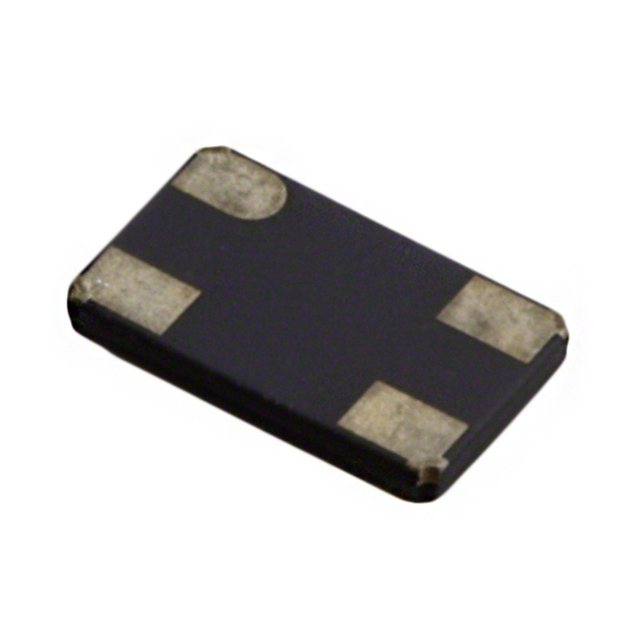

13.225625 MHz ?15ppm Crystal 12pF 120 Ohms 4-SMD, No Lead
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | NDK America, Inc. |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | NX5032SD-13.225625M-STD-CSY-1 NDK America, Inc. | Crystals, Oscillators, Resonators | DigiKey |
| atoms, moq, multiple | 1 |
| extraShipping, qtyInStock | 0 |
| height | 0.039 |
| height_Attrib | Height - Seated (Max) |
| MPN | NX5032SD-13.225625M-STD-CSY-1 |
| SKU | 1965873 |
| snippet | 13.225625 MHz ?15ppm Crystal 12pF 120 Ohms 4-SMD, No Lead |
| Category | Crystals, Oscillators, Resonators |
| Series | NX3225SC |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | MHz Crystal |
| Frequency | 13.225625 MHz |
| Frequency Stability | ?50ppm |
| Frequency Tolerance | ?15ppm |
| Load Capacitance | 12pF |
| ESR (Equivalent Series Resistance) | 120 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40?C ~ 125?C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.193" L x 0.122" W (4.90mm x 3.10mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1965873 | 1 | 1 | ||
| 644-1247-1-ND | 1 | 1 | |||
| Digi-Key | 4914490 | 1 | 1 | 1 @ $1.15 | |
| Digi-Key | 4914519 | 1 | 1 |
