AXE630124 Panasonic Electric Works | Connectors, Interconnects | DigiKey

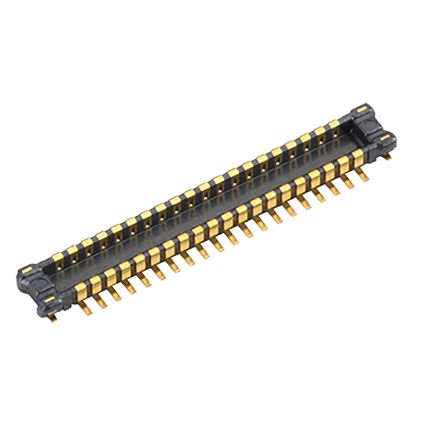

30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Panasonic Electric Works |
|---|---|
| DimensionUnit | mm |
| Extra Product Name | AXE630124 Panasonic Electric Works | Connectors, Interconnects | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.8 |
| height_Attrib | Mated Stacking Heights |
| MPN | AXE630124 |
| packaging | Cut Tape (CT) |
| qtyInStock | 6873 |
| SKU | 2048707 |
| snippet | 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold |
| tierMinQty10, tierMinQty8 | 1,000 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 50 |
| tierMinQty5 | 100 |
| tierMinQty6 | 250 |
| tierMinQty7 | 500 |
| tierMinQty9 | 2,500 |
| tierPrice1 | 1.54000 |
| tierPrice10, tierPrice8 | 0.85680 |
| tierPrice2 | 1.34200 |
| tierPrice3 | 1.28520 |
| tierPrice4 | 1.25660 |
| tierPrice5 | 1.19950 |
| tierPrice6 | 1.08528 |
| tierPrice7 | 0.99960 |
| tierPrice9 | 0.79968 |
| Category | Connectors, Interconnects |
| Series | A4S |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Connector Type | Header, Outer Shroud Contacts |
| Number of Positions | 30 |
| Pitch | 0.016" (0.40mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Solder Retention |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 0.8mm |
| Height Above Board | 0.026" (0.65mm) |
| Base Product Number | AXE630 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 2048707 | 1 | 6873 | 1 | 1 @ $1.54, 10 @ $1.34, 25 @ $1.29, 50 @ $1.26, 100 @ $1.20, 250 @ $1.09, 500 @ $1.00, 1000 @ $0.86, 2500 @ $0.80, 1000 @ $0.86 |
 Newark | 82AH1257 | 1 | 1 | 1 @ $1.54, 10 @ $1.46, 25 @ $1.33, 50 @ $1.19, 100 @ $1.08, 250 @ $0.91, 500 @ $0.80 | |
| RS Online | 1790992 | 1 | 1 | ||
| 179-0992 | 1 | 1 | 1 @ $2.57, 25 @ $2.31, 100 @ $2.10, 250 @ $2.00, 500 @ $1.83 | ||
| Newark | 29X3163 | 5000 | 5000 | 4000 @ $1.58, 8000 @ $1.47, 12000 @ $1.42, 20000 @ $1.40 | |
| Digi-Key | 2793940 | 1 | 16836 | 1 | 1 @ $1.54, 10 @ $1.34, 25 @ $1.29, 50 @ $1.26, 100 @ $1.20, 250 @ $1.09, 500 @ $1.00, 1000 @ $0.86, 2500 @ $0.80, 5000 @ $0.76 |
| RS Delivers | 179-0077 | 1 | 1 | 1 @ $1.60 | |
| RS Online | 1790077 | 1 | 1 | ||
| us.rs-online.com | 74612987 | 5000 | 5000 | 5000 @ $2.16 | |
| JT28-AXE630124 | 1 | 57746 | 1 |
