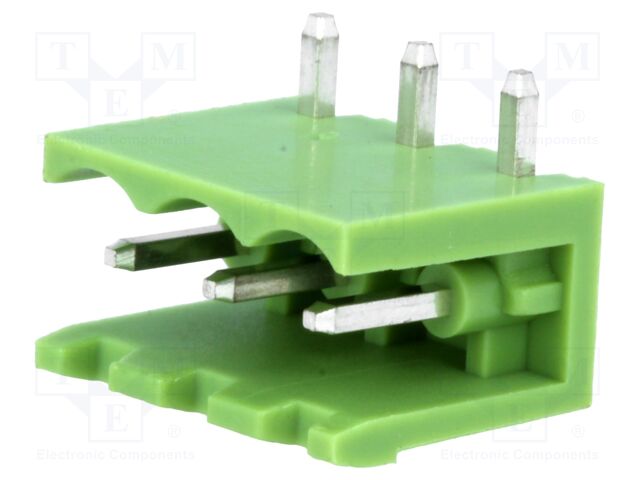

XINYA XY2500R-A(5.0)-3P | Pluggable terminal block; Contacts ph: 5mm; ways: 3; angled 90?
XINYA XY2500R-A(5.0)-3P | Pluggable terminal block; Contacts ph: 5mm; ways: 3; angled 90
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500R-A(5.0)-3P | Pluggable terminal block; Contacts ph: 5mm; ways: 3; angled 90? |
| atoms | 1 |
| height | 8.4 |
| height_Attrib | Height |
| jsonUrlData | 43b989e29fae9166d6be2ab0f16af767. |
| jsonUrlData2 | 2b189a1c3649750515ca |
| keywords | XINYA, XY2500R-A(5.0)-3P, TBG-5.0-KB-3P, Connectors, Power connectors, Terminal blocks, Pluggable terminal blocks |
| moq, multiple, tierMinQty1 | 10 |
| MPN | XY2500R-A(5.0)-3P |
| qtyInStock | 12782 |
| SKU | TBG-5.0-KB-3P |
| snippet | XINYA XY2500R-A(5.0)-3P | Pluggable terminal block; Contacts ph: 5mm; ways: 3; angled 90 |
| tierMinQty2 | 50 |
| tierMinQty3 | 200 |
| tierMinQty4 | 600 |
| tierMinQty5 | 2000 |
| tierPrice1 | 0.149 |
| tierPrice2 | 0.119 |
| tierPrice3 | 0.1038 |
| tierPrice4 | 0.0891 |
| tierPrice5 | 0.0744 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5mm |
| Number of ways, Number of pins | 3 |
| Spatial orientation | angled 90? |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Connector pinout layout | 1x3 |
| Current rating | 15A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | friction lock |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Connector variant | without side walls |
| Height | 8.4mm |
| Connectors features | assembling possibility |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5.0-KB-3P | 10 | 12782 | 10 | 10 @ $0.15, 50 @ $0.12, 200 @ $0.10, 600 @ $0.09, 2000 @ $0.07 |
