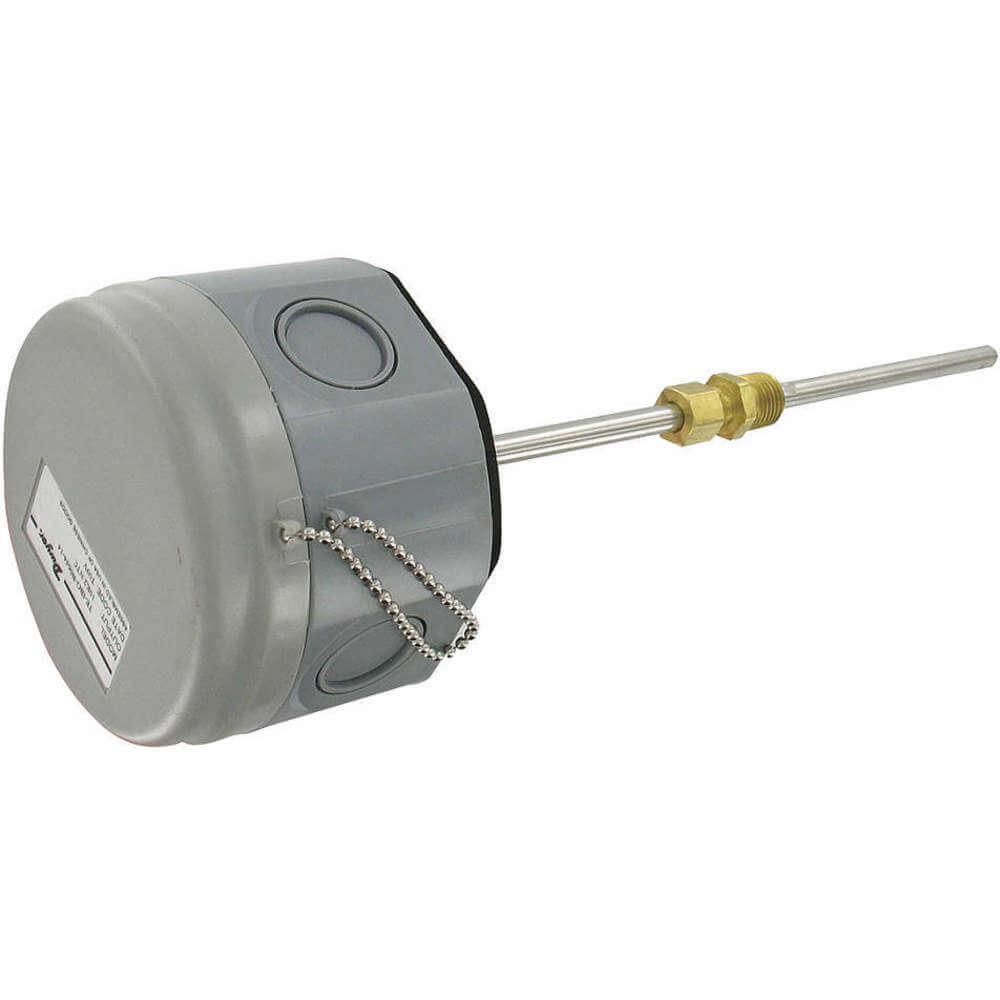

Immersion Sensor, 10k Ohm, Type 3, 6 Inch Length | 6CUD2 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Dwyer Instruments . TE-IBG-A0644-14

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDwyer Instruments
DimensionUnitinch
GraingerSku6CUD2
UPCNone
UnitOfMeasureEA
Weight0.4
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height3
jsonUrlData924526ffbdad25e5923b
length9
moq, multiple, qtyInStock, tierMinQty11
MPNTE-IBG-A0644-14
qtyInStockOverride-2
SKUG5784843
tierPrice117.43
urlhttps://www.zoro.com/dwyer-instruments-immersion-probe-10k-ohm-type-3-6-in-l-te-ibg-a0644-14/i/G5784843/
width12
ItemImmersion Temperature Probe
Primary Measuring Element, Sensor TypeThermistor
Probe Temp Measuring Element10K Ohm Thermistor
Temp Range (F)-40 Degrees to 302 Degrees
Probe Contact Material, Probe Material, Head Material, Probe Sheath Material304 Stainless Steel
Probe Connection Type, Probe Connector, Connector TypeCustom
Probe Wire Length4 in
Probe Length6 in
IncludesHousing
Temperature Measuring Element10K Ohm Type 3 Thermistor
UseAir or Liquids
Probe Dia1/4 in
Accuracy+/-0.28 Degrees F at 32 Degrees F/ +/-0.15 Degrees C at 0 Degrees C, +/-0.4 Degrees F at 77 Degrees F/ +/-0.22 Degrees C at 25 Degrees C
Temp Range (C)-40 Degrees to 150 Degrees
Process Connection1/4 in NPT, Compression Fitting
Manufacturers Warranty Length, Manufacturer Warranty Length1 yr
Wire Length4"
Resistance10,000 ohm
Maximum Temperature C, Maximum Temperature ?C150 Degrees C
Probe Diameter0.25 in
Probe Size1/4 in x 6 in
For Gases, For Air, For Liquids and GelsYes
Fitting TypeCompression
Cable Length4 ft
Thermistor Type2-Wire
Includes Signal Converter, For Solids, For SurfacesNo
Process Mounting1/2 in NPT, 1/4 in NPT Compression Fitting
Temperature Range-40 Degrees to 302 Degrees F/-40 Degrees to 150 Degrees C
For ApplicationAHU Monitoring, Building Automation, Chiller or Boiler Loops, VAV Temperature Sensing
Head Connection0.875 Conduit Knock Out
Maximum Temperature F, Maximum Temperature ?F302 Degrees F
Probe BendStraight
Minimum Temperature C, Minimum Temperature ?C-40 Degrees C
Minimum Temperature F, Minimum Temperature ?F-40 Degrees F
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG57848431111 @ $17.43
Raptor SuppliesAE8FAJ111 @ $46.71
Grainger6CUD211
