A-912MK2 UL

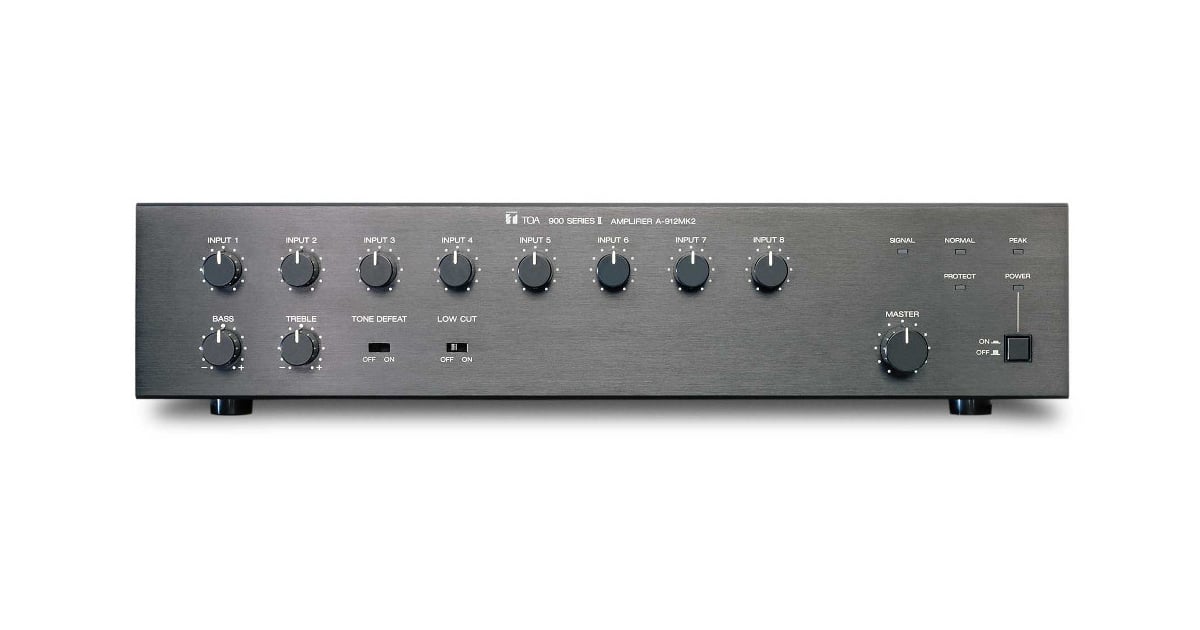

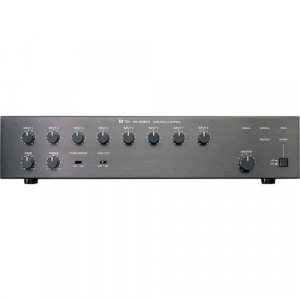

TOA A-912MK2 Modular 8-channel Mixer Power Amplifier, 120V/60Hz, Individual Channel and Master Volume Controls, Bass/Treble Tone Controls, Dual Mute Bus, Overcurrent and Thermal Protection Circuitry The TOA 900 Series are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical - such as in paging and music distribution for airport, hospital, and industrial sound systems - you can count on the TOA 900 Series to perform consistently, day-in and day-out. The A-912MK2 (120 W) Modular Mixer/Amplifiers are engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation Key Features: - 8 module slots allow you to easily configure custom configurations choosing from over fifty TOA plug-in modules with an extensive array of features and connector types. You can increase the input capacity by connecting a second mixer or mixer/amplifier to the rear-panel Bridge In/Out jack - 25 V, 70 V and 4 Ohm Transformer isolated speaker Outputs with screw terminal connector and protective cover plate - Direct low-impedance output mode - Dual mute bus allows multiple levels of paging priority - Individual Channel and Master Volume Controls - Bass/Treble Tone Controls with tone defeat switch - Rear panel AC convenience outlet Specifications: - Type: 8-channel mixer power amplifier - Power Requirement: AC mains, 120V, 60Hz - Power Consumption: 180W - Output Power: 120W RMS - Frequency Response: (D) 20 - 20k Hz, ±1 dB; (T) 20 - 15k Hz, ±1 dB; (T) 20 - 20k Hz, +1 dB / -3 dB - Inputs: 8 input ports: every port accepts any input module; 1 Bridging Input/Output - Overall Dimensions (WxHxD): 16.5 x 3.9 x 14.1 inches - Weight: 25 pounds

MIXER/AMPLIFIER, MODULAR, 120 W, 8 MODULE PORTS, BLACK (2U) THE TOA 900 SERIES are widely recognized as the industry standard in installed sound system amplification. When reliability and performance are critical – such as in paging and music distribution for airport, hospital, and industrial sound systems – you can count on the TOA 900 Series to perform consistently, day-in and day-out. High Performance The A-903MK2 (30 W), A-906MK2 (60 W) and A-912MK2 (120 W) Modular Mixer/Amplifiers are engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation. Modular Design Eight module slots allow you to easily configure custom configurations choosing from over fifty TOA plug-in modules with an extensive array of features and connector types. You can increase the input capacity by connecting a second mixer or mixer/amplifier to the rear-panel Bridge In/Out jack. Versatile Features Outputs include transformer isolated 25 V, 70 V and 8 ohm (A-903MK2: 4 ohm) plus a direct low-impedance mode if non-transformer operation is required. Multiple paging priorities are easily configured using optional mute-type modules activated by external switch-closure or mute-send modules. Pre-Out/Power-In jacks allow connection of external signal processing between the mixer and amplifier sections. Other features include protection circuitry, auxiliary output, bass/treble controls and remote master volume terminals. The 900 Series Mixer/Amplifiers are UL and cUL Listed and carry a five year warranty.

TOA A-912MK2 8-Channel 120 watt Modular Mixer Amplifier
