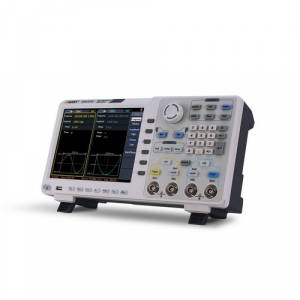

Buy Owon XDG3202, 2-CH 200MHz Arbitrary Waveform Generator 200MHz - Prime Buy

Owon . XDG3202

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerOwon
ConditionNEWCONDITION
DimensionUnitm
Extra Product NameBuy Owon XDG3202, 2-CH 200MHz Arbitrary Waveform Generator 200MHz - Prime Buy
Weight2.50
WeightUnitkg
Weight_AttribWeight (without package)
length2.0
length_AttribWaveform Length
moq, multiple, tierMinQty11
MPN, SKUXDG3202
qtyInStock-2
qtySourceFieldMap
tierPrice11089.00
Channel2
Frequency Output200MHz
Sample Rate1.25GSa/s
Vertical Resolution14 bits
Standard Waveformsine, square, pulse, ramp, noise, and harmonic
Arbitrary Waveformexponential rise, exponential fall, sin(x)/x, step wave, and others,
Noise120MHz (-3dB, typical)
Accuracy±1ppm, 0°C - 40°C
Total Harmonic Distortion?0.05 %, 10 Hz to 20 kHz, 1 Vpp
Rise/Fall Time<5ns
Overshoot<3%
Duty Cycle50.0% (fixed)
Jitter (rms)300ps + 100ppm
Pulse Width12ns - 996875s
Leading/Trailing Edge Time>=7ns
Linearity≤1% of peak output (typical, 1kHz, 1 Vpp, 50% symmetry)
Symmetry0% to 100%
Harmonic Order≤16
Harmonic Typeeven, odd, all, user
Waveform Length2 points - 1M points
Minimum Rise/Fall Time<7ns
TypeAM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, sweep, and burst
Carrier Waveformsine, square, ramp, and arbitrary (except DC)
Sourceinternal / external
Modulating Waveformsine, square, ramp, noise, and arbitrary
Depth0.0% - 100.0%
Modulating Frequency2 mHz - 100 kHz
Display8"800 x 600 pixels touch screen LCD
Communication InterfaceUSB Host, USB Device, and LAN
Dimension (WxHxD)340 x 177 x 90 (mm)
Weight (without package)2.50kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
primebuy.comXDG32021-211 @ $1089.00
