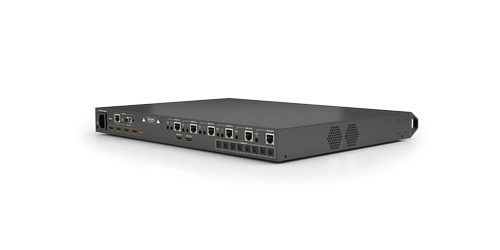

WyreStorm MXV-0408-H2A 4K 4x8 HDMI Input HDBaseT Output Matrix Switcher - Conference Room AV
Shop for WyreStorm MXV-0408-H2A 4K 4x8 HDMI Input HDBaseT Output Matrix Switcher and other Matrix Switchers with the best prices, free shipping and customer reviews from ConferenceRoomAV.com
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | WYRESTORM |
|---|---|
| KnownMan, Extra Product Name | WyreStorm MXV-0408-H2A 4K 4x8 HDMI Input HDBaseT Output Matrix Switcher - Conference Room AV |
| Weight | 11.75 |
| WeightUnit | lbs |
| Weight_Attrib | Weight |
| moq, multiple, tierMinQty1 | 1 |
| MPN, SKU | MXV-0408-H2A |
| qtyInStock | 0 |
| snippet | Shop for WyreStorm MXV-0408-H2A 4K 4x8 HDMI Input HDBaseT Output Matrix Switcher and other Matrix Switchers with the best prices, free shipping and customer reviews from ConferenceRoomAV.com |
| tierPrice1 | 2450.00 |
| Inputs: 4x HDMI In | 19-pin type A |
| Outputs: 6x HDBT Out: 8-pin RJ-45 Female, 8x S/PDIF Out: TOSLINK (Digital Optical), 2x HDMI Outl Output Video Encoding | HDBaseT Class B |
| Encoding Data Rate | 9.2Gbps |
| Content up to 4K/60 4:4 | 4 & RGB 8-bit |
| HD Multichannel audio up to DTS | X and Dolby Atmos™ to all outputs |
| Proprietary compression algorithm enables 60Hz 4K UHD content (4:4 | 4 or HDR) to be sent over HDBaseT to 35m/115ft |
| Audio Formats Analog: 2ch Analog, S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5 1ch, HDMI | 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X |
| Video Resolutions: Up to 4k60 4:4 | 4 at 131ft over Cat6a/7 |
| Supported Standards | DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100 |
| HDMI | HDMI 2.0 | HDCP 2.2 | EDID Input supports DVI/D and DisplayPort Dual-Mode (DP++) v1.3 with adapter (not included) |
| HDBaseT | HDMI 2.0 | HDCP 2.2 | EDID | 1-way PoH | Bidirectional IR |
| CEC | CEC power triggering | Requires CEC compatibility | HDMI outputs only |
| IR: 6x IR RX: 3 5mm (1/8in) TRS Stereo | 4x IR TX | 3.5mm (1/8in) TS Mono | Bidirectional over HDBaseT |
| RS-232: 1x RS-232 | 9-pin DB9 Female | Matrix Control | Telnet commands supported |
| Ethernet: 1x LAN | 8-pin RJ-45 Female | Web UI | Matrix Control |
| Dimensions | 1.72" x 17.33" x 13" |
| Warranty | 5 Years |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MXV-0408-H2A | 1 | 1 | 1 @ $2450.00 | ||
| avalive.com | 304214 | 1 | -2 | 1 | 1 @ $3435.00 |
| exertisalmo.com | MXV-0408-H2A | 1 | 1 |
