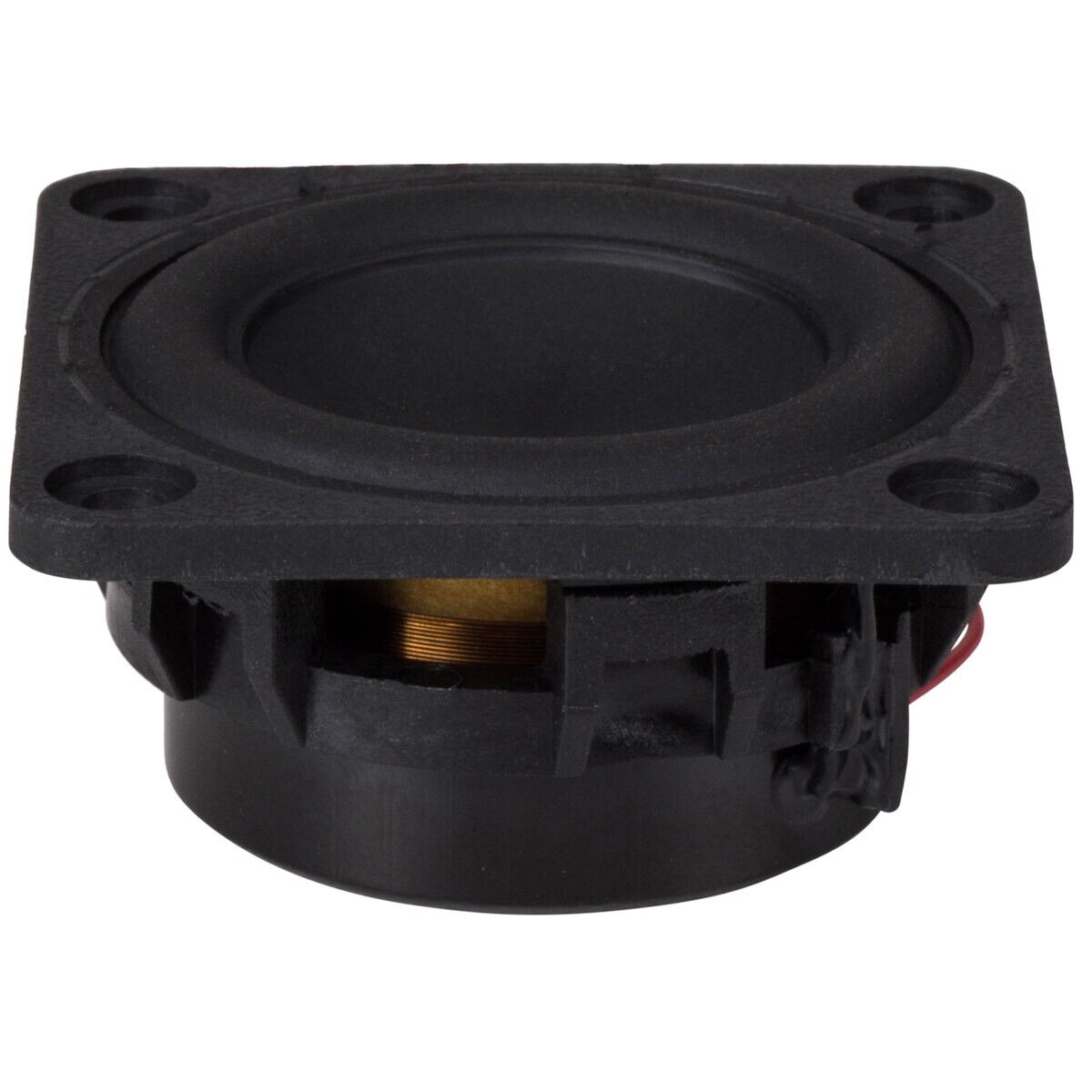

Tang Band W1-1070SH 1" Full Range Driver

Tang Band W1-1070SH 1" Full Range Driver. Part Number: 264-863 by Tang Band.

Tang Band . W1-1070SH

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandTang Band
DimensionUnitinch
Extra Product NameTang Band W1-1070SH 1" Full Range Driver
UPC848864019550
Weight0.15
WeightUnitlbs
depth, length0.827
diameter, height, width1.69
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW1-1070SH
qtyInStock-2
qtySourceFieldMap
SKU, Part Number264-863
snippetTang Band W1-1070SH 1" Full Range Driver. Part Number: 264-863 by Tang Band.
Unit of MeasureEach
Nominal Diameter1"
Bolt Circle Diameter1.89
Power Handling (RMS)4 Watts
Power Handling (MAX)8 Watts
Impedance8?
Frequency Response170 to 20,000Hz
Sensitivity81dB 2.83V/1m
Resonant Frequency (Fs)170Hz
DC Resistance (Re)6?
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)2.22
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.42
Compliance Equivalent Volume (Vas)0.00365ft?
Mechanical Compliance of Suspension (Cms)1.007mm/N
BL Product (BL)3.24T?m
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)8.5cm?
Cone Material, Voice Coil FormerAluminum
Surround MaterialSantoprene?
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter1.69"
Baffle Cutout Diameter1.57"
Depth0.827"
# Mounting Holes4
Sealed Volume, Vented Volume0.014ft?
Sealed F3355.7Hz
Vented F3136.1Hz
