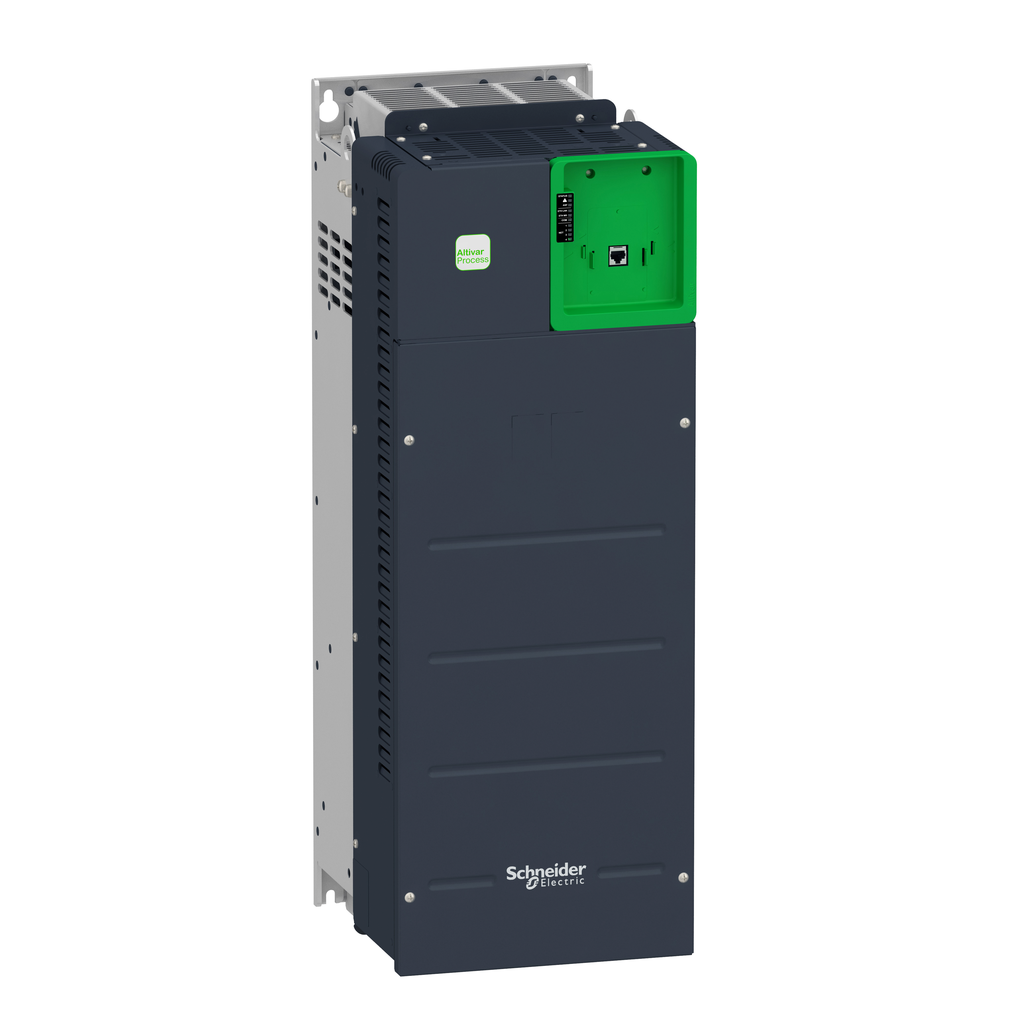

| Extra Product Name | Variable speed drive, Altivar Process ATV600, ATV630, cabinet Integration, IP00, 55 kW, 380...480 V, for US | Mayer Electric |
|---|
| UPC | 3606489739980 |
|---|
| Weight | 52.6 |
|---|
| WeightUnit | kg |
|---|
| Weight_Attrib | Net Weight |
|---|
| depth, length | 307.0 |
|---|
| height | 748.0 |
|---|
| height_Attrib | Height |
|---|
| jsonUrlData | /Product/SQUARE-D-Variable-speed-drive-Altivar-Process-ATV600-ATV630-cabinet-Integration-IP00-55-kW-380-480-V-for-US-3606489739980 |
|---|
| jsonUrlData2 | d27ead4e-af85-43f1-b39b-aeea0054cace |
|---|
| length_Attrib | Depth |
|---|
| moq, multiple, tierMinQty1, Quantity Per Set | 1 |
|---|
| MPN, SKU | SQDATV630D55N4ZU |
|---|
| qtyInStock, Discrete Output Number | 0 |
|---|
| tierPrice1 | 8414.15 |
|---|
| width | 265.0 |
|---|
| width_Attrib | Width |
|---|
| Prospective Line Isc | 50 kA |
|---|
| Product Destination | asynchronous motors || synchronous motors |
|---|
| Line Current | 97.2 A 380 V normal duty) || 84.2 A 480 V normal duty) || 81.4 A 380 V heavy duty) || 71.8 A 480 V heavy duty) |
|---|
| Emc Filter | integrated 50 m EN/IEC 61800-3 category C3 || with EMC plate option |
|---|
| Range Of Product | Altivar Process ATV600 |
|---|
| Speed Drive Output Frequency | 0.1-500 Hz |
|---|
| Asynchronous Motor Control Profile | constant torque standard || variable torque standard || optimized torque mode |
|---|
| Variant | standard version |
|---|
| Ip Degree Of Protection | IP20IEC 61800-5-1 || IP00 at bottom terminals)IEC 60529 |
|---|
| Product Or Component Type | variable speed drive |
|---|
| Apparent Power | 70 kVA 480 V normal duty) || 59.7 kVA 480 V heavy duty) |
|---|
| Motor Power Kw | 55 kW normal duty) || 45 kW heavy duty) |
|---|
| Switching Frequency | 2.5...8 kHz with derating factor || 2...8 kHz adjustable |
|---|
| [Us] Rated Supply Voltage | 380...480 V |
|---|
| Maximum Transient Current | 116.6 A 60 s normal duty) || 132 A 60 s heavy duty) |
|---|
| Communication Port Protocol | Ethernet || Modbus serial || Modbus TCP |
|---|
| Discrete Input Logic | 16 preset speeds |
|---|
| Type Of Cooling | forced convection |
|---|
| Continuous Output Current | 106 A 2.5 kHz normal duty || 88 A 2.5 kHz heavy duty |
|---|
| Product Specific Application | process and utilities |
|---|
| Safety Function | STO (safe torque off) SIL 3 |
|---|
| Nominal Switching Frequency | 2.5 kHz |
|---|
| Maximum Horse Power Rating | 75 hp normal duty || 60 hp heavy duty |
|---|
| Device Short Name | ATV630 |
|---|
| Supply Frequency | 50...60 Hz - 5...5 % |
|---|
| Synchronous Motor Control Profile | permanent magnet motor || synchronous reluctance motor |
|---|
| Electrical Connection | control removable screw terminals 0.5...1.5 mm? AWG 20...AWG 16 || line side screw terminal 70...120 mm? AWG 1/0...250 kcmil || motor screw terminal 70...120 mm? AWG 1/0...250 kcmil |
|---|
| Maximum Output Frequency | 500 kHz |
|---|
| Height | 748 mm |
|---|
| Acceleration And Deceleration Ramps | linear adjustable separately from 0.01...9999 s |
|---|
| Transmission Frame | RTU |
|---|
| Relay Output Number, Analogue Input Number | 3 |
|---|
| Exchange Mode | half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
|---|
| Data Format | 8 bits, configurable odd, even or no parity |
|---|
| Power Range | 55-100 kW 380-440 V 3 phase || 55-100 kW 480-500 V 3 phase |
|---|
| Phase | 3 phase |
|---|
| Net Weight | 52.6 kg |
|---|
| Type Of Polarization | no impedance |
|---|
| Relay Output Type | configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles |
|---|
| Frequency Resolution | display unit 0.1 Hz || analog input 0.012/50 Hz |
|---|
| Accuracy | +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 ?C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 ?C analog output |
|---|
| Connector Type | RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial |
|---|
| Input Compatibility | DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2 |
|---|
| Permissible Temporary Current Boost | 1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty) |
|---|
| Motor Slip Compensation | not available in permanent magnet motor law || can be suppressed || automatic whatever the load || adjustable |
|---|
| Mounting Mode | cabinet mount |
|---|
| Analogue Output Number, Pollution Degree | 2 |
|---|
| Physical Interface | Ethernet || 2-wire RS 485 |
|---|
| Minimum Switching Current | relay output R1, R2, R3 5 mA 24 V DC |
|---|
| Method Of Access | slave Modbus TCP |
|---|
| Refresh Time | relay output R1, R2, R3)5 ms +/- 0.5 ms) |
|---|
| Enclosure Mounting | with heat sink |
|---|
| Isolation | between power and control terminals |
|---|
| Discrete Input Number | 8 |
|---|
| Local Signalling | for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) |
|---|
| Linearity Error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output |
|---|
| Number Of Addresses | 1-247 Modbus serial |
|---|
| Width | 265 mm |
|---|
| Transmission Rate | 10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
|---|
| Braking To Standstill | by DC injection |
|---|
| Depth | 307 mm |
|---|
| Sampling Duration | 2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output |
|---|
| Rohs Exemption Information, Mercury Free | Yes |
|---|
| Environmental Disclosure | ENVPEP2007013EN |
|---|
| Sustainable Offer Status | Green Premium product |
|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
|---|
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
|---|
| China Rohs Regulation | X |
|---|
| Circularity Profile | ENVEOLI2007013EN |
|---|
| Upgradeability | Upgraded components available |
|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|
| Product Certifications | CSA || UL || DNV-GL || ATEX INERIS || ATEX zone 2/22 || T?V |
|---|
| Power Dissipation In W | natural convection 131 W 380 V 2.5 kHz || forced convection 917 W 380 V 2.5 kHz |
|---|
| Standards | UL 508C || EN/IEC 61800-3 || EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 |
|---|
| Ambient Air Temperature For Operation | -15-50 ?C without derating) || 50-60 ?C with derating factor) |
|---|
| Volume Of Cooling Air | 295 m3/h |
|---|
| Insulation Resistance | > 1 MOhm 500 V DC for 1 minute to earth |
|---|
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
|---|
| Marking | CE |
|---|
| Vibration Resistance | 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6 |
|---|
| Noise Level | 62.4 dB 86/188/EEC |
|---|
| Regulation Loop | adjustable PID regulator |
|---|
