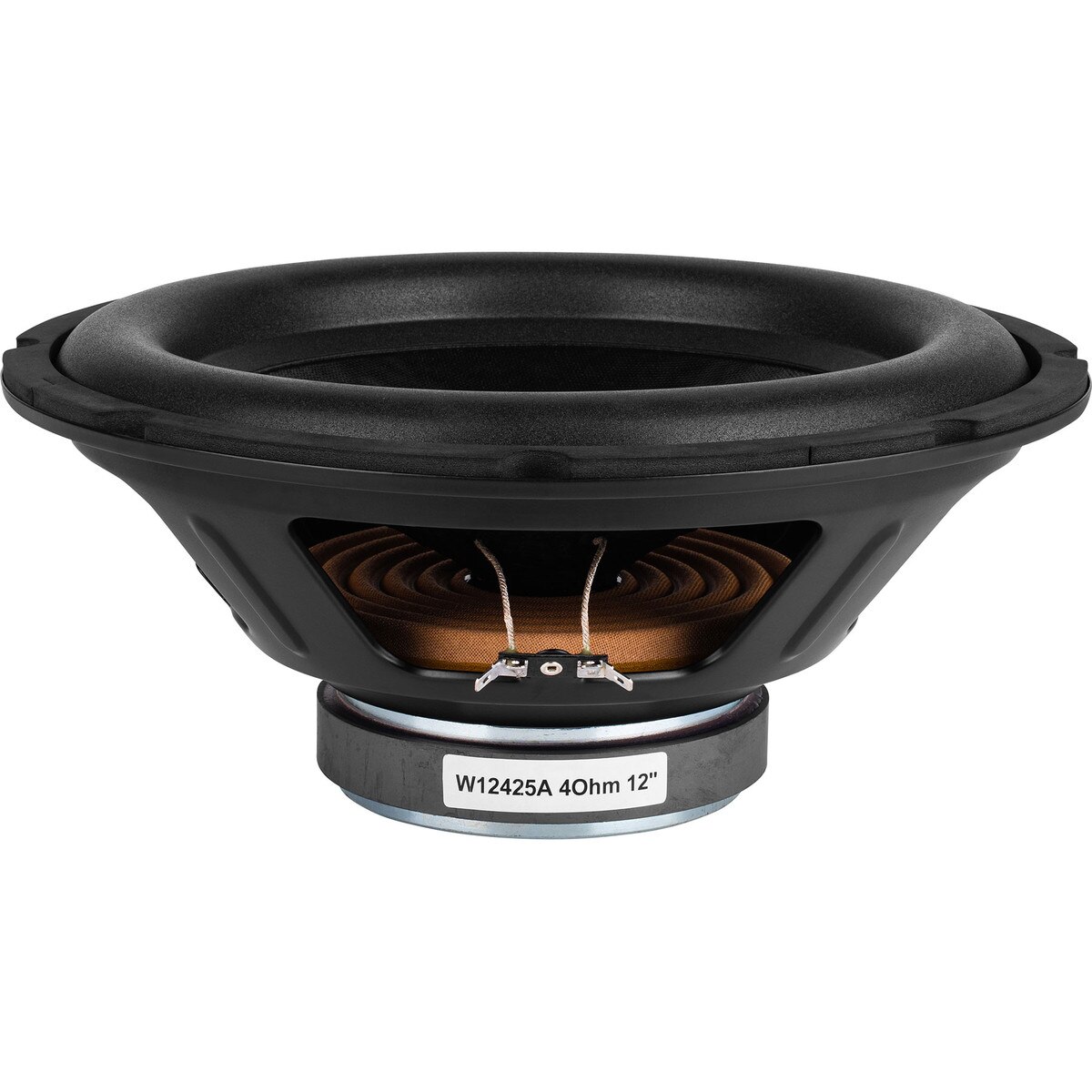

12" High Excursion Paper Cone Subwoofer Driver 4 Ohm

12" High Excursion Paper Cone Subwoofer Driver 4 Ohm. Part Number: 299-629 by Dayton Audio.

Dayton Audio . 299-629

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product Name12" High Excursion Paper Cone Subwoofer Driver 4 Ohm
UPC848791007392
Weight7.7
WeightUnitlbs
depth, length5.5
diameter, height, width12.25
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, SKU, Part Number299-629
qtyInStock0
snippet12" High Excursion Paper Cone Subwoofer Driver 4 Ohm. Part Number: 299-629 by Dayton Audio.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)120 Watts
Power Handling (MAX)240 Watts
Impedance4?
Frequency Response25 to 700Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter1.5"
Resonant Frequency (Fs)31.7Hz
DC Resistance (Re)3.88?
Voice Coil Inductance (Le)2.07mH
Mechanical Q (Qms)7.68
Electromagnetic Q (Qes)0.82
Total Q (Qts)0.74
Compliance Equivalent Volume (Vas)2.76ft?
Mechanical Compliance of Suspension (Cms)0.248mm/N
BL Product (BL)9.79T?m
Diaphragm Mass Inc Airload (Mms)101.6g
Maximum Linear Excursion (Xmax)7.25mm
Surface Area of Cone (Sd)471cm?
Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.25"
Baffle Cutout Diameter11.125"
Depth5.5"
# Mounting Holes8
Sealed Volume4.74ft?
Sealed F337Hz
Vented Volume9.1ft?
Vented F319.5Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com299-62911
