Burndy . YA38-2N-FXB

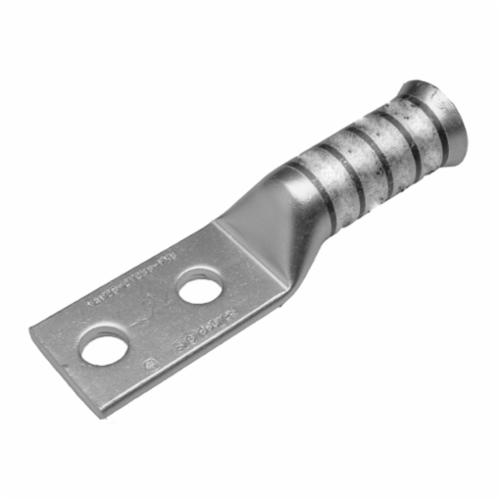

The Burndy YA382N-FXB is a two-hole belled long barrel lug designed for use with 1325/24, 535.3 kcmil conductors. It features a copper compression terminal and is rated for 90 degrees C, 600 Volts to 35 kV. This product is UL listed and CSA certified, meeting industry standards for safety and performance. The lug has a 7.01-inch length, 1/2-inch stud hole size, and 1.84-inch tongue width.
Electro-Tin Plated Copper Material; Pink Color; 7.01 Inch Overall Length; 3.08 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating
Attributes
| Brand name, Manufacturer name, Manufacturer, Manufacturer Name, Brand Name | Burndy |
|---|---|
| UNSPSC | 39121405 |
| UPC | 78181003993 |
| Voltage | 600 Volt - 35 Kilo- |
| moq, multiple | 1 |
| MPN, Manufacturer Part Number | YA38-2N-FXB |
| qtyInStock | 0 |
| SKU | 240021 |
| Country Of Origin | United States of America |
| Tongue Type | Straight, Standard |
| Voltage Rating | 600 Volt - 35 Kilo-Volt |
| Sub Brand | Hylug™ |
| Stud Size | 1/2 Inch |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Stud Hole Spacing | 1.75 |
| Energy Star Flag, Peep Hole, Insulation Material | No |
| GTIN | 00781810039939 |
| Tongue Size | 1.84 Inch Width x 0.26 Inch Thickness |
| RoHS Flag, Made In America | Yes |
| Color Code | Pink |
| Strip Length | 3-3/16 Inch |
| Barrel Length | 3.08 |
| Barrel Diameter | 1.25 Inch |
| Barrel Type | Long, Belled End |
| Conductor Size | 500 KCMIL Stranded Copper |
| Die Code | L99 |
| Finish | Electro Tin Plated |
| Item Name | Compression Lug |
| Material | Copper |
| Mounting | 0.52 Inch Hole Dia |
| Number of Holes | 2.0000 |
| Overall Length | 7.01 |
| Temperature Rating | 194 deg F (90 deg C) |
