TLP2451A(TP,F) Toshiba Semiconductor and Storage | Isolators | DigiKey

600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 8-SO

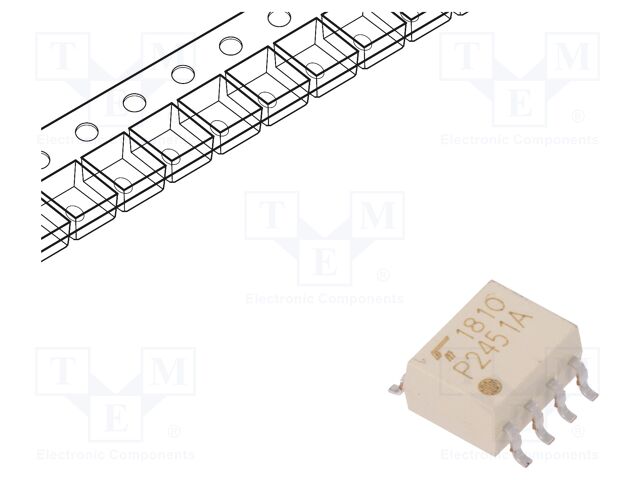

Toshiba Semiconductor and Storage . TLP2451A(TP,F)

Attributes

Brand name, Manufacturer name, Manufacturer, MfrToshiba Semiconductor and Storage
Extra Product NameTLP2451A(TP,F) Toshiba Semiconductor and Storage | Isolators | DigiKey
atoms, moq, multiple, Number of Channels1
extraShipping, qtyInStock0
MPNTLP2451A(TP,F)
SKU5189863
snippet600mA Gate Driver Optical Coupling 3750Vrms 1 Channel 8-SO
CategoryIsolators
Series-
PackageTape & Reel (TR)
Product StatusActive
TechnologyOptical Coupling
Voltage - Isolation3750Vrms
Common Mode Transient Immunity (Min)20kV/?s
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)350ns
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low400mA, 400mA
Current - Peak Output600mA
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)25 mA
Voltage - Output Supply10V ~ 30V
Operating Temperature-40?C ~ 125?C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO
Approval AgencyCSA, cUL, UL
Base Product NumberTLP2451

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key518986311
TMETLP2451A-TP.F1411 @ $1.13, 5 @ $1.06, 25 @ $0.99, 100 @ $0.92
Win SourceTLP2451A(TP,F)1160001
HotendaH2721527111 @ $0.55
Digi-Key518980711
Digi-Key518983511
