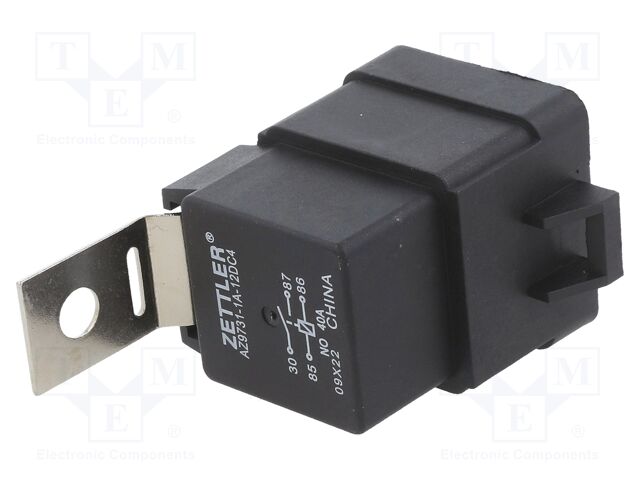

ZETTLER AZ9731-1A-12DC4 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive
ZETTLER AZ9731-1A-12DC4 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotiv
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Automotive Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ9731-1A-12DC4 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotive |
| atoms | 1 |
| jsonUrlData | 85f7ba10aab1eebe34a2c4132f48de55. |
| jsonUrlData2 | 4b2e1decbb1819e340e7 |
| keywords | ZETTLER, AZ9731-1A-12DC4 |
| moq, multiple, tierMinQty1 | 1000 |
| MPN, SKU | AZ9731-1A-12DC4 |
| qtyInStock | 0 |
| snippet | ZETTLER AZ9731-1A-12DC4 | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; automotiv |
| tierPrice1 | 1.41 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 12V DC |
| Contact current max | 40A |
| DC contacts rating @R | 40A / 14V DC |
| Relay variant | automotive |
| Coil resistance | 90? |
| Contact material | AgSnO |
| Operating temperature | -40...125?C |
| Body dimensions | 67.3x35.5x46.5mm |
| Mounting | on panel, |
| Coil power consumption | 680mW |
| Relay series | AZ9731 |
| Contact resistance | 100m? |
| Leads | connectors 6,3x0,8mm |
| Switched voltage | max. 28V DC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ9731-1A-12DC4 | 1000 | 1000 | 1000 @ $1.41 |
