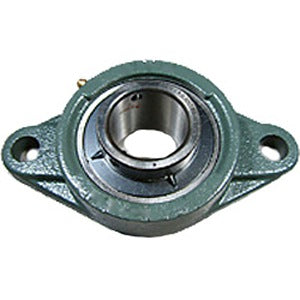

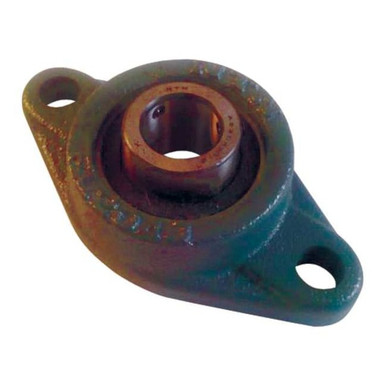

UCFL206-102D1 MOUNTED UNIT(CAST IRON)

UCFL206-102D1 MOUNTED UNIT(CAST IRON)

NTN Bearing . UCFL206-102D1

Gallery

Attributes

Brand name, Manufacturer nameNTN Bearing
ManufacturerNTN Bearing NTN NTN Corporation
CategoryL1Bearings
CategoryL2Mounted Bearings
CategoryL3Mounted Ball Bearings
CategoryL4Flanged Mounted Bearings
Extra Product Name, snippetUCFL206-102D1 MOUNTED UNIT(CAST IRON)
moq, multiple, tierMinQty1, Item_package_quantity, Number_of_items, PackageQuantity1
MPN, ModelNumber, Model_number, Mpns, PartNumber, Part_numberUCFL206-102D1
qtyInStock0
SKU269846
tierPrice1218.90
Max Rotational Speed4900 RPM
Bearing TypeBall Bearing
Seal typeContact
Seal materialNitrile rubber
Operating temperature range-40 to 250 F
ASINB07GJXV8SR
AdultProduct, Autographed, Batteries_required, Contains_liquid_contents, Memorabilia, TradeInEligibleFalse
AsinB007RH7VVA B07GJXV8SR
BindingMisc.
Brand, Label, Publisher, StudioNTN
Bullet_pointBall-point setscrew lock for a three-point contact hold on the shaft Bearing Insert Type: Ball Bore Dia.: 1-1/8" Brass grease fitting on the housing for reapplying lubricant Cast iron flanged housing with a solid base for vibration damping and structural rigidity Item: 2-Bolt Flange Bearing Light-duty, double-sealed radial ball bearing insert with a wide inner ring for moderate radial loads and light thrust or combination loads Mounted Bearing Item: 2-Bolt Flange Bearing Shaft Locking Type: Set Screw Synthetic rubber lip contact seals keep lubricant in and contaminants out and flingers provide extra sealing protection
ClassificationId220004011
CurrencyUSD
DisplayNameFlange Block Bearings
Height1.899999998062 1320 1407 321 324 386 4.826 48 49 5.8 58 725
Identifier0454735950145 454735950145 4547359501452 7412842500038
IdentifierTypeEAN UPC
IsDeadAsinTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_nameFlange Bearing, 2-Bolt, Ball, 1-1/8" Bore NTN UCFL206-102D1 Light Duty Flange Bearing, 2 Bolts, Setscrew Lock, Regreasable, Contact and Flinger Seals, Cast Iron, 1-1/8" Bore, 4-39/64" Bolt Hole Spacing Width, 3-5/32" Height, 2540lbf Static Load Capacity, 4400lbf Dynamic Load Capacity
Item_package_weight1.8
Item_type_keywordflange-block-bearings
Item_weight0.12
KeywordUC206MZ2 UCFL206-102D1
Length14.732 3.5 5.799999994084
Linkhttps://m.media-amazon.com/images/I/41CkfrGAX8L._SL75_.jpg https://m.media-amazon.com/images/I/41CkfrGAX8L.jpg https://m.media-amazon.com/images/I/41ZSj91e1aL._SL75_.jpg https://m.media-amazon.com/images/I/41ZSj91e1aL.jpg https://m.media-amazon.com/images/I/51ILKL8f2NL._SL75_.jpg https://m.media-amazon.com/images/I/51ILKL8f2NL.jpg https://m.media-amazon.com/images/I/61M+IjroB1L.jpg https://m.media-amazon.com/images/I/81cIXMAawkL.jpg https://m.media-amazon.com/images/I/81qIBBI2TqL.jpg
List_price81.99
Marking_typeepa_registration_number
MaterialCast Iron
NumberUCFL206 102D1
ProductGroup, WebsiteDisplayGroupNameBISS Basic
ProductType, ProductTypeNameHARDWARE_BEARING MECHANICAL_COMPONENTS
Product_descriptionSpecification: Item: 2-Bolt Flange Bearing Mounted Bearing Item: 2-Bolt Flange Bearing Bearing Insert Type: Ball Bore Dia.: 1-1/8" Shaft Locking Type: Set Screw Bearing Housing Material Type: Cast Iron Bearing Insert Material: 52100 Chrome Steel Bolt Hole Center-to-Center: 4-39/64" Series: Standard Duty Bolt Size: 3/8" Overall Height: 1-37/64" Overall Width: 3-5/32" Overall Length: 5-13/16" Bearing Lubrication: Shell Alvania #3 or NLGI #3 Equivalent Dynamic Load Capacity: 4400 lb. Static Load Capacity: 2540 lb. Temp. Range: -20 Degrees to 250 Degrees F Finish: Painted Dimension A: 1-7/32" Dimension Ao: 1-37/64" Dimension B: 1-1/2" Dimension H: 5-13/16" Dimension J: 4-39/64" Dimension L: 3-5/32" Dimension N: 5/8" Dimension S: 5/8"
Product_site_launch_date2012-04-04T22:53:33.330Z 2018-08-16T21:35:49.690Z
Registration_statusfifra_not_considered_pesticide not_capable_emitting_rf_energy
String_value1-1/8
StrippedMpnsUCFL206102D1
Supplier_declared_dg_hz_regulationunknown
TitleFlange Bearing, 2-Bolt, Ball, 1-1/8" Bore
TypeEach ean upc
URLhttps://m.media-amazon.com/images/I/41ZSj91e1aL._SL75_.jpg
Unitcentimeters inches pounds
Unit_count1.0
Unitspixels pounds
VariantMAIN PT01
WebsiteDisplayGroupbiss_basic_display_on_website
Weight0.12 1.8
Width1.8 1119 1821 2054 3.49999999643 500 75 8.89

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply269846111 @ $218.90
Grainger5ZUD511
ZoroG228888511511 @ $61.99
RadwellUCFL206-102D1111
Lily BearingUCFL206-102D11-211 @ $42.82
Raptor SuppliesAE7PNE111 @ $131.99
AmazonSCB007RH7VVA11
BDI Express1233242111 @ $56.14
grainger.caWWG5ZUD511
simsupply.comZO-G22888851311 @ $73.47
Misumi USAUCFL206-102D1111 @ $62.78, 2 @ $62.78
apexindustrialautomation.comUCFL206-102D111

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

NTN UCFL206-102D1 Light Duty Flange Bearing, 2 Bolts, Setscrew Lock, Regreasable, Contact and Flinger Seals, Cast Iron, 1-1/8" Bore, 4-39/64" Bolt Hole Spacing Width, 3-5/32" Height, 2540lbf Static Load Capacity, 4400lbf Dynamic Load Capacity
Brand: NTN
Details
  • Cast iron flanged housing with a solid base for vibration damping and structural rigidity
  • Light-duty, double-sealed radial ball bearing insert with a wide inner ring for moderate radial loads and light thrust or combination loads
  • Synthetic rubber lip contact seals keep lubricant in and contaminants out and flingers provide extra sealing protection
  • Ball-point setscrew lock for a three-point contact hold on the shaft
  • Brass grease fitting on the housing for reapplying lubricant
View on Amazon (paid link)
Flange Bearing, 2-Bolt, Ball, 1-1/8" Bore
Brand: NTN
Specification: Item: 2-Bolt Flange Bearing Mounted Bearing Item: 2-Bolt Flange Bearing Bearing Insert Type: Ball Bore Dia.: 1-1/8" Shaft Locking Type: Set Screw Bearing Housing Material Type: Cast Iron Bearing Insert Material: 52100 Chrome Steel Bolt Hole Center-to-Center: 4-39/64" Series: Standard Duty Bolt Size: 3/8" Overall Height: 1-37/64" Overall Width: 3-5/32" Overall Length: 5-13/16" Bearing Lubrication: Shell Alvania #3 or NLGI #3 Equivalent Dynamic Load Capacity: 4400 lb. Static Load Capacity: 2540 lb. Temp. Range: -20 Degrees to 250 Degrees F Finish: Painted Dimension A: 1-7/32" Dimension Ao: 1-37/64" Dimension B: 1-1/2" Dimension H: 5-13/16" Dimension J: 4-39/64" Dimension L: 3-5/32" Dimension N: 5/8" Dimension S: 5/8"
Details
  • Item: 2-Bolt Flange Bearing
  • Mounted Bearing Item: 2-Bolt Flange Bearing
  • Bearing Insert Type: Ball
  • Bore Dia.: 1-1/8"
  • Shaft Locking Type: Set Screw
Listing
BindingMisc.
Product groupBISS Basic
Product typeMECHANICAL_COMPONENTS
Part numberUCFL206-102D1
LabelNTN
ManufacturerNTN
