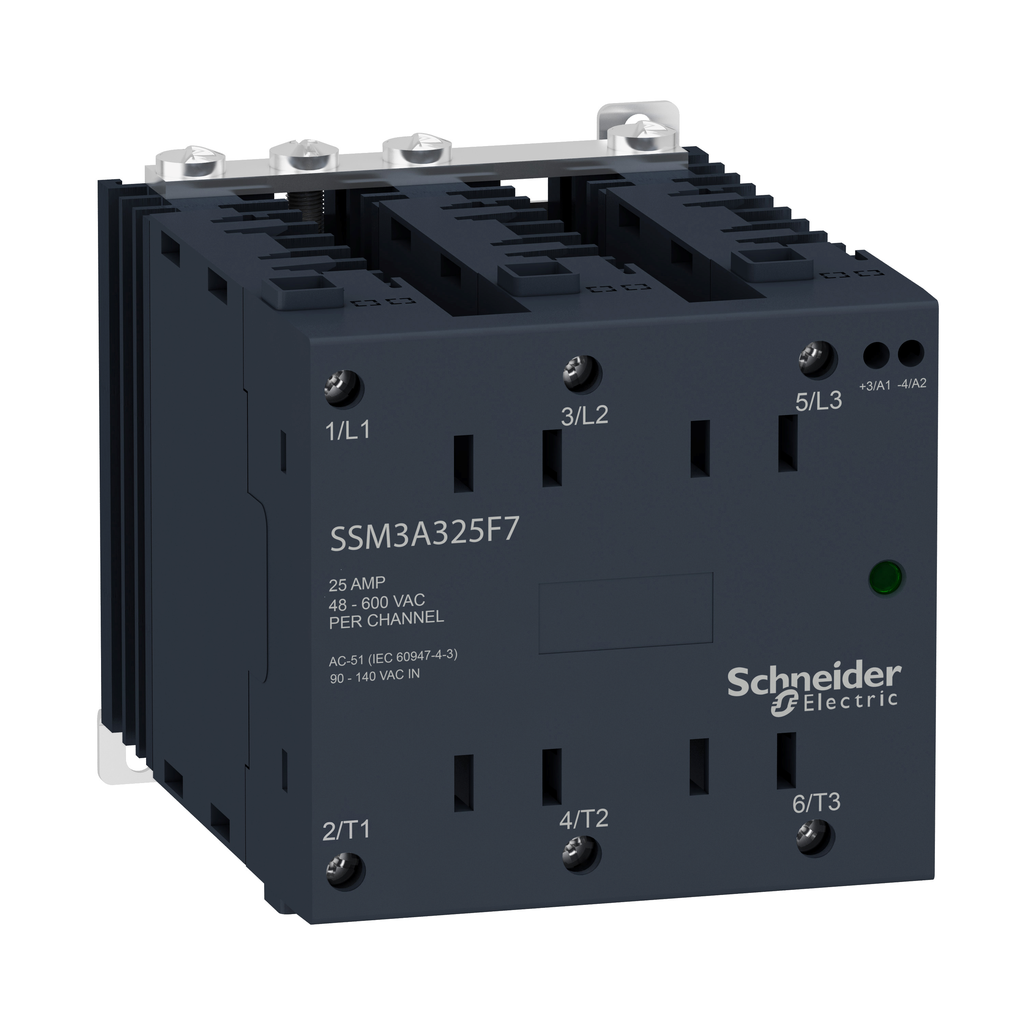

Harmony, Solid state modular relay, 25 A, DIN rail mount, random switching, input 4?32 V DC, output 48?600 V AC | Mayer Electric

Mayer Electric Supply . SSM3A325BDR

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameHarmony, Solid state modular relay, 25 A, DIN rail mount, random switching, input 4?32 V DC, output 48?600 V AC | Mayer Electric
UPC785901527725
Weight0.74
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Solid-state-relay-DIN-rail-mount-input-4-32Vdc-output-48-600Vac-25A-rdm-785901527725
jsonUrlData20b7ed50d-32c1-4a8e-9a66-abd200632df7
moq, multiple, tierMinQty11
MPNSSM3A325BDR
qtyInStock0
SKUSQDSSM3A325BDR
tierPrice1203.05
Range Of ProductHarmony Solid State Relays
Number Of Channels3
Output Switching Mode, Solid State Output Typerandom voltage switching
Product Or Component Typesolid state relay up to 30 A
Phase3 phase
Device Short NameSSM3
Absolute Maximum Voltage1100 V
Cos Phi0.5-0.5 (with maximum load)
[Uc] Control Circuit Voltage4...32 V DC
Output Voltage48...600 V AC
Maximum Horse Power Rating1 hp 40 ?C 240 V AC || 2 hp 40 ?C 380 V AC || 3 hp 40 ?C 480 V AC
Tightening Torque0.6...0.7 N.m for input || 1.36...1.7 N.m for output
Insulation Resistance1000 MOhm
Dv/Dt500 V/?s off-state at maximum voltage
Mounting Supportsymmetrical DIN rail
Local Signallingfor input status LED (green)
Capacitance Unbalance8 pF for input/output
Maximum I?T For Fusing410 A?.s for 10 ms at 50 Hz || 374 A?.s for 8.3 ms at 60 Hz
Line Rated Current25 A
Switching Voltage4 V DC turn-on || 1 V DC turn-off
Connections - Terminalsscrew terminals 0.2...1.3 mm?, AWG 24...AWG 16) input || screw terminals 1.3...5.3 mm?, AWG 16...AWG 10) output
Surge Current286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz
Input Current Limits22-28 mA
Response Time0.5 cycle (turn-off) || 0.02 ms (turn-on)
Overvoltage CategoryIII
Load Current0.1-25 A
Net Weight0.74 kg
Maximum Leakage Current0.25 mA off-state
China Rohs RegulationX
Circularity ProfileENVEOLI1508007EN
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1508007EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product CertificationsUL || EAC || CSA
Ambient Air Temperature For Operation-20-80 ?C
Ambient Air Temperature For Storage-40-100 ?C
StandardsUL 508 || IEC 60950-1 || CSA C22.2 No 14
Pollution Degree2
Dielectric Strength4 kV AC for input/output || 4 kV AC for input or output to case
MarkingCSA || EAC || CE || UL
Ip Degree Of ProtectionIP20

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDSSM3A325BDR111 @ $203.05
