Dayton Audio LS12-44 12" Low Profile Subwoofer Dual 4 Ohm

Dayton Audio LS12-44 12" Low Profile Subwoofer Dual 4 Ohm. Part Number: 295-253 by Dayton Audio.

Dayton Audio . LS12-44

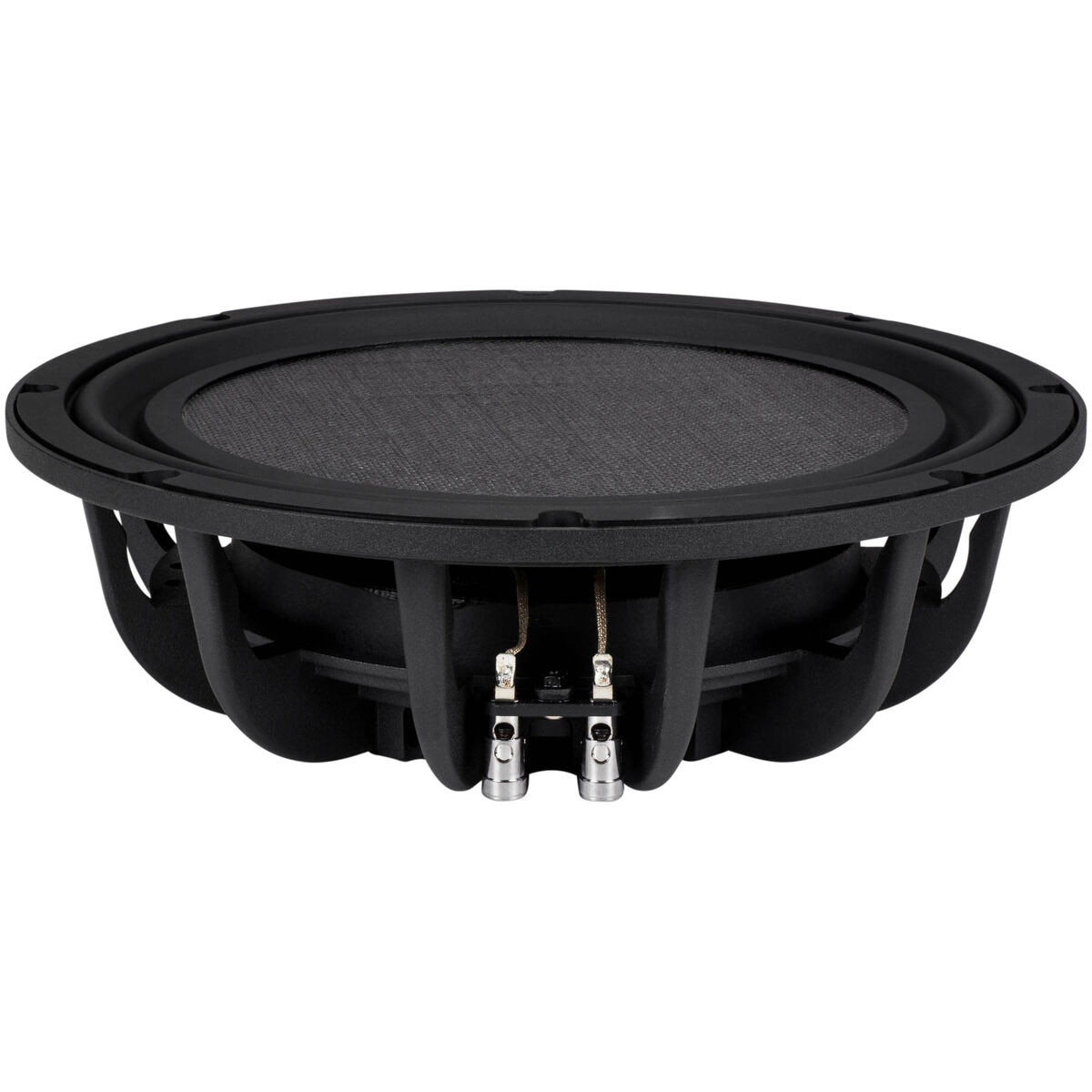

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio LS12-44 12" Low Profile Subwoofer Dual 4 Ohm
UPC848791001611
Weight11.55
WeightUnitlbs
depth, length3.88
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelLS12-44
qtyInStock0
SKU, Part Number295-253
snippetDayton Audio LS12-44 12" Low Profile Subwoofer Dual 4 Ohm. Part Number: 295-253 by Dayton Audio.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.69
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8?
Frequency Response28 to 300Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)33.7Hz
DC Resistance (Re)7.5?
Voice Coil Inductance (Le)5.34mH
Mechanical Q (Qms)4.94
Electromagnetic Q (Qes)0.56
Total Q (Qts)0.51
Compliance Equivalent Volume (Vas)1.99ft?
Mechanical Compliance of Suspension (Cms)0.13mm/N
BL Product (BL)21.7T?m
Diaphragm Mass Inc Airload (Mms)166g
Maximum Linear Excursion (Xmax)10mm
Surface Area of Cone (Sd)547.3cm?
Cone MaterialFiberglass
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth3.88"
# Mounting Holes8
Sealed Volume1.1ft?
Sealed F361Hz
Vented Volume2.5ft?
Vented F329Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-25311
