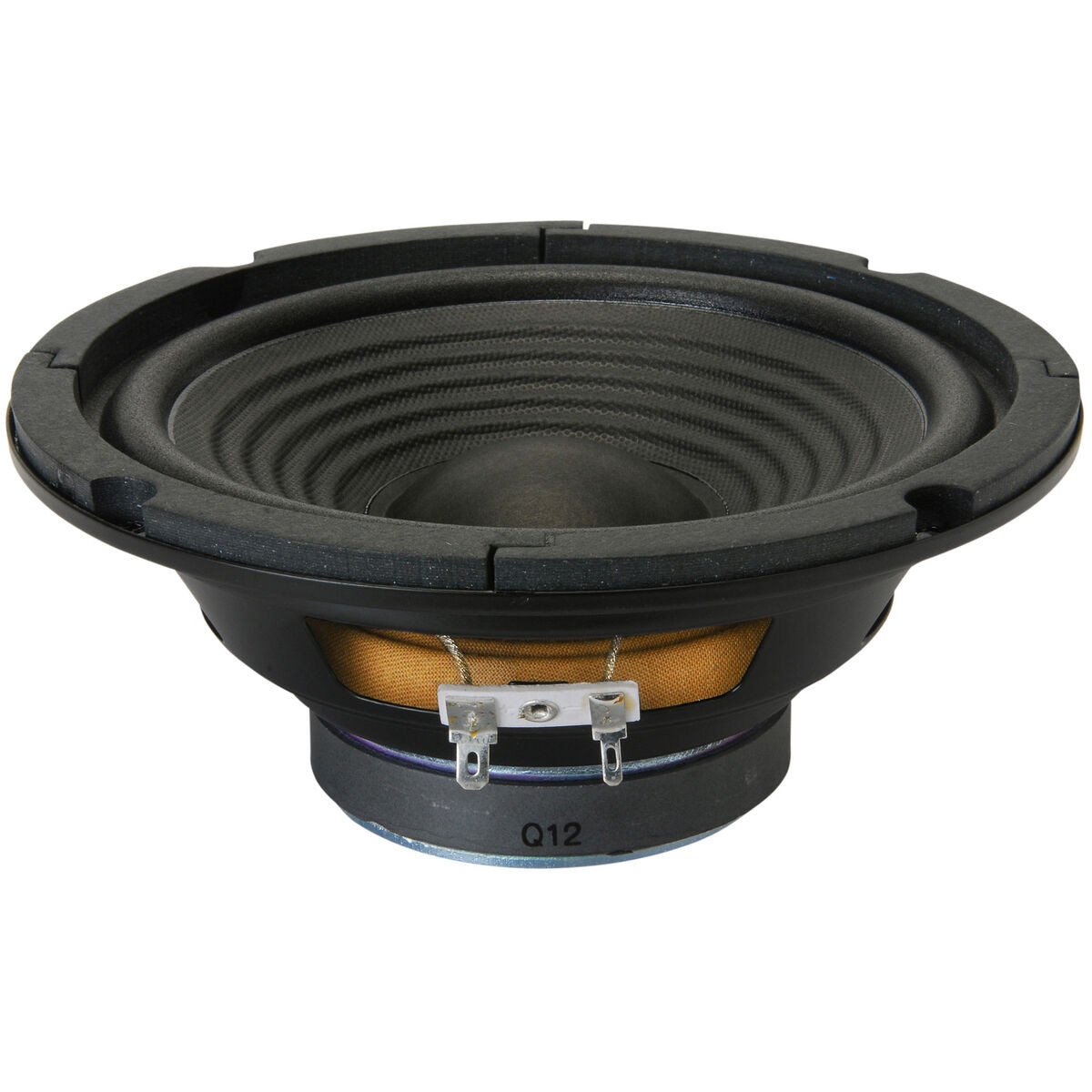

Visaton W170-8 6.5" Woofer 8 Ohm

Visaton W170-8 6.5" Woofer 8 Ohm. Part Number: 292-582 by Visaton.

Visaton . W170 - 8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandVisaton
DimensionUnitinch
Extra Product NameVisaton W170-8 6.5" Woofer 8 Ohm
Weight1.874
WeightUnitlbs
depth, length2.48
diameter, height, width6.7
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelW170 - 8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number292-582
snippetVisaton W170-8 6.5" Woofer 8 Ohm. Part Number: 292-582 by Visaton.
tierMinQty210
tierMinQty325
tierPrice123.03
tierPrice222.34
tierPrice321.39
Unit of MeasureEach
Nominal Diameter6-1/2"
Power Handling (RMS)40 Watts
Power Handling (MAX)70 Watts
Impedance8?
Frequency Response57 to 6,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)57Hz
DC Resistance (Re)7.2?
Voice Coil Inductance (Le)0.9mH
Mechanical Q (Qms)2.92
Electromagnetic Q (Qes)0.9
Total Q (Qts)0.69
Compliance Equivalent Volume (Vas)0.85ft?
Maximum Linear Excursion (Xmax)2mm
Cone MaterialTreated Paper
Surround MaterialFoam
Overall Outside Diameter6.7"
Baffle Cutout Diameter5.63"
Depth2.48"
Sealed Volume0.6ft?
Sealed F372.6Hz
Vented Volume0.8ft?
Vented F354.2Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com292-5821-211 @ $23.03, 10 @ $22.34, 25 @ $21.39
