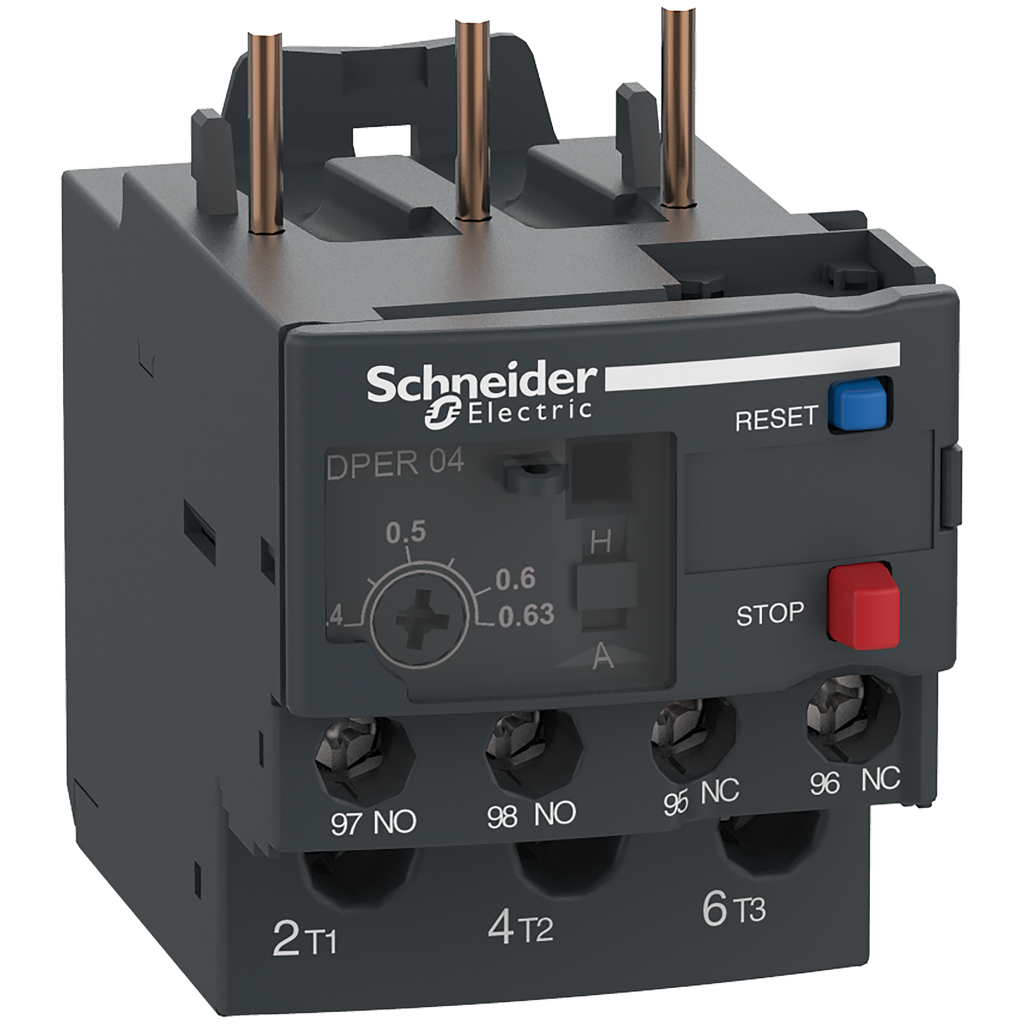

Easy TeSys DPER thermal overload relay, 0.40?0.63 A, class 10 | Mayer Electric

SQUARE D . SQDDPER04

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameEasy TeSys DPER thermal overload relay, 0.40?0.63 A, class 10 | Mayer Electric
UPC3606485332536
Weight0.124
WeightUnitkg
Weight_AttribNet Weight
depth, length70.0
height66.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Easy-TeSys-DPER-thermal-overload-relay-0-400-63-A-class-10-3606485332536
jsonUrlData21e17d0f2-7da6-4712-93ef-ade40063ed6c
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDDPER04
qtyInStock0
tierPrice121.07
width45.0
width_AttribWidth
Thermal Protection Adjustment Range0.40-0.63 A
Relay Applicationoverload protection
Product Or Component Typethermal overload relay
Product NameEasy TeSys DPER
Thermal Overload Classclass 10 IEC 60947-4-1
RangeEasy TeSys
[Ui] Rated Insulation Voltagepower circuit 600 V cUL || power circuit 690 V IEC 60947-4-1
Product Compatibilitycontactor DPE09-38
Device Short NameDPER
Network Frequency0...400 Hz
Height66 mm
[Ith] Conventional Free Air Thermal Current5 A signalling circuit
Auxiliary Contact Composition1 NO + 1 NC
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals || power circuit 1.7 N.m screw clamp terminals
Phase Failure Sensitivitytripping current 130 % of Ir on two phase, the last one at 0
[Ue] Rated Operational Voltage690 V AC 0...400 Hz power circuit IEC 60947-4-1
Network TypeDC || AC
Dielectric Strength1.89 kV 50 Hz IEC 60947-1
Net Weight0.124 kg
Permissible Current3 A 120 V AC-15 signalling circuit || 0.22 A 125 V DC-13 signalling circuit
Tripping Threshold1.14 +/- 0.06 Ir IEC 60947-4-1
Control TypeRed push-button stop || Blue push-button reset
Mounting Supportseparate, with specific accessories || under contactor
[Uimp] Rated Impulse Withstand Voltage6 kV
Width45 mm
Depth70 mm
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP080206EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI0802006
Eu Rohs DirectiveCompliant
Product CertificationscUL
StandardsEN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || cUL
Ambient Air Temperature For Operation-20-60 ?C without derating IEC 60947-4-1
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Ambient Air Temperature For Storage-60-70 ?C
Protective TreatmentTH IEC 60068
Temperature Compensation-20-60 ?C
