JWL4024D12 XP Power | Power Supplies - Board Mount | DigiKey

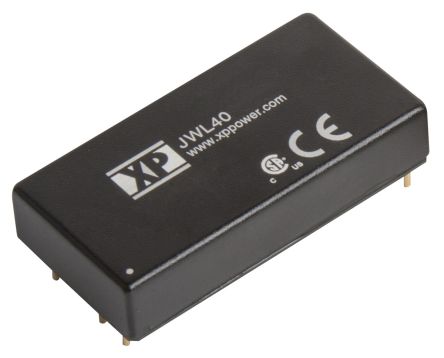

The XP Power JWL4024D12 is an isolated board mount DC/DC converter with a 4:1 input ratio. It features through hole mounting and a maximum power output of 40W. The output voltage is 12V at 1.67A, with a -12V output at 1.67A. This converter is suitable for various industrial applications.
DC-DC Converter, Thru Hole, DIP, 40W, [email protected], 1.67A, 9-36V In, JWL Series
Gallery
Attributes
| Brand name, Manufacturer name, Mfr | XP Power |
|---|---|
| Manufacturer | XP Power Xp Power |
| Extra Product Name | JWL4024D12 XP Power | Power Supplies - Board Mount | DigiKey |
| atoms, minimum, moq, multiple, NumberOfItems | 1 |
| MPN, Keyword, Model, ModelNumber, Model_number | JWL4024D12 |
| qtyInStock | 21 |
| SKU | 1470-3402-ND |
| Part Status | Active |
| Type | Isolated Module |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3, Voltage - Output 4 | - |
| Current - Output (Max) | 1.67A, 1.67A |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40?C ~ 105?C |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Control Features | Enable, Active High |
| Number of Outputs | 2 |
| Power (Watts) | 40 W |
| Voltage - Isolation | 1.5 kV |
| ASIN, Asin | B01DPA9CNW |
| AdultProduct, Autographed, Memorabilia, TradeInEligible | False |
| Brand | XP POWER |
| Height | 1373 405 61 |
| IsDeadAsin | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Xp Power Dc-Dc Converter, 2 O/p, 40W - JWL4024D12 |
| Label, Publisher, Studio | Xp Power |
| Link | https://m.media-amazon.com/images/I/41llMERYFSL._SL75_.jpg https://m.media-amazon.com/images/I/41llMERYFSL.jpg https://m.media-amazon.com/images/I/71Mg0XL576L.jpg |
| PartNumber | ARNEW-78Y4498-2017GT1.3A JWL4024D12 |
| Part_number | ARNEW-78Y4498-2017GT1.3A |
| ProductCategoryId | 306506011 306629011 biss_display_on_website |
| ProductGroup | BISS BISS Basic CE |
| ProductType | POWER_CONVERTER |
| ProductTypeName | BISS POWER_CONVERTER |
| Product_site_launch_date | 2016-04-01T08:33:27.752Z |
| Rank | 1087947 172274 2504166 46122 |
| Title | XP POWER JWL4024D12 Isolated Board Mount DC/DC Converter, 4:1 Input, Through Hole, 40W, 12V, 1.67A, -12V, 1.67A Xp Power Dc-Dc Converter, 2 O/p, 40W - JWL4024D12 |
| URL | http://ecx.images-amazon.com/images/I/41llMERYFSL._SL75_.jpg https://m.media-amazon.com/images/I/41llMERYFSL._SL75_.jpg |
| Units | pixels |
| Variant | MAIN |
| WebsiteDisplayGroup | ce_display_on_website |
| WebsiteDisplayGroupName | CE |
| Width | 1697 500 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 1470-3402-ND | 1 | 21 | 1 | ||
 Newark | 78Y4498 | 10 | 10 | 10 @ $87.10, 25 @ $83.39, 100 @ $77.83 | |
| RS Online | 1619266 | 1 | 1 | ||
| 161-9266 | 1 | 1 | |||
| Allied Electronics | 71929511 | 10 | 10 | ||
| AmazonSC | B01DPA9CNW | 1 | 1 | ||
| Digi-Key | 5956228 | 100 | 100 | 1 @ $84.24, 5 @ $81.71, 10 @ $79.19, 25 @ $75.82, 100 @ $70.76 | |
| us.rs-online.com | 71929511 | 10 | 10 | 10 @ $87.10, 30 @ $83.39, 100 @ $77.83 | |
| RS Online | 1224507 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

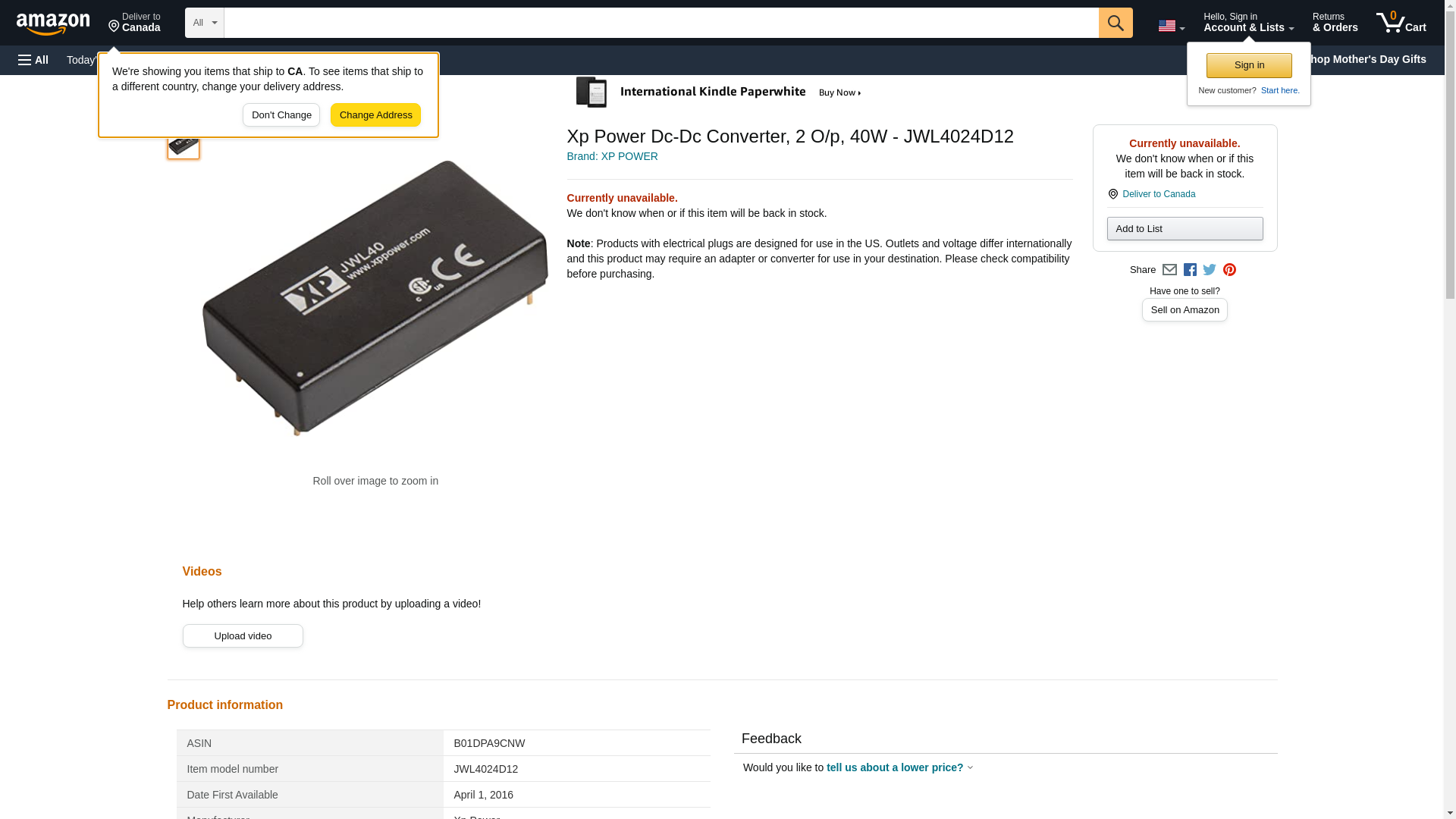

Xp Power Dc-Dc Converter, 2 O/p, 40W - JWL4024D12
