Widia

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameWidia
DimensionUnitinch
GraingerSku274KA4
UPC4056544446312
UnitOfMeasureEA
Weight0.05
WeightUnitlbs
cali_prop65_messageWARNING: Cancer - www.P65Warnings.ca.gov
cali_prop65_orglabelFalse
cali_prop65_warnmsgscenario, moq, multiple, qtyInStock5
cali_prop65_whtlabelTrue
countryOfOriginDE
height0.51
jsonUrlData924526ffbdad25e5923b
length3.74
MPN, ANSI CodeXDCT1715RALP
qtyInStockOverrideLimited Stock
SKUG3801139
tierMinQty11
tierPrice118.36
urlhttps://www.zoro.com/widia-milling-insert-parallelogram-1564mm-xdct1715ralp/i/G3801139/
width0.97
Cutting DirectionRight Hand
For Use WithVSM17 Series 0 Degrees /90 Degrees Shoulder Mills
Super Alloy (S) Compatibility, Steel (P) Compatibility, Hardened (H) Compatibility, Cast Iron (K) Compatibility, Stainless (M) CompatibilityNo
Insert Material, Material - MachiningCarbide

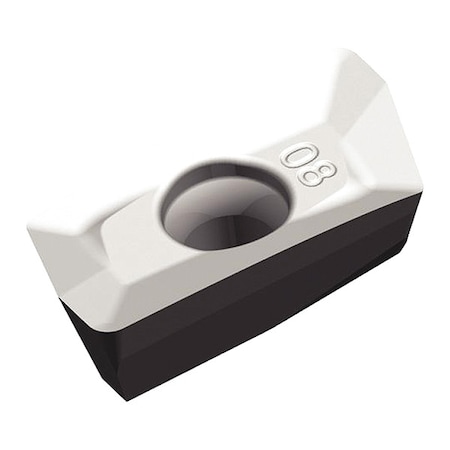

ItemParallelogram Milling Insert
Chip-Breaker, Non Ferrous (N) CompatibilityYes
Lead Angle1 Degrees ANSI, 89 Degrees ISO
Insert Thickness0.1890"
Insert StyleXDCT
Insert Size170460
SeriesVSM17
Mounting Style, Insert Holding TypeTaper Screw
Mounting Hole Dia, Through Hole Inside Dia4.40mm
Rake20 Degrees
Workpiece CompatibilityNonferrous (N)
Insert Shape, ShapeParallelogram
ISO NumberXDCT170460PEFRALP
Grade, Manufacturer GradeWN25PM
Included Angle75 Degrees
Clearance Angle15 Degrees
Chip-Breaker StyleOn One Side
FeaturesALP is the First Choice for Roughing and Finishing of Aluminium Alloy
Cutting Edge Length15.64mm
Thickness0.1890 in
Primary Material ApplicationAluminum, Brass, Bronze, Copper, Magnesium
Corner Radius6.00mm
Measurement SystemMetric
Hole Type40 Degrees to 60 Degrees Countersink Hole
Primary Material Application ISO CodeN
Number of Cutting Edges2
Chip-Breaker CodeALP
Finish - MachiningTiB2
Width9.56mm
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG38011395551 @ $18.36
