Parker

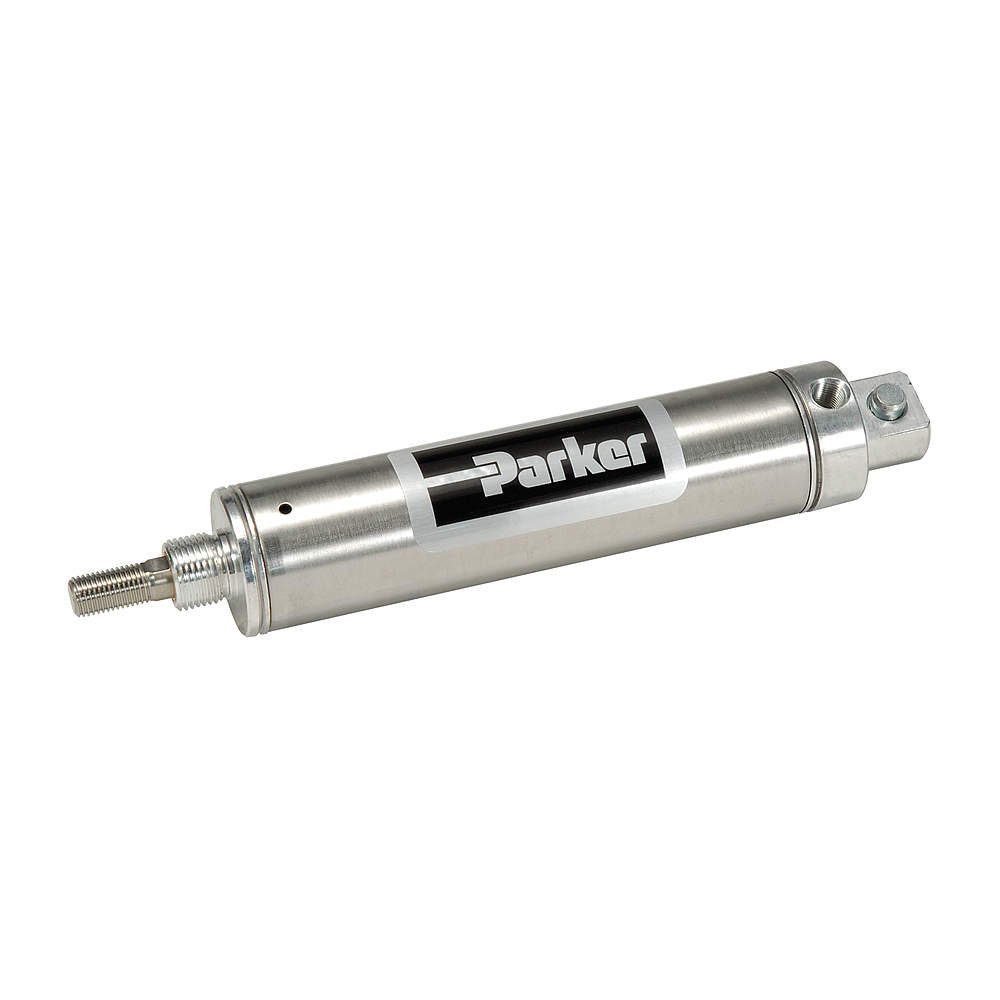

Round Air Cylinder 5/16 Inch Bore 1 Inch Stroke | 49J538 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.31PSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J538
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.05
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width0.39
jsonUrlData924526ffbdad25e5923b
length2.81
moq, multiple, qtyInStock, qtyInStockOverride, tierMinQty11
MPN0.31PSR01.00
qtySourceqtyInStockOverride
SKUG6211432
tierPrice119.08
urlhttps://www.zoro.com/parker-air-cylinder-516-in-bore-1-in-stroke-round-body-single-acting-031psr0100/i/G6211432/
Cylinder Action, Single Acting/Double ActingSingle Acting
ItemAir Cylinder
Bore Dia5/16 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Pivot Hole Dia, Dimension Cc, Dimension Cd0.125 in
Overall Length3.56 in
Rod Thread Length0.38 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountPivot
Port Size#10-32 UNF
Air Cylinder TypeRound Body
Dimension Kk, Rod Thread Size#5-40 UNC
Dimension Cb, Dimension E0.25 in
End Cap Material, Piston MaterialAluminum
Dimension L0.34 in
Spring Retraction Force0.5 lb
Temp Range-10 Degrees to 165 Degrees F
Dimension A19/50 in
Dimension N1, Nose Mount Thread3/8"-24
FeaturesNon-Switch Ready
FinishSilver
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG62114321111 @ $19.08
Grainger49J538111 @ $33.22
Raptor SuppliesAJ2DXF111 @ $46.40
AmazonB074JCK8CT11
Applied Industrial11623421311
Radwell0.31PSR01.00111
