Tel-Tru

Tel-Tru . ND4RB09115-P22042-C1010

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameTel-Tru
DimensionUnitinch
GraingerSku55CL51
UnitOfMeasureEA
Voltage4 to 20 mA
Weight2
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead15
extendedQty-2
height, width7
jsonUrlData924526ffbdad25e5923b
length9
moq, multiple, tierMinQty11
MPNND4RB09115-P22042-C1010
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG5749683
tierPrice1586.00
urlhttps://www.zoro.com/tel-tru-digital-panel-mount-thermometer-rtd-7-h-nd4rb09115-p22042-c1010/i/G5749683/

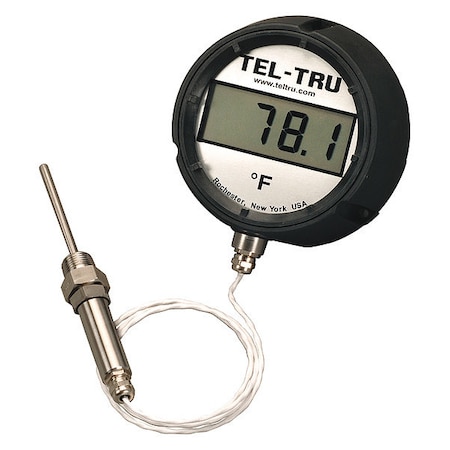

ItemDigital Panel Mount Thermometer
Response Time3 sec
Sensor Length4"
Sensor Dia1/4"
Thermometer Power Source3.6V Battery
Case Material, Housing MaterialPolypropylene
Temp Range (F)-75 Degrees to 750 Degrees
Temp Range (C)-58 Degrees to 399 Degrees
Accuracy+/-0.5 Degrees F/ +/-0.3 Degrees C
Mounting, Mounting StyleWall Mount Remote
Sensor Material, Probe Material316 Stainless Steel
Battery Type(1) AA Lithium
Sensor Wire Length10 ft.
Width5.52 in
Display TypeLCD
Power SourceBattery
FeaturesMicroprocessor technology for improved stability and accuracy. Shock and vibration tested and resistant to electromagnetic interference.
Manufacturers Warranty Length, Manufacturer Warranty Length5 yr
Lens MaterialGlass
Includes10 Ft Cable & 4 in Probe
Depth2.89 in
Enclosure RatingIP66
Line MaterialPTFE Covered Cable
Display4.5 in LCD 4 Digits
StandardsEU/EMC Directive 2004/108/EC, FDA Rule 21 CFR Part 113.40
Height5 13/25 in
Number of Digits4
Sensor Type, Sensor TechnologyRTD
Temp Accuracy+/-0.5 Degrees F
Line Length10 in
Display Digit Size1.0 in
Process Connection1/2 in MNPT with 10 ft Cable
Calibration CertificateNIST Certificate Included
Probe Dia, Probe Diameter0.25 in
Probe ConnectorRemote Mount
Display Size4 1/2 in dia
Display Diameter4.5 in
Probe TechnologyRTD - 1/4 in Dia x 4 in L Probe
Backlit, NSF Rated, Includes NIST-Traceable CertificateYes
Minimum Temperature F, Minimum Temperature ?F-75 Degrees F
Temperature Resolution F0.1 Degrees F
Maximum Temperature F, Maximum Temperature ?F750 Degrees F
Power Source DetailsAA Lithium Battery
Minimum Temperature C, Minimum Temperature ?C-58 Degrees C
Digital Display4 1/2 in dia Display with 4-Digit Backlit LCD - 1 in Digit Height
Probe Length4 in
Waterproof, Includes Batteries, Temperature Alarm, 3-A CertifiedNo
Resolution0.1 Degrees F/0.1 Degrees C
Display Height, Digit Height, Display Width1 in
Temperature Resolution C0.1 Degrees C
Thread TypeNPT
ConstructionPolypropylene Housing with Glass Lens and 316 Stainless Steel Probe
Scale TypeDigital
Maximum Temperature C, Maximum Temperature ?C399 Degrees C
Thermometer TypeRemote Mount Digital Thermometer
Temperature ScaleFahrenheit/Celsius
Thread GenderMale
Cable Length10 ft
Temperature Range-75 Degrees to 750 Degrees F/-58 Degrees to 399 Degrees C
Flange Outside Diameter2.89 in, 5.52 in
Thread Size1/2 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG5749683111 @ $586.00
