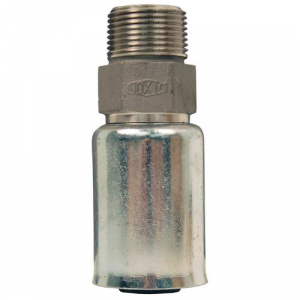

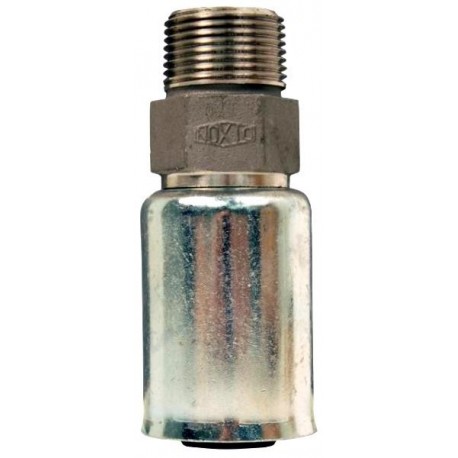

DIXON . R12P2

3/4" 316SS Ex-Swage Uni-Range Stem CS Ferrule, 1-14/64" to 1-18/64" OD

Applications Recommended for use on most one or two wire braid reinforced hoses, fiber reinforced (braided or spiral) with or without helical wire such as chemical, high pressure air and water hoses, and LP gas hoses. Use Designed for smaller hose systems, these couplings may be used for hose ID's of 1/4" - 1" These fittings can be crimped or swaged. Features Arrives complete with factory assembled stem and ferrule combination The coupling system requires no bolts and results in a clean coupling with no protrusions. The Holedall coupling provides long-lasting efficiency and safety. The Holedall coupling provides long-lasting efficiency and safety. Construction 316 Stainless steel stem Plated carbon steel ferrule How it works The hydraulic swaging of the coupling to the hose is accomplished by pushing the ferrule through a die which reduces the ferrule OD, thus providing a 360° uninterrupted compression band around the hose. A hydraulic ram is the only piece of machinery necessary to accomplish the coupling. Rams are available in five different sizes- 15,25, 50,100 and 350 ton - these rams will accommodate dies and pushers of various sizes so that hoses up to 10" in diameter may be coupled.
