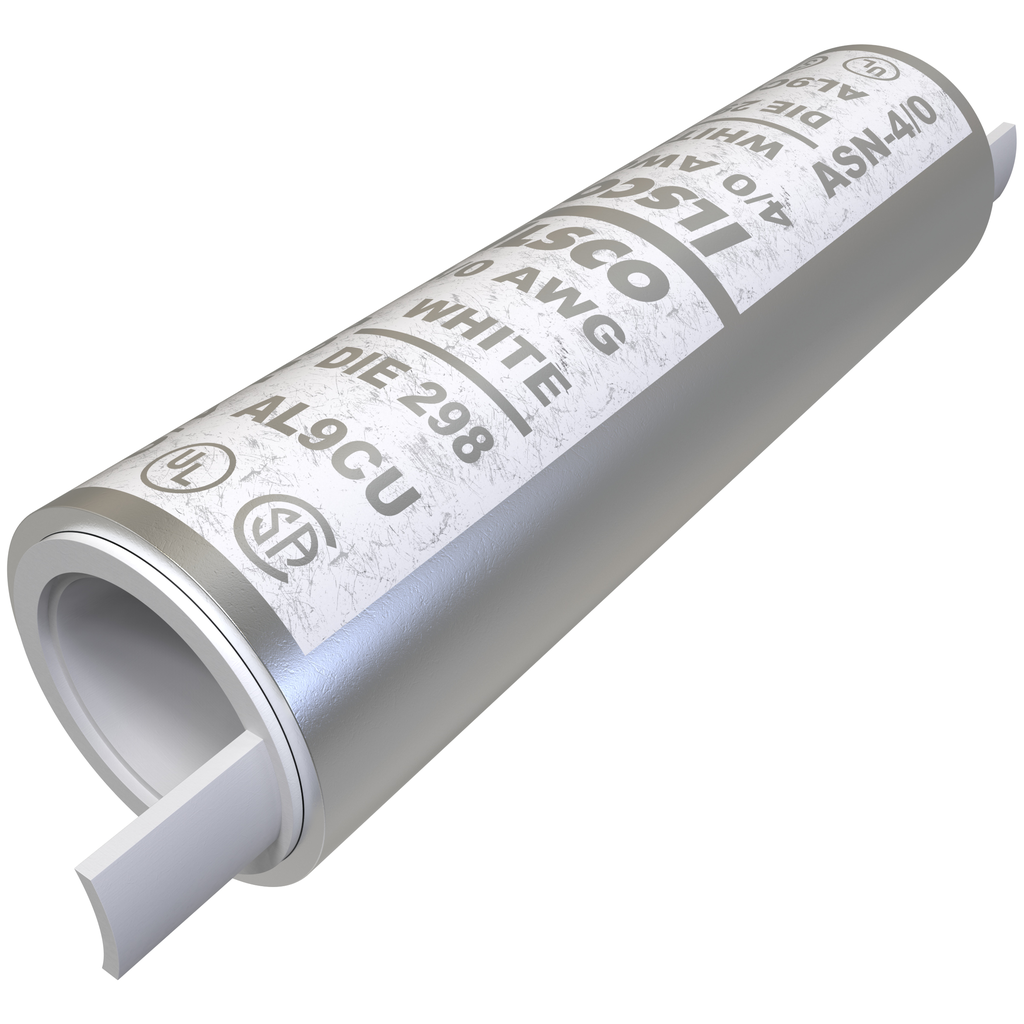

Surecrimp Aluminum Compression Sleeve, Conductor Size 4/0, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . ASN-4/0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameSurecrimp Aluminum Compression Sleeve, Conductor Size 4/0, Tin Plated, UL, CSA | Mayer Electric
UPC783669184792
Weight0.098
WeightUnitlbs
Weight_AttribWeight
height, width, Outside Diameter (IN)0.854
height_AttribHeight
jsonUrlData/Product/ILSCO-Surecrimp-Aluminum-Compression-Sleeve-Conductor-Size-4-0-Tin-Plated-UL-CSA-783669184792
jsonUrlData25bd39356-d854-4f8e-a166-abb200c8ec0d
length3.07
length_AttribLength
moq, multiple, tierMinQty1, Number of Conductors, Bag Quantity1
MPNASN-4/0
qtyInStock0
SKUILSASN40
tierPrice137.44
width_AttribWidth
Height, Width0.854 in | 21.6916 mm
Length3.07 in | 77.978 mm
Height BX (IN)2.25
Height (mm), Outside Diameter (mm), Width (mm)21.6916
Inside Diameter (IN)0.553
Inside Diameter (mm)14.0462
Length (mm)77.978
Weight BX (LB)1.083
Width BX (IN)5
Conductor TypeStranded
Barrel MarkingHard
Barrel TypeStandard
ConnectionCompression
Contains DE-OX?, Dual RatedYes
Flared EndNo
ILSCOs Die Index Number467
Conductor MaterialAluminum, Copper
Connector FinishTin
MaterialAluminum
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)4/0 Str
Expanded Conductor Range4/0 Str - 1 Str
Temperature Rating90?C
ColorSilver
Color CodeWhite
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-1
UPC Code78366918479

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSASN40111 @ $37.44
