Order YA26L245 by Burndy 50227R Compression Connector, 1/4" Stud Size, (Pack of 10 pcs) - US Mega Store

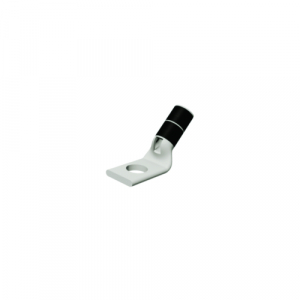

Burndy, YA26L245, 50227R Compression Connector, One Hole, 1/4" Stud Size Cu Comp Terminal Code Cond,1 Hole/withInspWindow, 2/0 AWG Str Code, 125 Navy, 600 V-35 kV, 1/4" Stud, Black, 13 Index.

Burndy . YA26L245

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA26L245
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YA26L245 by Burndy 50227R Compression Connector, 1/4" Stud Size, (Pack of 10 pcs) - US Mega Store
diameter, height14.224
height_AttribDimension - Outside Diameter inch
length45.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA26L245
qtyInStock-2
qtySourceFieldMap
tierPrice117.46
width21.081999999999997
width_AttribDimension - Pad Width inch
Connector TypeTerminal
Die Index13
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction15/16 in
Dimension - B Length inch0.94 in
Dimension - Bolt Hole Size inch0.27 in
Dimension - Bolt Size fraction (Inch), Dimension - Stud Size inch1/4
Dimension - D inch0.58 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm45 mm
Dimension - Length Overall inch1.78 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch1 in
Dimension - Z inch0.33 in
Physical Attribute - Tongue Angle45 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range125 (61) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range2/0 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - Industry Standards MetUL467
Standards - RoHS Compliance StatusCM

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA26L2451-211 @ $17.46
