A-HDF 15 PP/Z Assmann WSW Components | Connectors, Interconnects | DigiKey

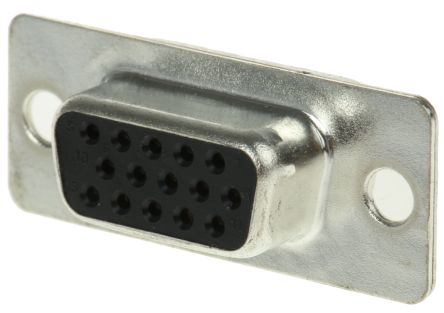

Assmann Electronics A-HDF 15 PP/Z
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Assmann WSW Components |
|---|---|
| Extra Product Name | A-HDF 15 PP/Z Assmann WSW Components | Connectors, Interconnects | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | A-HDF 15 PP/Z |
| qtyInStock | 0 |
| SKU | AE11026-ND |
| Series, Features, Ingress Protection, Contact Form, Wire Gauge, Backset Spacing | - |
| Part Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Shell Size, Connector Layout | 1 (DE, E) High Density |
| Contact Type | Signal |
| Mounting Type | Through Hole |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -20?C ~ 85?C |
| Voltage Rating | 250V |
| Color | Black |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Material | Copper Alloy |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | AE11026-ND | 1 | 1 | ||
| R1073988 | 1 | 1 | 1 @ $1.12, 25 @ $1.07, 100 @ $0.98, 500 @ $0.94, 1000 @ $0.77 | ||
| 113-5931 | 50 | 50 | 50 @ $0.60, 100 @ $0.51, 250 @ $0.47, 500 @ $0.46, 2000 @ $0.44 | ||
| Digi-Key | 1241889 | 2400 | 1887 | 2400 | 1 @ $0.90, 10 @ $0.76, 25 @ $0.73, 50 @ $0.71, 100 @ $0.68, 250 @ $0.62, 450 @ $0.56, 950 @ $0.49, 2400 @ $0.39 |
| RS Delivers | 674-0969 | 1 | 229 | 1 | 1 @ $1.12, 25 @ $0.92, 50 @ $0.89, 100 @ $0.86, 200 @ $0.79 |
| RS Delivers | 674-0969P | 1 | 167 | 1 | 1 @ $1.12, 25 @ $0.92, 50 @ $0.89, 100 @ $0.86, 200 @ $0.79 |
| RS Online | 1135931 | 1 | 1 | ||
| RS Online | 6740969 | 1 | 1 |
