Parker

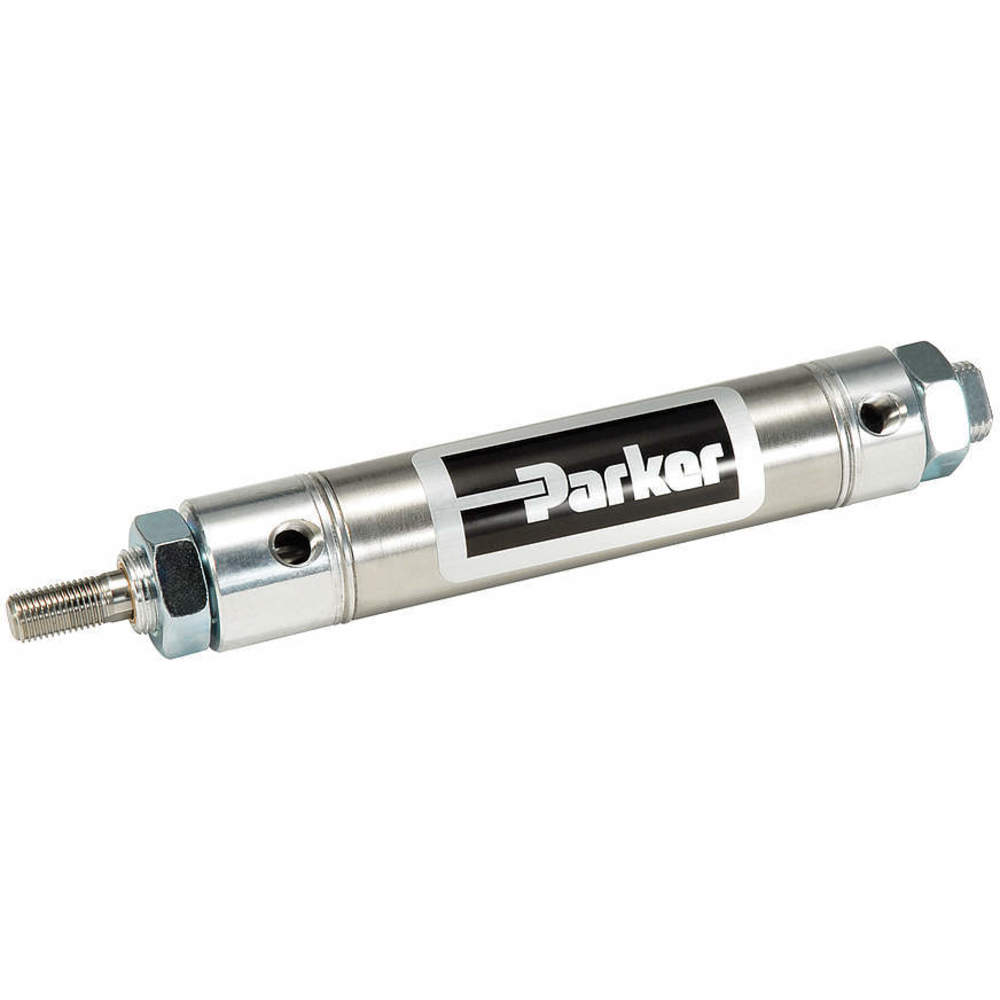

Round Air Cylinder 7/16 Inch Bore 1 Inch Stroke | 49J557 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.44DXPSR01.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J557
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.2
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
extendedLead26
extendedQty-2
height, width0.74
jsonUrlData924526ffbdad25e5923b
length4.31
moq, multiple, tierMinQty11
MPN0.44DXPSR01.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG6213356
tierPrice124.75
urlhttps://www.zoro.com/parker-air-cylinder-716-in-bore-1-in-stroke-round-body-double-acting-044dxpsr0100/i/G6213356/
ItemAir Cylinder
Cylinder Action, Single Acting/Double ActingDouble Acting
Bore Dia, Air Cylinder Bore Dia7/16 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.188 in
Overall Length4.3 in
Rod Thread Length0.5 in
Pivot Hole Dia, Dimension Cd0.157 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke1 in
Mount, Air Cylinder MountNose and Pivot
Port Size, Dimension Kk, Rod Thread Size#10-32 UNF
Air Cylinder TypeRound Body
Piston Material, End Cap MaterialAluminum
Dimension N1, Nose Mount Thread7/16"-20
FeaturesNon-Switch Ready
Dimension E, Dimension Cb0.31 in
Temp Range-10 Degrees to 165 Degrees F
FinishSilver
Dimension B0.437 in
Dimension L0.25 in
Dimension A1/2 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG6213356111 @ $24.75
Grainger49J55711
Raptor SuppliesAJ2DYB111 @ $63.86
Applied Industrial10218368811
sustainablesupply.comC16851221-211 @ $40.86
Radwell0.44DXPSR01.001751
