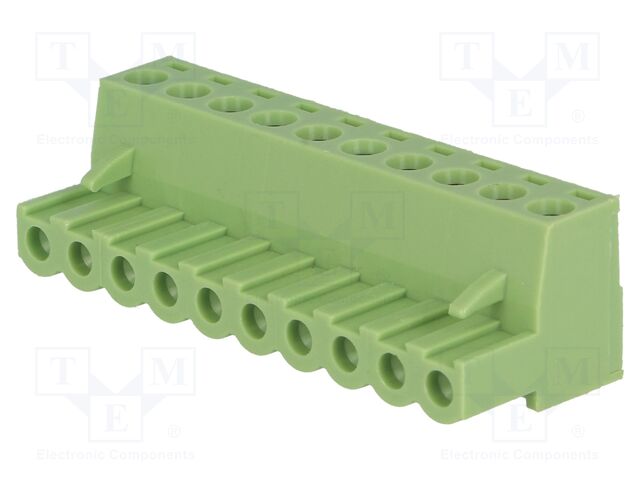

XINYA XY2500F-A(5.0)-10P | Pluggable terminal block; 5mm; ways: 10; straight; plug; female
XINYA XY2500F-A(5.0)-10P | Pluggable terminal block; 5mm; ways: 10; straight; plug; femal
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| Extra Product Name | XINYA XY2500F-A(5.0)-10P | Pluggable terminal block; 5mm; ways: 10; straight; plug; female |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 15e1dac6ebace964d603a0e48223945b. |
| jsonUrlData2 | b5ab00e8224f8f366f21 |
| keywords | XINYA, XY2500F-A(5.0)-10P, TBW-5.0-K-10P |
| MPN | XY2500F-A(5.0)-10P |
| qtyInStock | 4326 |
| SKU | TBW-5.0-K-10P |
| snippet | XINYA XY2500F-A(5.0)-10P | Pluggable terminal block; 5mm; ways: 10; straight; plug; femal |
| tierMinQty2, Number of ways, Number of terminals | 10 |
| tierMinQty3 | 50 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.21 |
| tierPrice2 | 1.08 |
| tierPrice3 | 0.95 |
| tierPrice4 | 0.86 |
| tierPrice5 | 0.78 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5mm |
| Spatial orientation | straight |
| Connector | plug |
| Kind of connector | female |
| Mechanical mounting | for cable |
| Electrical mounting | cage clamp, |
| Wire cross-section | 2.5mm |
| Wire size | 28AWG...12AWG |
| Colour | green |
| Rated voltage | 300V |
| Connector pinout layout | 1x10 |
| Current rating | 12A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | latch |
| Conform to the norm | UL |
| Contact plating | nickel plated |
| Operating temperature | -40...120?C |
| Contact material | brass |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBW-5.0-K-10P | 1 | 4326 | 1 | 1 @ $1.21, 10 @ $1.08, 50 @ $0.95, 100 @ $0.86, 500 @ $0.78 |
