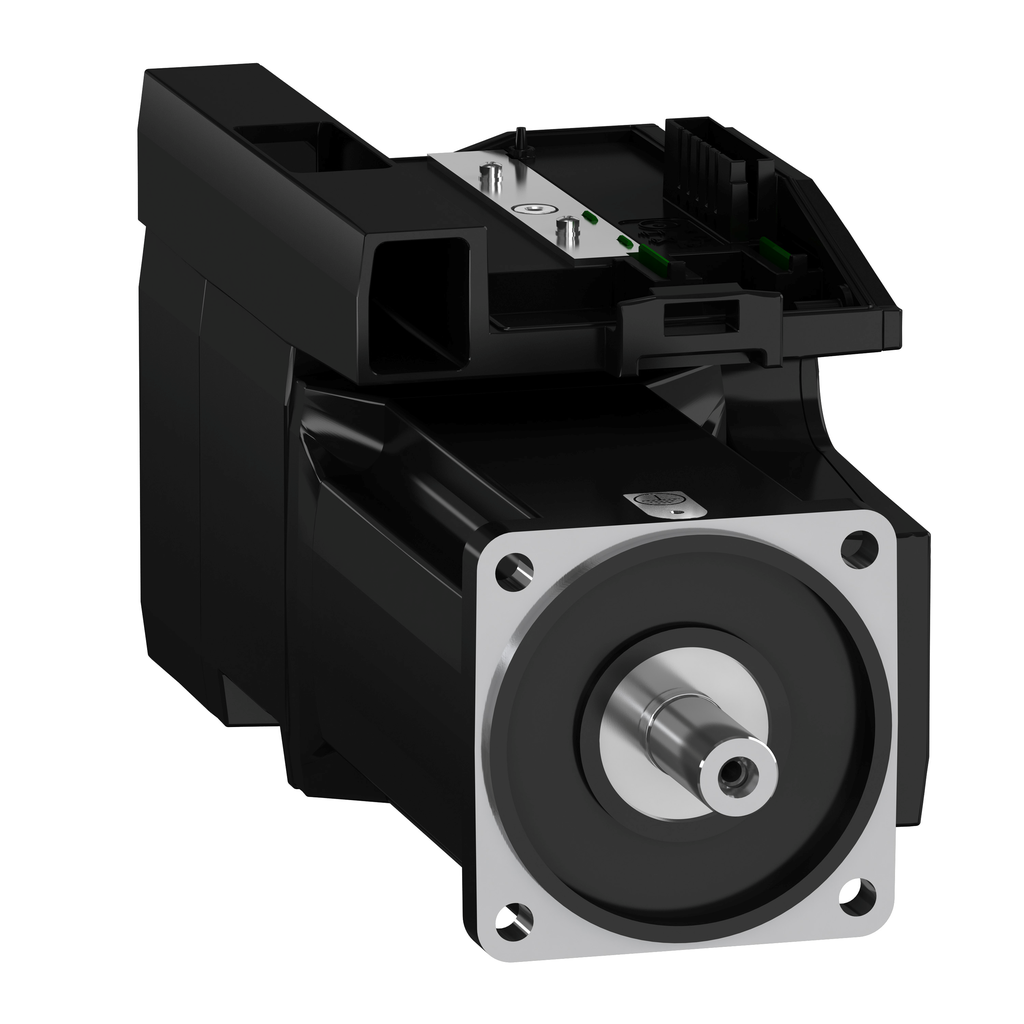

servo motor BMI 3-phase - untapped IP54 multiturn - 131072 p/t x 4096 t - brake | Mayer Electric

SQUARE D . SQDBMI1003P02F

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Nameservo motor BMI 3-phase - untapped IP54 multiturn - 131072 p/t x 4096 t - brake | Mayer Electric
UPC3606485377599
diameter, height230.0
height_AttribCircle Diameter Of The Mounting Holes
jsonUrlData/Product/SQUARE-D-servo-motor-BMI-3-phase-untapped-IP54-multiturn-131072-p-t-x-4096-t-brake-3606485377599
jsonUrlData27dab7376-0e0a-44da-b98a-aeea00552162
length338.0
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKUSQDBMI1003P02F
qtyInStock0
tierPrice12988.2
width3.5
width_AttribCentring Collar Depth
Product Or Component Typeservo motor with power stage
Range CompatibilityLexium 32i
Device Short NameBMI
Warranty18 months
Maximum Mechanical Speed6000 rpm
Output Current 3S Peak12 A 400 V 3 s
Stator Electrical Time Constant4.95 ms 20 ?C
Circle Diameter Of The Mounting Holes115-115 mm
Holding Torque9 N.m holding brake
Maximum Radial Force Fr1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm || 610 N 5000 rpm
Mounting Supportinternational standard flange
Number Of Motor Stacks3
Rotor Inertia10.3 kg.cm?
Number Of Motor Poles10
Back Emf Constant112 V/krpm 20 ?C
Maximum Axial Force Fa0.2 x Fr
Centring Collar Depth, Distance Shaft Shoulder-Flange3.5 mm
Holding Brakewith
Speed Feedback Resolution131072 points/turn x 4096 turns
Second Shaftwithout second shaft end
Product Compatibilitydrive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
Network Frequency Limits47.5-63 Hz
Shaft Length40 mm
Brake Pull-In Power8 W
Phasethree phase
Maximum Current Irms26.7 A 208 V, three phase || 26.7 A 400 V, three phase || 26.7 A 480 V, three phase
Length338 mm
Centring Collar Diameter95 mm
Stator Inductance11.43 mH 20 ?C
Motor Flange Size100 mm
Peak Stall Torque19.2 N.m 400 V three phase || 19.2 N.m 480 V three phase || 19.2 N.m 208 V three phase
Number Of Mounting Holes4
Shaft Diameter19 mm
Nominal Output Power1000 W 208 V three phase || 2000 W 400 V three phase || 2100 W 480 V three phase
[Us] Rated Supply Voltage208...480 V - 15...10 %
Supply Voltage Limits208-480 V
Mounting Holes Diameter9 mm
Type Of Coolingnatural convection
Shaft Enduntapped
Nominal Speed1500 rpm 208 V three phase || 3000 rpm 400 V three phase || 3700 rpm 480 V three phase
Electrical Connectionprinted circuit board connector
Feedback Typeabsolute multiturn SinCos Hiperface
Stator Resistance2.31 Ohm 20 ?C
Emc Filterintegrated
Continuous Stall Current4 A
Nominal Torque7.2 N.m 208 V three phase || 6.8 N.m 400 V three phase || 5.6 N.m 480 V three phase
Continuous Output Current4 A 8 kHz
Torque Constant1.7 N.m/A 20 ?C
Supply Frequency50/60 Hz - 5...5 %
Continuous Stall Torque8.5 N.m 208...480 V three phase
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP1312017EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1312017EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ip Degree Of Protectionshaft IP54 || housing IP65

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDBMI1003P02F111 @ $2988.20
