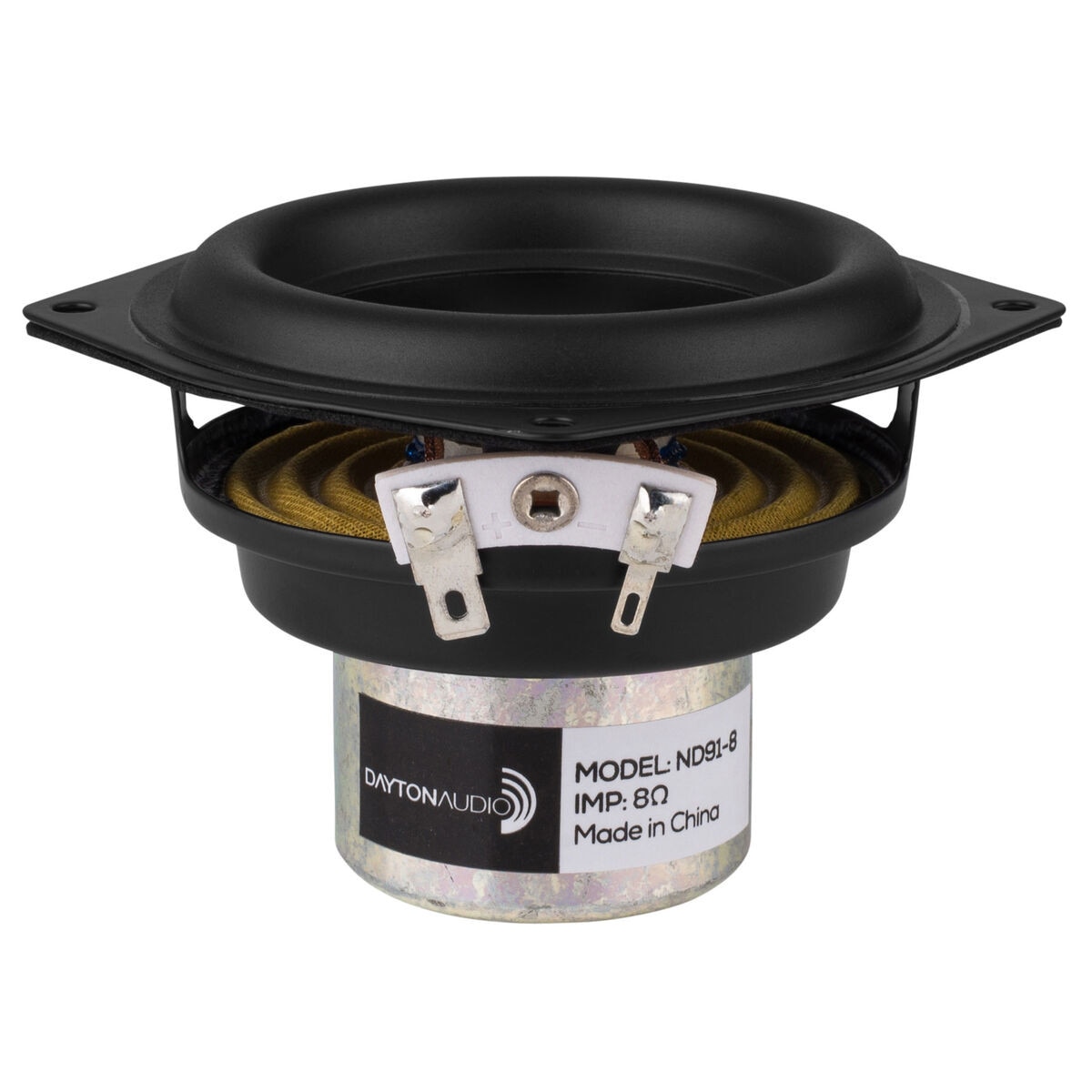

Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm

Dayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm. Part Number: 290-226 by Dayton Audio.

Dayton Audio . ND91-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm
UPC844632090455
Weight0.7
WeightUnitlbs
depth, length2.22
diameter, height, width3.5
height_Attrib, width_AttribNominal Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelND91-8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number290-226
snippetDayton Audio ND91-8 3-1/2" Aluminum Cone Full-Range Neo Driver 8 Ohm. Part Number: 290-226 by Dayton Audio.
tierMinQty2, # Mounting Holes4
tierPrice126.98
tierPrice224.28
Unit of MeasureEach
Nominal Diameter3-1/2"
Bolt Circle Diameter3.66
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8?
Frequency Response70 to 17,000Hz
Sensitivity82.1dB 2.83V/1m
Voice Coil Diameter1"
Resonant Frequency (Fs)70.7Hz
DC Resistance (Re)7.8?
Voice Coil Inductance (Le)1.24mH
Mechanical Q (Qms)4.29
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)0.05ft?
Mechanical Compliance of Suspension (Cms)1.05mm/N
BL Product (BL)5.63T?m
Diaphragm Mass Inc Airload (Mms)4.8g
Maximum Linear Excursion (Xmax)5.1mm
Surface Area of Cone (Sd)30.4cm?
Cone Material, Voice Coil Wire MaterialAluminum
Surround MaterialRubber
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter3.35"
Baffle Cutout Diameter3.01"
Depth2.22"
Sealed Volume0.25ft?
Sealed F3125Hz
Vented Volume0.1ft?
Vented F354Hz
