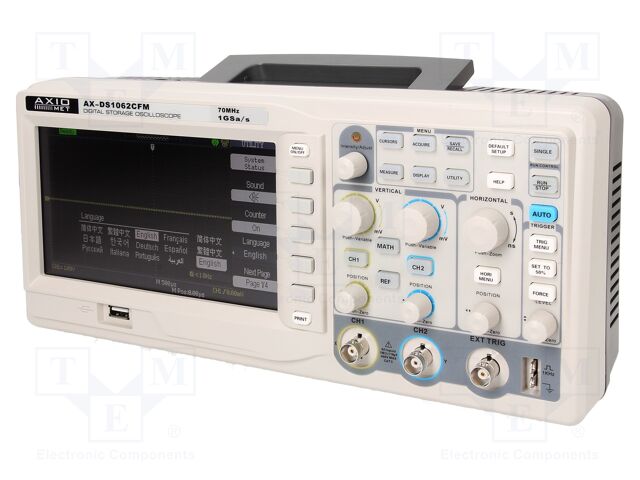

AXIOMET AX-DS1062CFM | Oscilloscope: digital; Ch: 2; 70MHz; 1Mpts/ch; colour,LCD 7"; 5.8ns
AXIOMET AX-DS1062CFM | Oscilloscope: digital; Ch: 2; 70MHz; 1Mpts/ch; colour,LCD 7"; 5.8n
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | AXIOMET |
|---|---|
| CategoryL1 | Workplace Equipment |
| CategoryL2 | Measuring Instruments |
| CategoryL3 | Oscilloscopes and Scopemeters |
| CategoryL4 | Digital Oscilloscopes |
| DimensionUnit | m |
| Extra Product Name | AXIOMET AX-DS1062CFM | Oscilloscope: digital; Ch: 2; 70MHz; 1Mpts/ch; colour,LCD 7"; 5.8ns |
| atoms, moq, multiple | 1 |
| jsonUrlData | 6d053d14a7b06b8280302a238ad2dc5d. |
| jsonUrlData2 | 7c5b8b07bed58d90db93 |
| keywords | AXIOMET, AX-DS1062CFM |
| length | 1.0 |
| length_Attrib | Memory record length |
| MPN, SKU | AX-DS1062CFM |
| qtyInStock | 0 |
| snippet | AXIOMET AX-DS1062CFM | Oscilloscope: digital; Ch: 2; 70MHz; 1Mpts/ch; colour,LCD 7"; 5.8n |
| Type of oscilloscope | digital |
| Number of channels | 2 |
| Band | 70MHz |
| Sampling | 1Gsps (in real time), |
| Memory record length | 1Mpts/ch |
| Kind of display used | colour, |
| Trigger modes | automatic, |
| Trigger | falling-edge, |
| Trigger source | CH1, |
| Time base | 5n...50s/div |
| Max input voltage | 400V |
| Vertical resolution | 8bit |
| Input coupling | AC, DC, GND |
| Trigger coupling | AC, |
| Horizontal accuracy | ?0.01% |
| Kind of output connector | USB A socket |
| Rise time | 5.8ns |
| Input impedance | 1M?/14pF |
| Input sensitivity | 2mV/div...5V/div |
| Plug variant | EU |
| Body dimensions | 399x110.5x148.5mm |
| Software | included |
| Measurement memory | 20 |
| Display resolution | 480x234 |
