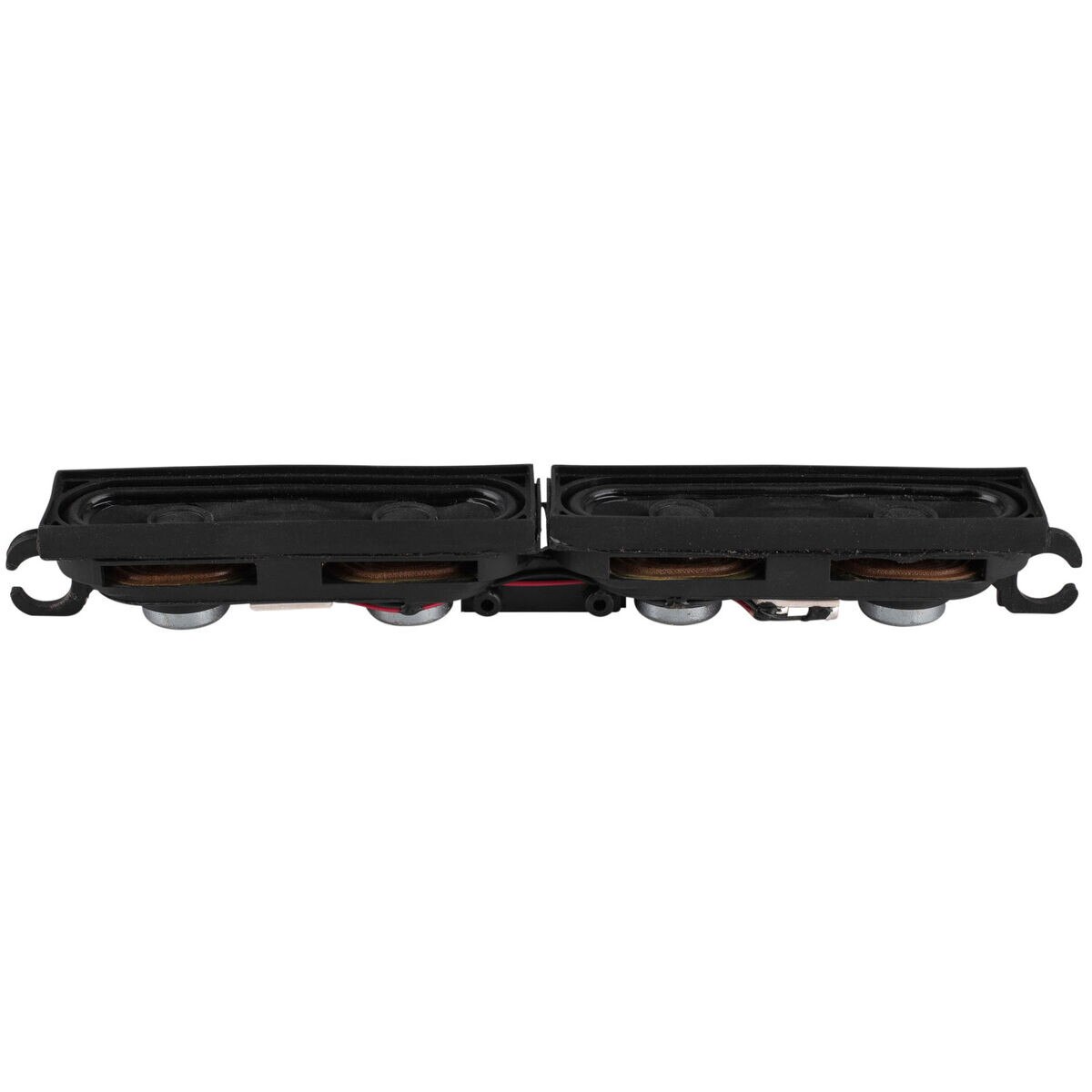

YDT322G-02 1" x 8" Dual Driver Paper Cone Full Range Speaker Assembly 6 Ohm

YDT322G-02 1" x 8" Dual Driver Paper Cone Full Range Speaker Assembly 6 Ohm. Part Number: 289-2292 by Factory Buyouts.

Factory Buyouts . YDT322G-02

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameYDT322G-02 1" x 8" Dual Driver Paper Cone Full Range Speaker Assembly 6 Ohm
UPC848864048680
Weight0.25
WeightUnitlbs
depth, length1.125
diameter, height, width8.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelYDT322G-02
qtyInStock0
SKU, Part Number289-2292
snippetYDT322G-02 1" x 8" Dual Driver Paper Cone Full Range Speaker Assembly 6 Ohm. Part Number: 289-2292 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 5"
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance6?
Frequency Response200 to 12,000Hz
Sensitivity82.2dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)281Hz
DC Resistance (Re)5.52?
Voice Coil Inductance (Le)0.12mH
Mechanical Q (Qms)3.49
Electromagnetic Q (Qes)4.32
Total Q (Qts)1.93
Compliance Equivalent Volume (Vas)0.007ft?
Mechanical Compliance of Suspension (Cms)0.132mm/N
BL Product (BL)2.33T?m
Surface Area of Cone (Sd)33.38cm?
Cone Material, Voice Coil FormerPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium
Overall Outside Diameter8" x 1"
Baffle Cutout Diameter7.75" x 0.875"
Depth1.125"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com289-229211
