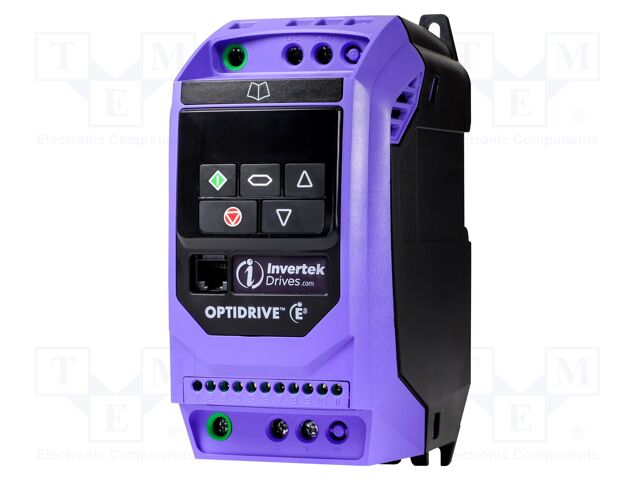

INVERTEK DRIVES ODE-3-120043-1F1X | Vector inverter; Max motor power: 0.75kW; Usup: 200?240VAC; IN: 4
INVERTEK DRIVES ODE-3-120043-1F1X | Vector inverter; Max motor power: 0.75kW; Usup: 200?240VAC; IN:
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INVERTEK DRIVES |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Motor Control |
| CategoryL4 | One Phase Inverters |
| Extra Product Name | INVERTEK DRIVES ODE-3-120043-1F1X | Vector inverter; Max motor power: 0.75kW; Usup: 200?240VAC; IN: 4 |
| atoms, moq, multiple, Number of analog inputs, Number of analog outputs | 1 |
| jsonUrlData | 63dfe5cee7b238b2e1a5c8bd19266dab. |
| jsonUrlData2 | 7c505cf449943a369176 |
| keywords | INVERTEK DRIVES, ODE-3-120043-1F1X, Automation, Regulation and Control, Motor Control, One Phase Inverters |
| MPN, SKU | ODE-3-120043-1F1X |
| qtyInStock | 0 |
| snippet | INVERTEK DRIVES ODE-3-120043-1F1X | Vector inverter; Max motor power: 0.75kW; Usup: 200?240VAC; IN: |
| Type of module | vector inverter |
| Max motor power | 0.75kW |
| Inverter output voltage | 3 x 230V AC |
| Input 1 properties | rotational speed setting with signal 0...10V, 4...20mA, 0...20mA |
| The programming method | keypad, |
| Electrical connection | screw terminals |
| Mounting | for DIN rail mounting, |
| Operating temperature | -10...50?C |
| Output frequency | 0...500Hz |
| Number of inputs | 4 |
| Starting/stopping time | 0.1...600s |
| Current rating | 4.3A |
| IP rating | IP66 |
| Number of outputs | 2 |
| Manufacturer series | Optidrive E3 |
| Driver features | integrated EMC filter |
| Voltage output | 0...10V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| ODE-3-120043-1F1X | 1 | 1 |
