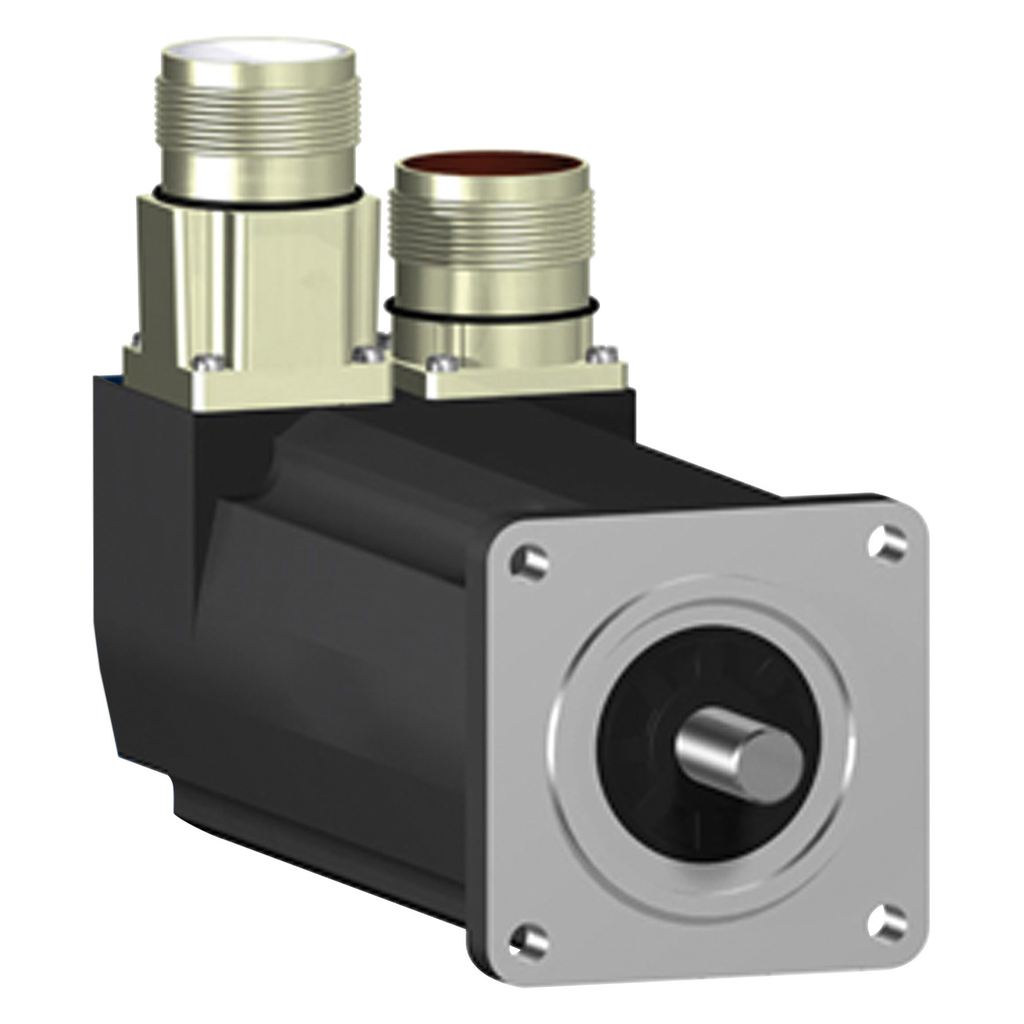

servo motor SH3 055 1,05Nm,key,single,brake,str.conn,IP54/IP65,9k RPM | Mayer Electric

SQUARE D . SQDSH30553P11F1000

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Nameservo motor SH3 055 1,05Nm,key,single,brake,str.conn,IP54/IP65,9k RPM | Mayer Electric
UPC3606481971357
Weight1.9
WeightUnitkg
Weight_AttribNet Weight
height2.0
height_AttribCentring Collar Depth
jsonUrlData/Product/SQUARE-D-servo-motor-SH3-055-1-05Nm-key-single-brake-str-conn-IP54-IP65-9k-RPM-3606481971357
jsonUrlData2fcd805a3-1b67-4256-b991-aeea0057a191
length203.0
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKUSQDSH30553P11F1000
qtyInStock0
tierPrice12329.22
width3.0
width_AttribKey Width
Product Or Component Typeservo motor
Range CompatibilityPacDrive 3
Device Short NameSH3.....P
Warranty18 months
Circle Diameter Of The Mounting Holes63 mm
Continuous Power680 W
Maximum Mechanical Speed9000 rpm
Holding Torque0.8 N.m
Maximum Radial Force Fr190 N 8000 rpm || 390 N 1000 rpm || 310 N 2000 rpm || 270 N 3000 rpm || 240 N 4000 rpm || 230 N 5000 rpm || 210 N 6000 rpm || 200 N 7000 rpm
Encoder Typeabsolute single turn SinCos Hiperface
Mounting Supportinternational standard flange
Rotor Inertia0.155 kg.cm?
Number Of Motor Poles3
Back Emf Constant41 V/krpm 20 ?C
Maximum Axial Force Fa40 N
Centring Collar Depth2 mm
Holding Brakewith
Speed Feedback Resolution128 periods
Shaft Length20 mm
Phasethree phase
Length203 mm
Net Weight1.9 kg
Maximum Current Irms6.5 A
Centring Collar Diameter40 mm
Stator Inductance37.98 mH
Motor Flange Size55 mm
[Us] Rated Supply Voltage115...480 V
Peak Stall Torque3.5 N.m 115...480 V three phase
Number Of Mounting Holes4
Shaft Diameter9 mm
Key Width3 mm
Nominal Output Power240 W 115 V single phase || 460 W 230 V single phase || 880 W 400 V three phase || 970 W 480 V three phase
Mounting Holes Diameter5.5 mm
Type Of Coolingnatural convection
Ip Degree Of Protectionshaft bushing without shaft seal ring IP54 EN/IEC 60034-5 || motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5
Shaft Endparallel key
Nominal Speed4000 rpm 230 V single phase || 9000 rpm 480 V three phase || 2000 rpm 115 V single phase || 8000 rpm 400 V three phase
Electrical Connectionstraight connector
Stator Resistance10.4 Ohm
Continuous Stall Current1.7 A
Nominal Torque1.13 N.m 115 V single phase || 1.1 N.m 230 V single phase || 0.81 N.m 400 V three phase || 0.81 N.m 480 V three phase
Torque Constant0.62 N.m/A 120 ?C
Continuous Stall Torque1.05 N.m 115...480 V three phase
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP111049EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDSH30553P11F1000111 @ $2329.22
