OD8038-24LB Orion Fans | Fans, Thermal Management | DigiKey

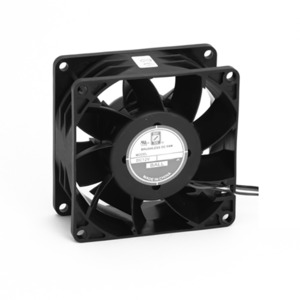

Fan Tubeaxial 24VDC Square - 80.5mm L x 80.5mm H Ball 38.0 CFM (1.06m?/min) 2 Wire Leads
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Orion Fans |
|---|---|
| Extra Product Name | OD8038-24LB Orion Fans | Fans, Thermal Management | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | OD8038-24LB |
| qtyInStock | 0 |
| SKU | OD8038-24LB-ND |
| Part Status | Active |
| Voltage - Rated | 24VDC |
| Size / Dimension | Square - 80.5mm L x 80.5mm H |
| Width | 38.00mm |
| Air Flow | 38.0 CFM (1.06m?/min) |
| Static Pressure | 0.120 in H2O (29.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features, Ingress Protection, Weight, Voltage Range | - |
| Noise | 32.0dB |
| RPM | 2500 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158?F (-10 ~ 70?C) |
| Approval Agency | cURus, TUV |
| Current Rating (Amps) | 0.080A |
| Material - Frame, Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Lifetime @ Temp | 50000 Hrs @ 40?C |
| Power (Watts) | 3.4 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | OD8038-24LB-ND | 1 | 1 | ||
| Hotenda | H1906627 | 1 | 1 | ||
| Digi-Key | 2707760 | 1 | 1 | 520 @ $15.36 | |
 Newark | 36AJ7798 | 500 | 500 | 1 @ $25.86, 1000 @ $23.71 | |
| 10142049 | 1 | 1 | 1 @ $21.40 |
