FREE 2-day Shipping: Maximum bass output For those who like it loud, Alpine salutes you! Their legendary R-Seriessubwoofers are made to bring

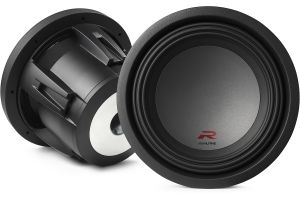

The Alpine R-W10D4 R-Series 10-Inch Dual 4 Ohm Subwoofer features a parabolic cone structure with pulp/kevlar cone and PP/mica/talc dust cap, high amplitude multi-roll surrounds, and 111oz magnet weight. It has a power range of 300W-750W RMS and power handling of 750W RMS / 2250W peak. The subwoofer measures 10 inches in size and has a frequency response of 26Hz-200Hz, with a voice coil diameter of 65.5mm / 2.6 inches.
FREE 2-day Shipping: Maximum bass output For those who like it loud, Alpine salutes you! Their legendary R-Seriessubwoofers are made to bring
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand, Creator, Label, Publisher, Studio | Alpine |
|---|---|
| moq, multiple, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Model, ModelNumber, Model_name, Model_number | R-W10D4 |
| qtyInStock | 0 |
| snippet | FREE 2-day Shipping: Maximum bass output For those who like it loud, Alpine salutes you! Their legendary R-Seriessubwoofers are made to bring |
| ASIN, Asin | B06XGCH16M B079SKWVS4 |
| AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, Skip_offer, TradeInEligible | False |
| Amount | 224.95 239.99 299.95 |
| Assembly_instructions | Require Assembly |
| Audio_output_mode | Surround |
| Binding | Automotive Electronics |
| Bullet_point | High Amplitude Multi-Roll surrounds (HAMR) Magnet Weight: 111oz. Voice Coil Diameter: 65.5mm / 2.6". Parabolic Cone Structure with Pulp/Kevlar Cone & PP/Mica/Talc Dust Cap. Power Range: 300W-750W RMS. Power Handling: 750W RMS / 2250W Peak. Sealed Box Net Internal Volume: 0.4-0.85 ft^3 Ported Box Net Internal Volume: 0.75-1.3 ft^3 |
| Chemical_names | formaldehyde_gas |
| ClassificationId | 1294866011 |
| Color | Black |
| Compatibility_options, Compatible_devices | Car / Truck |
| Compatible_with_vehicle_type | Car |
| Compliance_type | chemical |
| Connectivity_technology | Coaxial |
| Controller_type, Power_source_type | Corded Electric |
| Currency, CurrencyCode | USD |
| Customer_package_type | Standard Packaging |
| Depth | 7.87 |
| Diameter, Speaker_size | 10.0 |
| DisplayName | Component Subwoofers |
| DisplaySize | 10 10.0 |
| Height | 0.00 14.00 20.0 2000 33.78 500 7.87 7.87401574 7.874015740 75 8.3858267631 8.661417314 8.6614173140 |
| Identifier | 04958043888146 0793276040527 4958043888146 793276040527 |
| IdentifierType | EAN GTIN UPC |
| Impedance, Item_display_weight | 4.0 |
| Included_components | (1) 10" Dual 4-ohm voice coil subwoofer, Plastic trim ring, (2) 4.5" jumper wires (each wire has a single banana connector on both ends), Owner's Manual |
| IsBrandQuery, Is_electric | True |
| Is_waterproof | FALSE |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Alpine R-W10D4 R-Series 10-Inch Dual 4 Ohm Subwoofer 2017 Model |
| Item_package_weight | 10.160000000000002 |
| Item_shape | Round |
| Item_type_keyword | vehicle-subwoofers |
| Item_weight | 22.5 |
| Keyword | 10-4 |
| Length | 0.00 10.00 13.29921258486 14.6850393551 20.0 22.0 7.87401574 7.874015740 |
| Link | https://m.media-amazon.com/images/I/4149b6VAQlL._SL75_.jpg https://m.media-amazon.com/images/I/4149b6VAQlL.jpg https://m.media-amazon.com/images/I/41L9aoXgvKL._SL75_.jpg https://m.media-amazon.com/images/I/41L9aoXgvKL.jpg https://m.media-amazon.com/images/I/41RQKgLVSqL._SL75_.jpg https://m.media-amazon.com/images/I/41RQKgLVSqL.jpg https://m.media-amazon.com/images/I/41SWUyWArtL._SL75_.jpg https://m.media-amazon.com/images/I/41SWUyWArtL.jpg https://m.media-amazon.com/images/I/71A6oroWUaL.jpg https://m.media-amazon.com/images/I/71Jd41pnOIL.jpg https://m.media-amazon.com/images/I/71QVzyIqJKL.jpg https://m.media-amazon.com/images/I/81BWESGAVpL.jpg https://www.amazon.com/gp/bestsellers/electronics https://www.amazon.com/gp/bestsellers/electronics/1294866011 |
| List_price | 299.95 |
| Mounting_type | Flush Mount |
| Mpns, PartNumber | R-W10D4 RW10D4 |
| Package_level | unit |
| Part_number, StrippedMpns | RW10D4 |
| ProductCategoryId | 1294866011 biss_display_on_website ce_display_on_website |
| ProductGroup | BISS BISS Basic |
| ProductType, ProductTypeName | SPEAKERS |
| ProductTypeSubcategory | 26301050 |
| Product_description | Alpine R-W10D2 10-Inch Dual 4 Ohm Subwoofer Features: High Amplitude Multi-Roll surrounds (HAMR) Parabolic Cone Structure with Pulp/Kevlar Cone & PP/Mica/Talc Dust Cap. Concealed Mount Gasket. Reinforced Cone Neck & Spider Joint. Progressive Spider with Reinforced Layer Tinsel Leads. Integrated 8 AWG Push Terminals with VC Configuration Jumpers. High-Excursion Overhung Voice Coil Configuration. High-Grade Strontium Ferrite Segmented Assembly. 65mm Voice Coil with High Temp 4-Layer DVC Winding on AL former. Airflow Optimized Dual Flare Pole Vent. Cast Aluminum Frame with Integral Shorting Sleeve. Compound Radius Curve Extended Pole Geometry. Airflow Management & Heat Transfer System. Specifications: Size: 10 Inches. Frequency Response: 26Hz-200Hz. Power Range: 300W-750W RMS. Power Handling: 750W RMS / 2250W Peak. Magnet Weight: 111oz. Voice Coil Diameter: 65.5mm / 2.6". Sensitivity (SPL): 82.4dB. DC Resistance (Re): 3.6 Ohm + 3.6 Ohm. Inductance (Le): 4.46 mH. Free Air Resonance (Fs): 31 Hz. Equivalent Stiffness (Vas): 20 L. Mechanical Q (Qms): 7.71. Electrical Q (Qes): 0.59. Total Q (Qts): 0.55.Cone Area (Sd): 333cm^2. Linear Excursion (Xmax): 20 mm. Mounting Depth: 5-7/8 Inch Mechanical Travel (Xmech): 70 mm. Box Specifications: Sealed Box Net Internal Volume: 0.4-0.85 ft^3 Ported Box Net Internal Volume: 0.75-1.3 ft^3 Ported Box Tuning Range: 35-39 Hz |
| Product_site_launch_date | 2017-03-07T22:39:40.411Z |
| Rank | 112407 1184 147 186339 207 226355 27626 301 323 37849 44982 456 46210 50423 519 537 601 64 64986 65315 664 673 70266 721 81693 87558 909 91146 |
| Recommended_uses_for_product | Volume |
| Registration_status | not_capable_emitting_rf_energy |
| ReleaseDate | 2020-02-24 |
| Role | Publisher |
| Size | 10 Inch 10.0 |
| Sku | 10D4 ALPINE GSXFD10D24 ALPINE GXT100 ALPINE INDUSTRIES 463-3 ATS-10D-106-C2-R1 ATS-10D-109-C2-R1 DIXON 6901-10-12 E12R-10R NICHIFU R 2-10 R-12-10 R10-E6X2-115V S16F-10R STRATEGIC SOURCING CX-4G15-450 |
| Speaker_type | Subwoofer |
| Speakers_maximum_output_power | 2250.0 |
| Special_feature | NEXT-GEN SOUND PERFORMANCE, NEW MOTOR STRUCTURE, ADDITIONAL RELIABILITY, FLEXIBLE APPLICATION, INCREASED ACCURACY |
| Supplier_declared_dg_hz_regulation | not_applicable |
| Surround_sound_channel_configuration | 3.0 |
| Title | Alpine R-W10D4, R Series Dual 4 Ohm Voice Coil 2250 Watts Subwoofer, 10" Alpine Type R 10 Inch 2250 Watt Max 4 Ohm Round Car Audio Subwoofer | R-W10D4 Car Component Subwoofers Electronics |
| Total_harmonic_distortion | 82.3 |
| Type | Count ean gtin upc |
| URL | http://ecx.images-amazon.com/images/I/41TJAAs5bTL._SL75_.jpg http://ecx.images-amazon.com/images/I/512odkGaRYL._SL75_.jpg https://m.media-amazon.com/images/I/41TJAAs5bTL._SL75_.jpg https://m.media-amazon.com/images/I/41YtL-gIebL._SL75_.jpg |
| Unit | centimeters decibels inches kilograms ohm pounds watts |
| Unit_count | 1.0 |
| Units | inches pixels pounds |
| Variant | MAIN PT01 PT02 PT03 |
| Vehicle_speaker_size | 10 |
| Wattage | 750.0 |
| WebsiteDisplayGroup | automotive_display_on_website ce_display_on_website |
| WebsiteDisplayGroupName | Automotive Parts and Accessories |
| Weight | 0.000625 22.0462262000 22.398965819200004 22.39896581920000440924524 22.5 22.65 22.65029279788 8.81849048 |
| Width | 0.00 12.992125971 12.9921259710 13.7007873876 14.00 20.0 2000 33.0 500 7.87 7.87401574 7.874015740 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Crutchfield | 500RW10D4 | 1 | 1 | ||
| onlinecarstereo.com | 50235 | 1 | 1 | 1 @ $299.95 | |
| R-W10D4 | 1 | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Alpine Type R 10 Inch 2250 Watt Max 4 Ohm Round Car Audio Subwoofer | R-W10D4
Brand: Alpine
Listing
| Binding | Electronics |
|---|---|
| Product group | BISS |
| Product type | SPEAKERS |
| Model | R-W10D4 |
| Part number | R-W10D4 |
| Label | Alpine |
| Manufacturer | Alpine |
Alpine R-W10D4 R-Series 10-Inch Dual 4 Ohm Subwoofer 2017 Model
Brand: Alpine
Alpine R-W10D2 10-Inch Dual 4 Ohm Subwoofer Features: High Amplitude Multi-Roll surrounds (HAMR) Parabolic Cone Structure with Pulp/Kevlar Cone & PP/Mica/Talc Dust Cap. Concealed Mount Gasket. Reinforced Cone Neck & Spider Joint. Progressive Spider with Reinforced Layer Tinsel Leads. Integrated 8 AWG Push Terminals with VC Configuration Jumpers. High-Excursion Overhung Voice Coil Configuration. High-Grade Strontium Ferrite Segmented Assembly. 65mm Voice Coil with High Temp 4-Layer DVC Winding on AL former. Airflow Optimized Dual Flare Pole Vent. Cast Aluminum Frame with Integral Shorting Sleeve. Compound Radius Curve Extended Pole Geometry. Airflow Management & Heat Transfer System. Specifications: Size: 10 Inches. Frequency Response: 26Hz-200Hz. Power Range: 300W-750W RMS. Power Handling: 750W RMS / 2250W Peak. Magnet Weight: 111oz. Voice Coil Diameter: 65.5mm / 2.6". Sensitivity (SPL): 82.4dB. DC Resistance (Re): 3.6 Ohm + 3.6 Ohm. Inductance (Le): 4.46 mH. Free Air Resonance (Fs): 31 Hz. Equivalent Stiffness (Vas): 20 L. Mechanical Q (Qms): 7.71. Electrical Q (Qes): 0.59. Total Q (Qts): 0.55.Cone Area (Sd): 333cm^2. Linear Excursion (Xmax): 20 mm. Mounting Depth: 5-7/8 Inch Mechanical Travel (Xmech): 70 mm. Box Specifications: Sealed Box Net Internal Volume: 0.4-0.85 ft^3 Ported Box Net Internal Volume: 0.75-1.3 ft^3 Ported Box Tuning Range: 35-39 Hz
Details
- Power Range: 300W-750W RMS. Power Handling: 750W RMS / 2250W Peak.
- Parabolic Cone Structure with Pulp/Kevlar Cone & PP/Mica/Talc Dust Cap.
- High Amplitude Multi-Roll surrounds (HAMR)
- Magnet Weight: 111oz. Voice Coil Diameter: 65.5mm / 2.6".
- Sealed Box Net Internal Volume: 0.4-0.85 ft^3 Ported Box Net Internal Volume: 0.75-1.3 ft^3
Listing
| Binding | Automotive |
|---|---|
| Product group | BISS |
| Product type | SPEAKERS |
| Model | R-W10D4 |
| Part number | RW10D4 |
| Items per pack | 1 |
| Label | Alpine |
| Manufacturer | Alpine |
