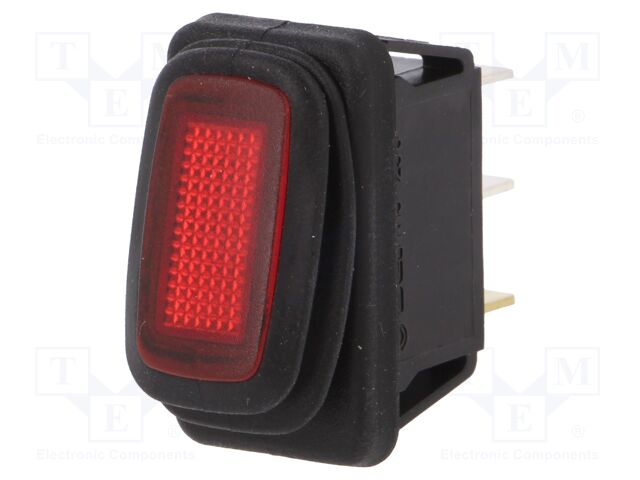

SCI R13-238B8-01-R-N2 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/250VAC; red; IP65; neon lamp; 230V
SCI R13-238B8-01-R-N2 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/250VAC; red; IP65; neon lamp; 230
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Rocker Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-238B8-01-R-N2 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/250VAC; red; IP65; neon lamp; 230V |
| atoms, moq, multiple, tierMinQty1 | 1 |
| diameter, length, width | 29.4 |
| jsonUrlData | 185a63c0c383a7c3f0bb967d2bd01431. |
| jsonUrlData2 | a60de4ee0b3e7a77f6ca |
| keywords | SCI, R13-238B8-01-R-N2, R13238B801R |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN | R13-238B8-01-R-N2 |
| qtyInStock | 151 |
| SKU | R13238B801R |
| snippet | SCI R13-238B8-01-R-N2 | ROCKER; SPST; Pos: 2; ON-OFF; 16A/250VAC; red; IP65; neon lamp; 230 |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 200 |
| tierPrice1 | 2.59 |
| tierPrice2 | 2.36 |
| tierPrice3 | 2.11 |
| tierPrice4 | 1.88 |
| tierPrice5 | 1.63 |
| Type of switch | ROCKER |
| Contacts configuration | SPST |
| Number of positions, Stable positions number | 2 |
| Switching method | ON-OFF |
| AC contacts rating @R | 16A / 250V AC |
| Key button colour, Backlight colour | red |
| IP rating | IP65 |
| Illumination | neon lamp |
| Illumination voltage | 230V |
| Max contact resistance: | 50m? |
| Body colour | black |
| Flammability rating | UL94V-2 |
| Operating temperature | -20...85?C |
| Leads | connectors 6,3x0,8mm |
| Panel thickness | max. 4.5mm |
| Mounting hole diameter | 29.4x13.8mm |
| Button marking | blank |
| Shape | rectangular |
| Body dimensions | 31.5x18.5x21.1mm |
| Manufacturer series | R13-238-AC |
| Dielectric strength | 1.5kV AC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| R13238B801R | 1 | 151 | 1 | 1 @ $2.59, 5 @ $2.36, 20 @ $2.11, 100 @ $1.88, 200 @ $1.63 |
