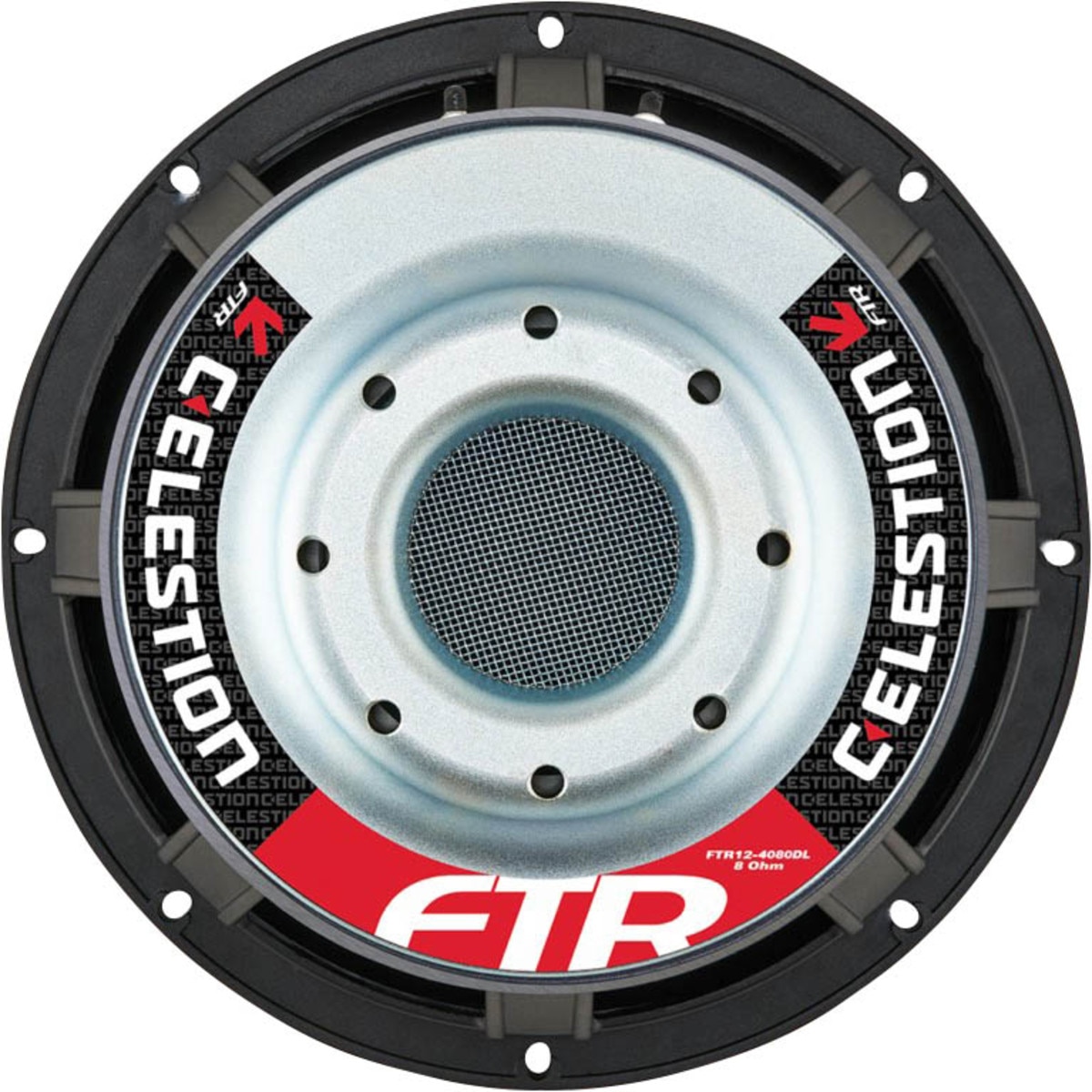

Celestion FTR12-4080DL 12" Professional Speaker 700W

Celestion FTR12-4080DL 12" Professional Speaker 700W - Part Number: 294-1972 by Celestion.

Celestion . FTR12-4080DL

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCelestion
DimensionUnitinch
Extra Product NameCelestion FTR12-4080DL 12" Professional Speaker 700W
UPC739894637758
Weight25.2
WeightUnitlbs
depth, length6.7
diameter, height, width12.3
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFTR12-4080DL
qtyInStock-2
qtySourceFieldMap
SKU, Part Number294-1972
snippetCelestion FTR12-4080DL 12" Professional Speaker 700W - Part Number: 294-1972 by Celestion.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8?
Frequency Response20 to 300Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)28.9Hz
DC Resistance (Re)6.24?
Voice Coil Inductance (Le)2.07mH
Mechanical Q (Qms)2.466
Electromagnetic Q (Qes)0.345
Total Q (Qts)0.303
Compliance Equivalent Volume (Vas)2.42ft?
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)24.05T?m
Diaphragm Mass Inc Airload (Mms)176.07g
Maximum Linear Excursion (Xmax)11.25mm
Surface Area of Cone (Sd)530.93cm?
Cone MaterialPaper / Glass Fiber
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.3"
Depth6.7"
# Mounting Holes8
Sealed Volume0.6ft?
Sealed F375.5Hz
Vented Volume2.25ft?
Vented F330.5Hz
