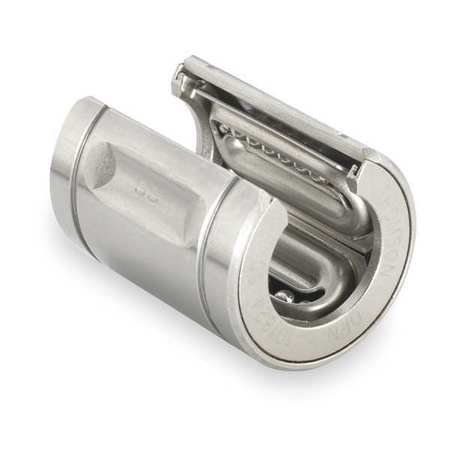

Ball Bushing, Open, Bore Dia 0.500 In, Inside Dia Tolerance +/- .001, Outside Dia 0.875 In, Required Housing Bore Dia 0.875 In, Slot Width 0.310 In, Slot Angle (Degrees) 50, Between Grooves 0.967 In, Length 1.250 In, Dynamic Load Capacity 60 Lb, Temp Range 0 - 300 F, Stainless Steel- 440C Material, For Use With Thomson Shafting Features Dynamic Load Capacity (Lb.): 60 Includes: - Item: Ball Bushing Bearing Length (In.): 1.250 Length (mm): - Material: Stainless Steel Outside Dia.: 0.8750" Required Housing Bore Dia. (In.): 0.875 Static Load Capacity (Lb.): - Temp. Range (F): 0 - 300 Type: Open Dimension H2: - Dimension K: - Dimension X: - Dimension Y: - Dimension B: - Dimension C1: 0.967" Dimension C2: 0.046 Load Capacity: - Seal: - Slot Width (In.): 0.310 Agency Compliance: - Accelerated Speed: 450 Feet/Second Self-Alignment: - Steady State Speed: 10 Feet/Second Max. Pv: - Slot Width (mm): - Outside Dia. Tolerance: - Inside Dia. Tolerance: +/- .001 Dimension C: 1.250 Dimension E: 0.310 Dimension F: - Dimension T: 0.500 Between Grooves (mm): 0.967" Dimension B2: - Dimension G: - Dimension H3: - Dimension HA: - Dimension HB: - Dimension J: - Dimension JA: - Dimension JB: - Dimension XZ: - Dimension YZ: - Retention Hole Dia. (mm): - Retention Hole Location: - Slot Angle (Degrees): 50 Dimension d: - Required Housing Bore Dia. (mm): - Bore Dia.: 0.500"

Ball Bushing, Open, Bore Dia 0.500 In, Inside Dia Tolerance +/- .001, Outside Dia 0.875 In, Required Housing Bore Dia 0.875 In, Slot Width 0.310 In, Slot Angle (Degrees) 50, Between Grooves 0.967 In, Length 1.250 In, Dynamic Load Capacity 60 Lb, Temp Range 0 - 300 F, Stainless Steel- 440C Material, For Use With Thomson Shafting Features Dynamic Load Capacity (Lb.): 60 Includes: - Item: Ball Bushing Bearing Length (In.): 1.250 Length (mm): - Material: Stainless Steel Outside Dia.: 0.8750"
