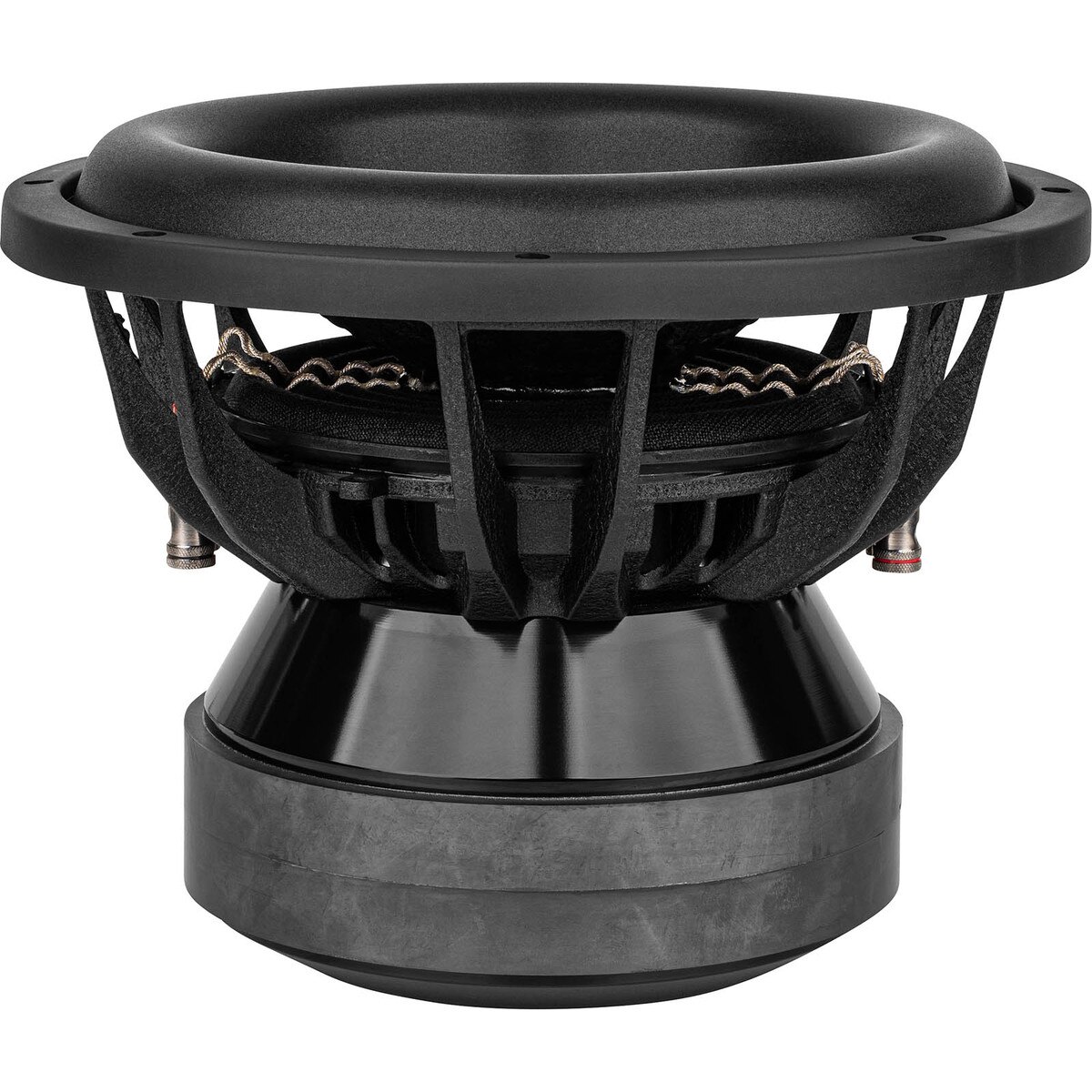

Adire Audio ADBX12D4 BrahmaX 12" XBL DVC Subwoofer

Adire Audio . ADBX12D4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandAdire Audio
DimensionUnitinch
Extra Product NameAdire Audio ADBX12D4 BrahmaX 12" XBL DVC Subwoofer
UPC753459520475
Weight50
WeightUnitlbs
diameter, length, width13.0
length_Attrib, width_AttribOverall Outside Diameter
moq, multiple1
MPN, ModelADBX12D4
qtyInStockBack-Ordered
SKU, Part Number294-122
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter12
Power Handling (RMS)1500 Watts
Power Handling (MAX)3000 Watts
Impedance4?
Sensitivity85.51dB 2.83V/1m
Voice Coil Diameter3"
Resonant Frequency (Fs)30.9417Hz
DC Resistance (Re)6.81?
Voice Coil Inductance (Le)1.9766mH
Mechanical Q (Qms)4.7
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)1.397ft?
Mechanical Compliance of Suspension (Cms)0.12mm/N
BL Product (BL)24.19T?m
Diaphragm Mass Inc Airload (Mms)219.07g
Maximum Linear Excursion (Xmax)32mm
Surface Area of Cone (Sd)481.68cm?
Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum
Overall Outside Diameter13"
Baffle Cutout Diameter11.375"
# Mounting Holes8

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com294-1221Back-Ordered1
