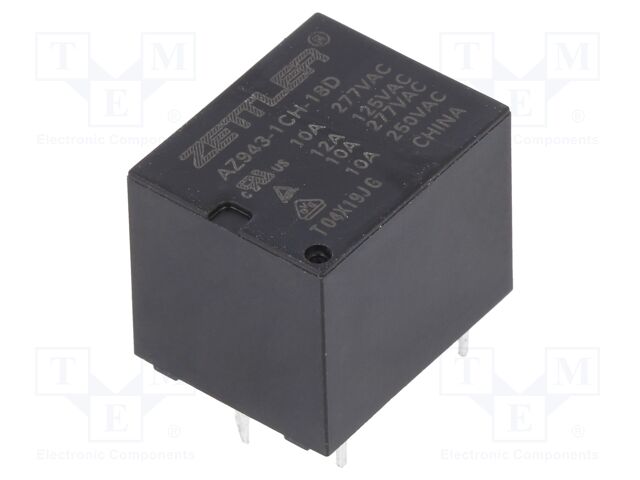

ZETTLER AZ943-1CH-18D | Relay: electromagnetic; SPDT; Ucoil: 18VDC; 15A; 10A/277VAC; PCB
ZETTLER AZ943-1CH-18D | Relay: electromagnetic; SPDT; Ucoil: 18VDC; 15A; 10A/277VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ943-1CH-18D | Relay: electromagnetic; SPDT; Ucoil: 18VDC; 15A; 10A/277VAC; PCB |
| atoms | 1 |
| jsonUrlData | dfe041f156e163f2529162d5d814ed71. |
| jsonUrlData2 | 426bcf28d9bb9cf46b0f |
| keywords | ZETTLER, AZ943-1CH-18D, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| moq, multiple, tierMinQty1 | 3 |
| MPN, SKU | AZ943-1CH-18D |
| qtyInStock | 988 |
| snippet | ZETTLER AZ943-1CH-18D | Relay: electromagnetic; SPDT; Ucoil: 18VDC; 15A; 10A/277VAC; PC |
| tierMinQty2 | 6 |
| tierMinQty3 | 24 |
| tierMinQty4 | 120 |
| tierMinQty5 | 504 |
| tierPrice1 | 0.83 |
| tierPrice2 | 0.708 |
| tierPrice3 | 0.655 |
| tierPrice4 | 0.614 |
| tierPrice5 | 0.546 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 18V DC |
| Contact current max | 15A |
| AC contacts rating @R | 10A / 277V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 900? |
| Operate time | 10ms |
| Body dimensions | 19x15.3x15.7mm |
| Release time | 5ms |
| Coil power consumption | 203mW |
| IP rating | IP64 |
| Operating temperature | -40...70?C |
| Relay series | AZ943 |
| Contact resistance | 100m? |
| Contact material | AgSnO |
| Terminal pitch | 2mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ943-1CH-18D | 3 | 988 | 3 | 3 @ $0.83, 6 @ $0.71, 24 @ $0.66, 120 @ $0.61, 504 @ $0.55 |
