FXUWB10.07.0100C Taoglas Limited | RF/IF and RFID | DigiKey

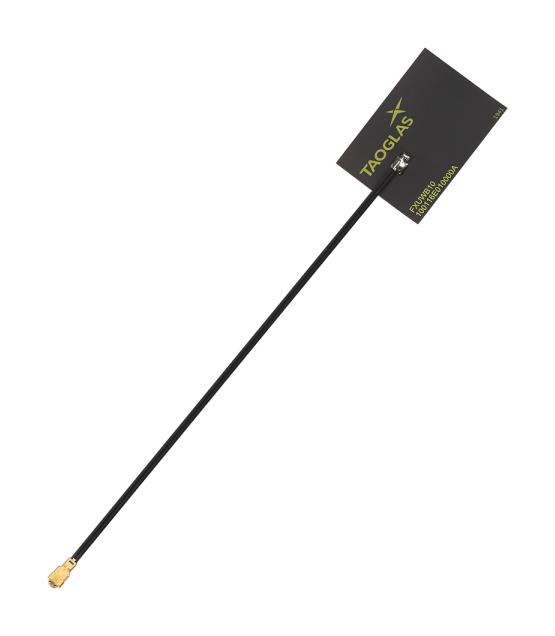

4.05GHz, 7.1GHz, 9.25GHz UWB FlexPIFA RF Antenna 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz 4.5dBi, 6.2dBi, 7.1dBi U.FL (UMCC), IPEX MHF1 Surface Mount
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Taoglas Limited |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | FXUWB10.07.0100C Taoglas Limited | RF/IF and RFID | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| height | 0.004 |
| height_Attrib | Height (Max) |
| MPN | FXUWB10.07.0100C |
| packaging, Package | Bag |
| qtyInStock | 3119 |
| SKU | 8275281 |
| snippet | 4.05GHz, 7.1GHz, 9.25GHz UWB FlexPIFA RF Antenna 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz 4.5dBi, 6.2dBi, 7.1dBi U.FL (UMCC), IPEX MHF1 Surface Mount |
| tierMinQty2 | 100 |
| tierMinQty3 | 500 |
| tierMinQty4 | 1,000 |
| tierPrice1 | 3.08000 |
| tierPrice2 | 2.91000 |
| tierPrice3 | 2.85002 |
| tierPrice4 | 2.69990 |
| Category | RF/IF and RFID |
| Series, RF Family/Standard, Return Loss, Ingress Protection | - |
| Product Status | Active |
| Frequency Group | SHF (f > 4GHz) |
| Frequency (Center/Band) | 4.05GHz, 7.1GHz, 9.25GHz |
| Frequency Range | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz |
| Antenna Type | FlexPIFA |
| Number of Bands | 3 |
| VSWR | 2 |
| Gain | 4.5dBi, 6.2dBi, 7.1dBi |
| Power - Max | 10 W |
| Features | Cable - 100mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Mounting Type | Surface Mount |
| Height (Max) | 0.004" (0.10mm) |
| Applications | UWB |
| Base Product Number | FXUWB10 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 8275281 | 1 | 3119 | 1 | 1 @ $3.08, 100 @ $2.91, 500 @ $2.85, 1000 @ $2.70 |
 Newark | 36AJ9309 | 1 | 1 | 1 @ $3.39, 10 @ $3.22, 25 @ $3.17, 50 @ $3.13, 100 @ $3.08 | |
| Newark | 09AK3686 | 1 | 1 | 1 @ $5.95, 10 @ $5.15, 25 @ $4.51, 50 @ $4.23, 100 @ $3.66, 250 @ $3.08, 500 @ $2.98 | |
| Zoro | G106113229 | 1 | 1 | 1 @ $4.84 |
