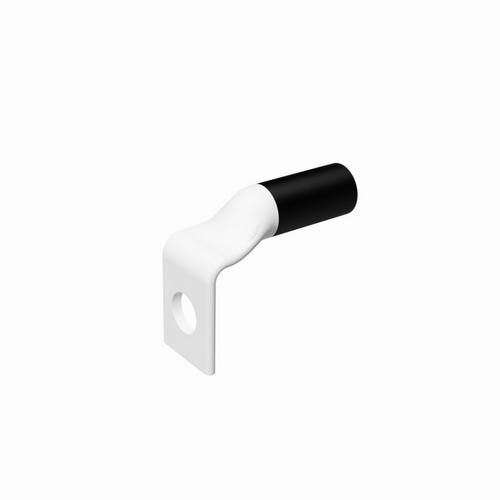

Burndy . YA26L290

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
DimensionUnitmm
diameter, height14.224
height_AttribDimension - Outside Diameter inch
length24.0
length_AttribDimension - L Length Overall mm
moq, multiple, Physical Attribute - Number of Holes1
MPN, SKUYA26L290
qtyInStock0
snippetBurndy 50237M Copper Compression Lug, 1 Hole, 2/0 AWG YA26L290. ✅$30 OFF Orders over $999 ✅. Save Now! ☎ (800) 884-5767 Mon-Fri 8:00 AM - 5:00 PM ET or order online 24/7
width21.081999999999997
width_AttribDimension - Pad Width inch
Color CodeBlack
Connector TypeTerminal
Die Index13
Feature - Barrel StyleChamfered
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
PlatedY
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Dimension - B Length fraction15/16 in
Dimension - B Length inch0.94 in
Dimension - Bolt Hole Size inch0.27 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch1/4
Dimension - D inch0.58 in
Dimension - Hole Size mm7 mm
Dimension - L Length Overall mm24 mm
Dimension - Length Overall inch0.96 in
Dimension - N inch0.25 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Strip Length inch1 in
Dimension - Z inch0.33 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range125 (61) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range2/0 AWG
Certification - CSA Approved, Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s), Standards - Industry Standards MetUL467
Standards - RoHS Compliance StatusCM
UL ListedYes

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MegadepotYA26L29011
usmegastore.comYA26L2901-211 @ $14.01
Graybar95007464111 @ $19.95
Platt.com209956111
GalcoYA26L290-BURN1001001 @ $22.47
