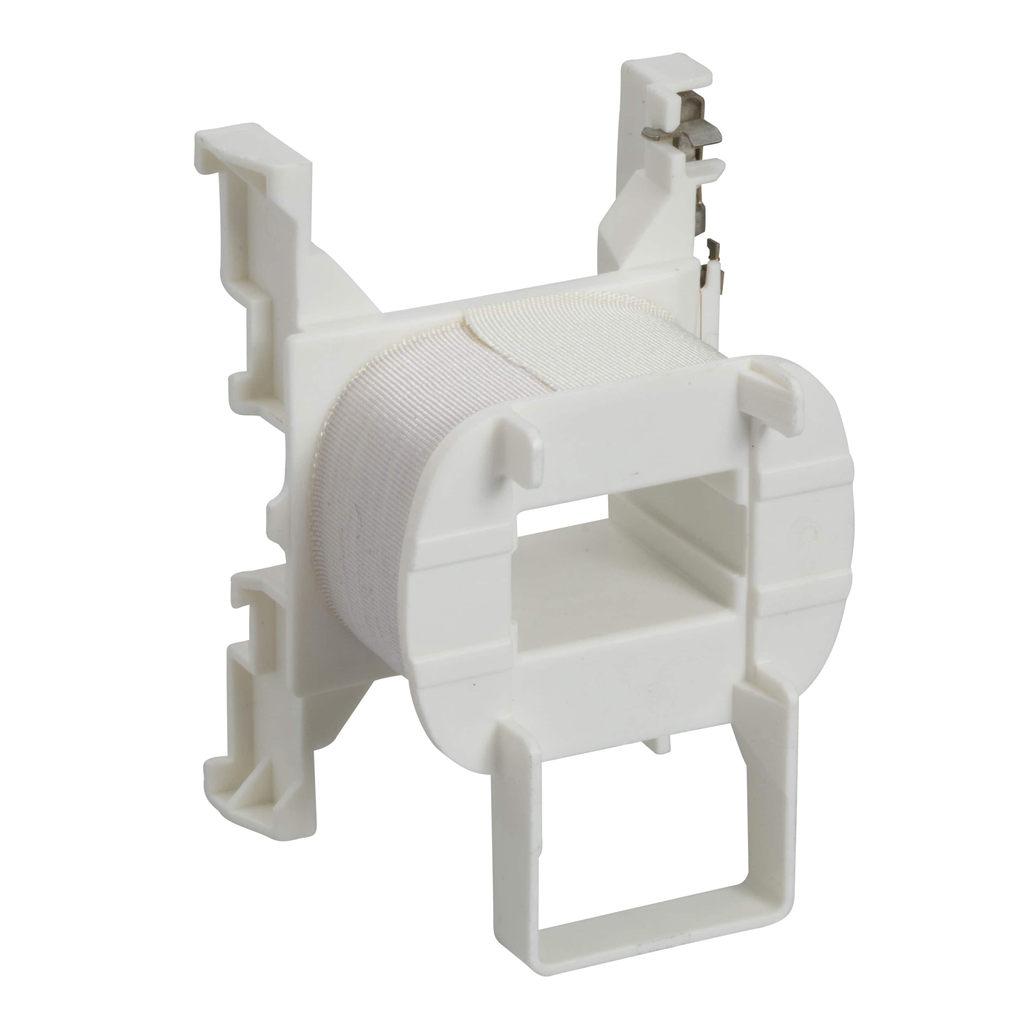

TeSys Deca - contactor coil - LXD1 - 220 V AC 50/60 Hz for 9? 38 A contactor | Mayer Electric

Mayer Electric Supply . LXD1M7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameTeSys Deca - contactor coil - LXD1 - 220 V AC 50/60 Hz for 9? 38 A contactor | Mayer Electric
UPC785901467892
Weight0.07
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-D-contactor-coil-LXD1-220-V-AC-50-60-Hz-for-9-38-A-contactor-785901467892
jsonUrlData29df2d655-6da2-449e-8366-abd2006277b0
moq, multiple, tierMinQty11
MPNLXD1M7
qtyInStock0
SKUSQDLXD1M7
tierPrice136.99
Average Resistance515.4 Ohm 20 ?C
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
Control Circuit TypeAC 50/60 Hz
Product Or Component Typecontactor coil
RangeTeSys
Inductance Of Closed Circuit18 H
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability9 Mcycles
Product CompatibilityCAD || LC1D09...D38 || LC1DT20...DT40
Device Short NameLXD1
Warranty18 months
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 50/60 Hz 60 ?C) || operational 0.8...1.1 Uc 50 Hz 60 ?C) || operational 0.85...1.1 Uc 60 Hz 60 ?C)
Inrush Power In Va70-70 VA 60 Hz 0.75 20 ?C) || 70-70 VA 50 Hz 0.75 20 ?C)
Coil Technologywithout built-in suppressor module
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz 0.3 20 ?C) || 7-7 VA 50 Hz 0.3 20 ?C)
Heat Dissipation2-3 W 50/60 Hz
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP060301EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI100405
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation-5-60 ?C
Net Weight0.07 kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLXD1M7111 @ $36.99
