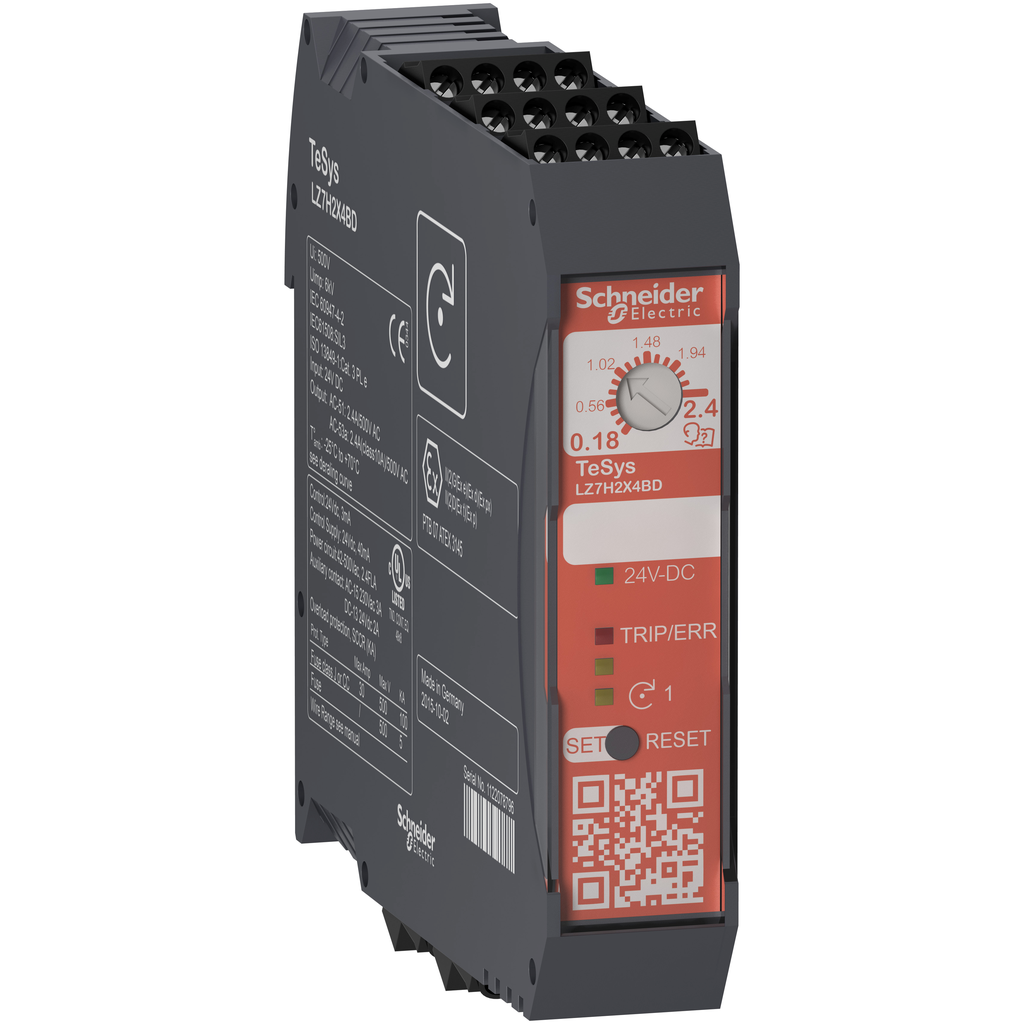

Starter TeSys Hybrid Safe-Torque-Off 0,75kW-400V control 24VDC | Mayer Electric

Mayer Electric Supply . LZ7H2X4BD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameStarter TeSys Hybrid Safe-Torque-Off 0,75kW-400V control 24VDC | Mayer Electric
UPC785901473879
Weight212
WeightUnitg
Weight_AttribNet Weight
depth, length114.5
height99.0
height_AttribHeight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Starter-TeSys-H-Safe-Torque-Off-0-75kW-400V-control-24VDC-785901473879
jsonUrlData2d9559823-baf5-4f37-87db-abd200627914
length_AttribDepth
moq, multiple, tierMinQty11
MPNLZ7H2X4BD
qtyInStock0
SKUSQDLZ7H2X4BD
tierPrice1350.93
width22.5
width_AttribWidth
Motor Starter Typedirect on line
[Uc] Control Circuit Voltage24 V DC
[Ue] Rated Operational Voltage500 V AC
[Ie] Rated Operational Current2.4 A 500 V AC-51 || 2.4 A 500 V AC-53A || 2.4 A 500 V AC-51 mounting side by side || 2.4 A 500 V AC-53A mounting side by side
Thermal Protection Adjustment Range0.18-2.4 A
Poles Description3P
Safety Reliability DataMTTFd = 517 years stop function || SFF = 99 % stop function || SFF = 99 % motor protection || MTTFd = 447 years motor protection || PFHd = 2.40E-9 1/h stop function
Product Or Component Typeultra-compact starter
Product NameTeSys Hybrid
Thermal Overload Classclass 10A IEC 60947-4-2
Maximum Horse Power Rating0.5 hp 200 V AC || 0.5 hp 230 V AC || 1 hp 460 V AC
Motor Power Kw0.37 kW 220 V AC 0.65 || 0.37 kW 230 V AC 0.65 || 0.75 kW 380 V AC 0.65 || 0.75 kW 400 V AC 0.65 || 0.75 kW 415 V AC 0.65 || 0.75 kW 440 V AC 0.65 || 1.1 kW 500 V AC 0.65
Device Short NameLZ7H
RangeTeSys
Safety LevelSIL 3 IEC 61508-1 stop function || PL = e ISO 13849-1 stop function || SIL 2 IEC 61508-1 motor protection
[Ui] Rated Insulation Voltage500 V AC 50/60 Hz
Height99 mm
Mounting Modeby clips
Maximum Operating Rate120 cyc/mn AC-51 50 % || 6 cyc/mn AC-53A 50 %
Auxiliary Contact Composition1 C/O fault signalling
Resetmanual || electrical reset
StandardsIEC 60947-4-2 || UL 60947-4-1
Mounting SupportDIN rail
Pollution Degree2
Control Circuit Voltage Limits19.2...30 V DC
CertificationsCE || cULus || ATEX as associated device for motor protection in zones 1 and 21
Width22.5 mm
Tightening Torque0.5-0.6 N.m flat ? 2.5 mm 3 mm
Depth114.5 mm
Electrical Durability30 Mcycles
Net Weight212 g
[Uimp] Rated Impulse Withstand Voltage6 kV
Connections - Terminalsscrew clamp terminals 1 0.2-2.5 mm? rigid || screw clamp terminals 1 0.25-2.5 mm? flexible - with cable end || screw clamp terminals 1 0.2-2.5 mm? flexible - without cable end
China Rohs RegulationX
Circularity ProfileENVEOLI1509013EN
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1509013EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Operation-25-70 ?C without derating
Ambient Air Temperature For Storage-40-80 ?C
Protective TreatmentTC
Ip Degree Of ProtectionIP20

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLZ7H2X4BD111 @ $350.93
